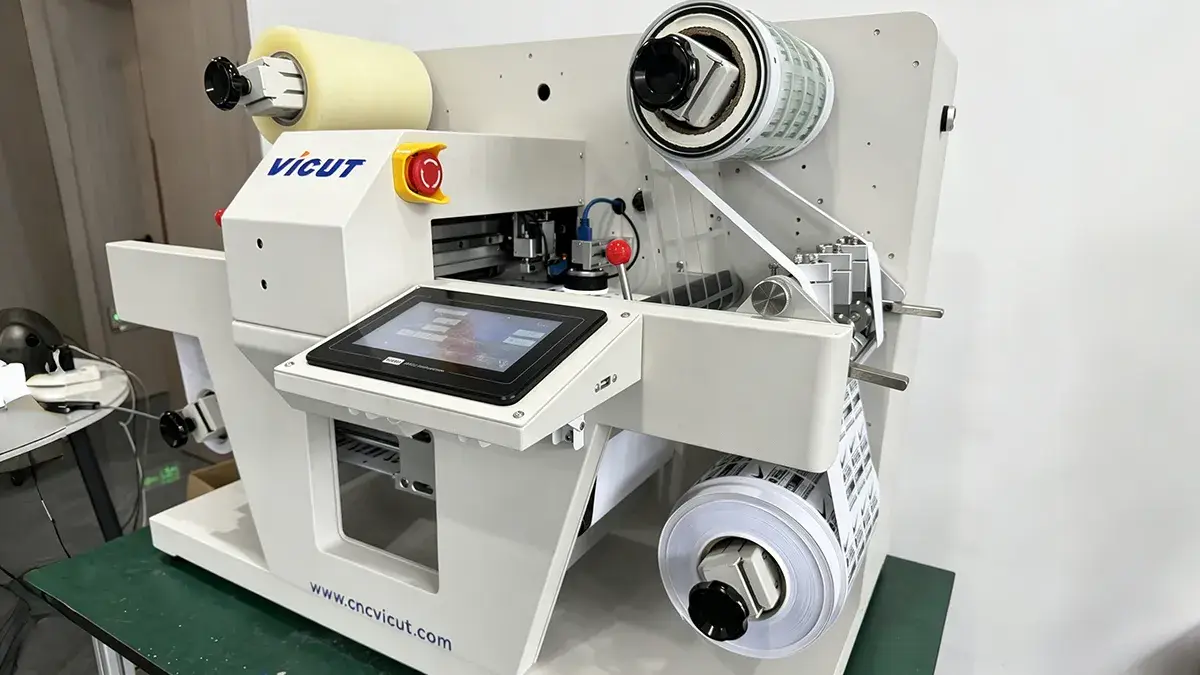

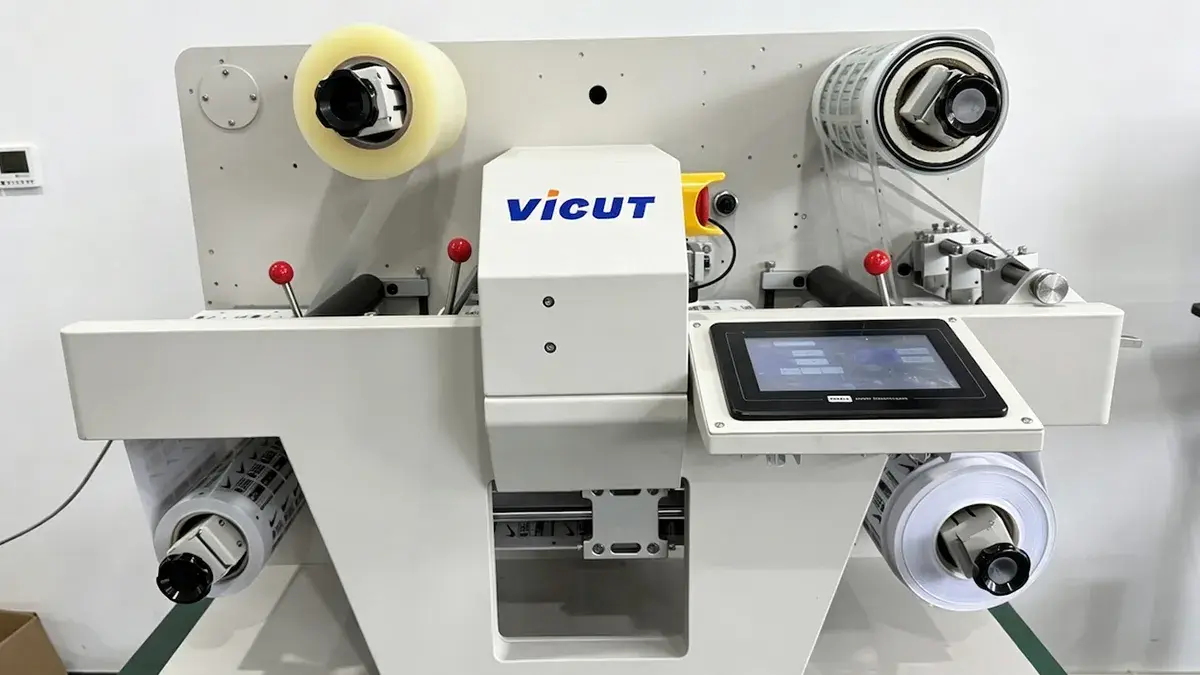

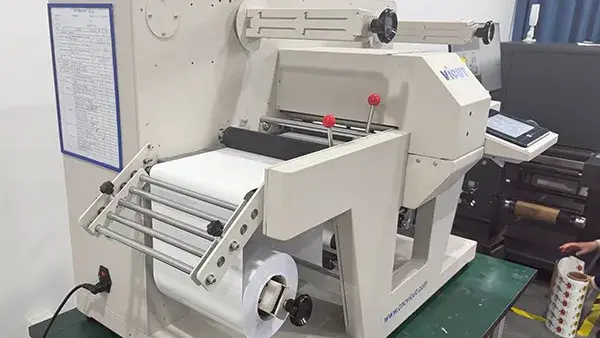

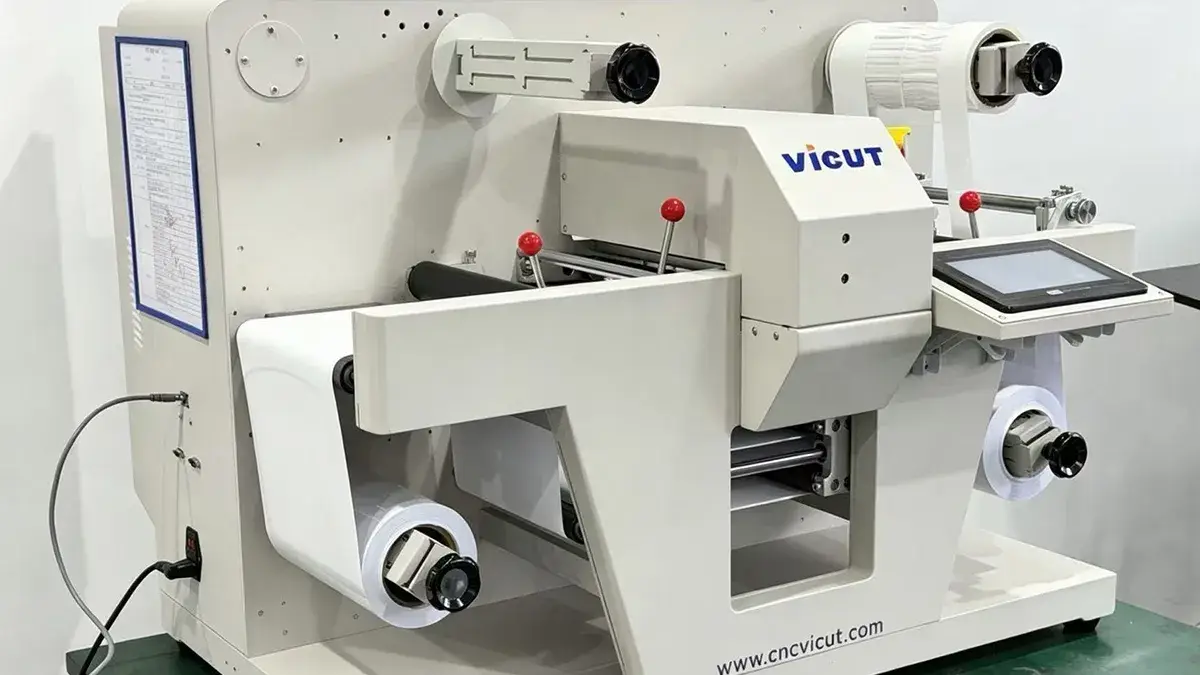

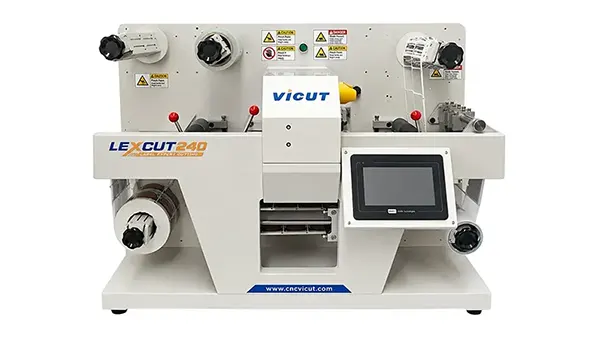

LEXCUT240 Desktop Roll-to-Roll Label Cutter

The roll-to-roll label cutter helps label producers, print shops, and in-house packaging teams handle small-batch and diversified label jobs faster, with less manual setup and greater production flexibility. With dual cutting heads, automatic job switching, and automatic head distance adjustment, the compact A4 roll-to-roll finisher helps operators complete more label orders with a smoother workflow.

For businesses managing frequent design changes, short runs, or custom label requests, this high-speed label cutting solution improves production flexibility while keeping operation simple. The automatic gap adjustment function reduces setup time and makes the die-cutting workflow easier to control, helping users move from file preparation to finished labels more efficiently.

Request a Quote
Watch Videos
Applications
  • Small-Volume on-Demand Label Production

    Suitable for short-run orders, custom label jobs, sample labels, and flexible daily production.

  • Diversified Label Finishing

    Helps users manage different label shapes, sizes, and job files with automatic job switching.

  • Common Label Applications

    Suitable for blank labels, ink labels, chemical labels, beverage labels, bottled water labels, chili sauce labels, coffee labels, cosmetic labels, home appliance labels, toiletries labels, gum labels, wine labels, and more.

  • Compatible Materials

    Works with self-adhesive stickers, paper, PP, BOPP, PET, PVC, and other roll label materials.

  • Ideal Users

    A practical choice for small and medium label producers, print shops, packaging businesses, and manufacturers handling on-demand product labels.

  • Applications
  • Applications
  • Applications
  • Applications
Technical Parameters
Cutting Technology Digital blade die-cutting
Cut Mode Roll-to-roll (fly-cutting)
Max. Roll Diameter Ø 290 mm
Max. Die-cutting Speed 8 m/min (7 × 15 cm rectangle)
Die-cutting Precision ±0.1 mm (repeatability)
Cutting Media Width 80–240 mm
Max. Label Width 230 mm
Max. Label Length 300 mm
Tracking Method CCD camera / blank
Min. Distance From Mark to Edge 2 mm
Min. Distance Between Jobs 2 mm
No. of Cutting Heads 2 Units
Laminating Width 225 mm
Film Roll Diameter Ø 230 mm
Max. Waste Roll Diameter Ø 300 mm
Slitting Speed Synchronized with cutting speed
Slitting Width 10–230 mm
Slitting Precision ±0.1 mm
No. of Slitting Blades 4 Standard (expandable up to 8)
No. of Rewinder 1 Unit (3’’ core diameter)
Machine Dimensions 91 × 63 × 74 cm (L × W × H)
Weight (G.W. / N.W.) 233 kg / 150 kg
Working Voltage 100–240 VAC, 50–60 Hz, 1 kW
Data Interface USB2.0, Ethernet 10/100Base-T, GPIO
Software VICUT minicut
File Format PLT, PDF
Die-cutting Blades Tungsten steel blades
Slitting Blades Rotary circular blades
Marking Sensing Method Single or dual mark sensing
Other Functions and Devices Auto-adjust head distance
Auto job switching
Auto-set blade entry point
Waste removal
Optional Printer connection
Flat base
Laminating liner system
Product Details
    • Dual Cutting Heads with Automatic Distance Adjustment
      Dual Cutting Heads with Automatic Distance Adjustment

      The dual-head structure allows faster label cutting while automatic head distance adjustment reduces manual setup, making short-run and multi-shape label jobs easier to manage.

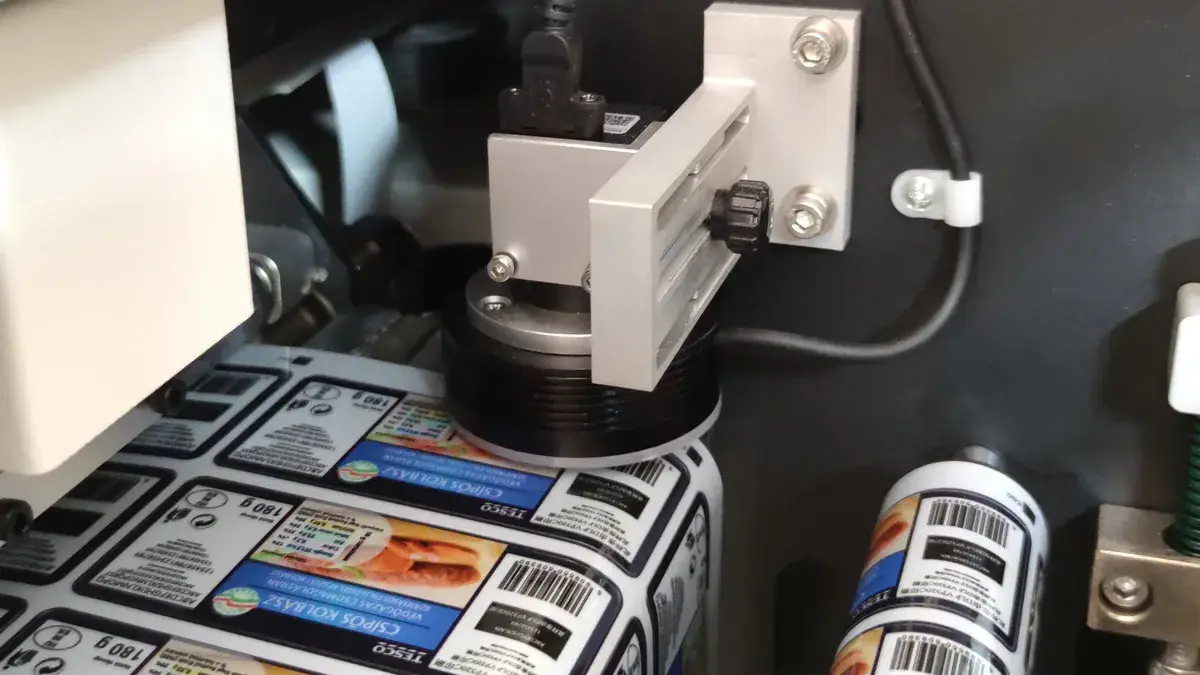

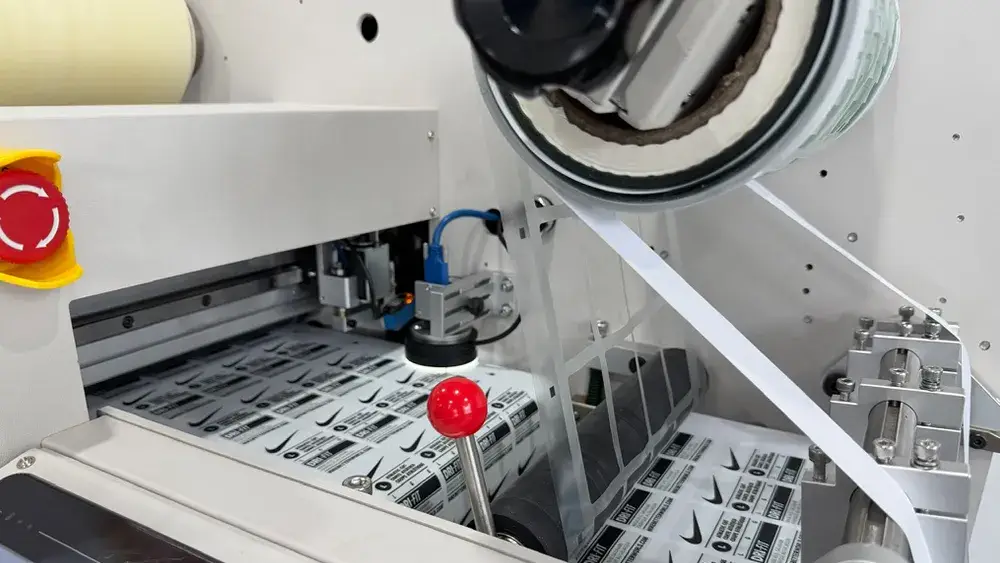

    • CCD Camera Digital Cutting Positioning System
      CCD Camera Digital Cutting Positioning System

      The CCD camera positioning system reads marks for accurate digital cutting, helping operators achieve cleaner contour cutting on printed labels.

    • User-Friendly Touch Screen Panel
      User-Friendly Touch Screen Panel

      The touch screen panel makes daily operation more direct and easier to learn, allowing operators to adjust settings with less training time.

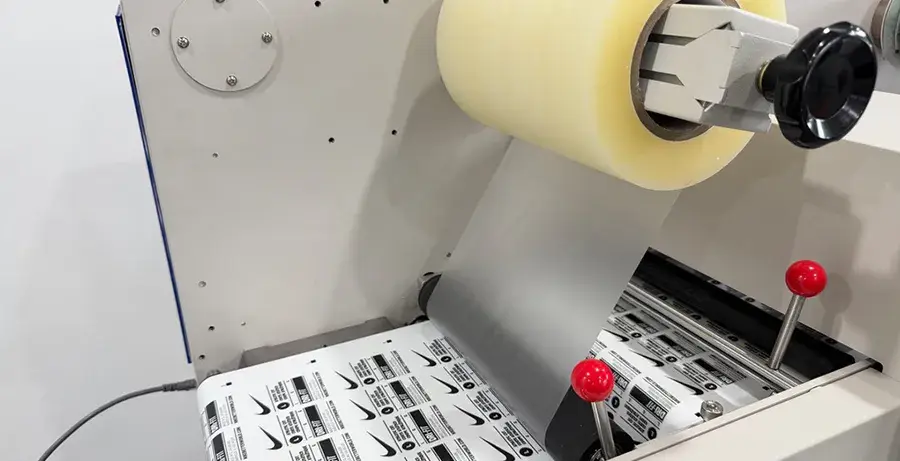

    • Automatic Cold Lamination Before Die Cutting
      Automatic Cold Lamination Before Die Cutting

      Automatic cold lamination protects printed labels before cutting, improving surface durability and adding a more professional finish to label rolls.

    • Automatic Waste Removal and Tension System
      Automatic Waste Removal and Tension System

      The waste removal and tension system keeps the material running smoothly while removing unwanted matrix, reducing manual handling during production.

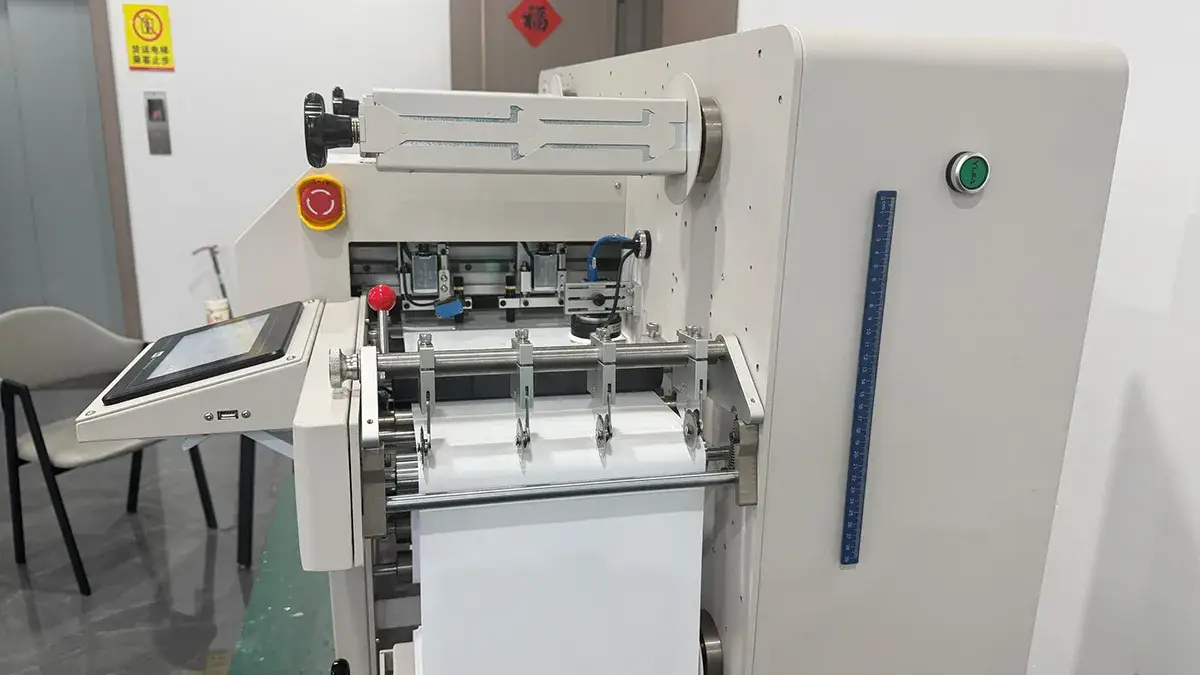

    • Automatic Slitting System
      Automatic Slitting System

      The automatic slitting system cuts finished labels into required roll widths, helping users prepare cleaner, ready-to-use label rolls after die cutting.

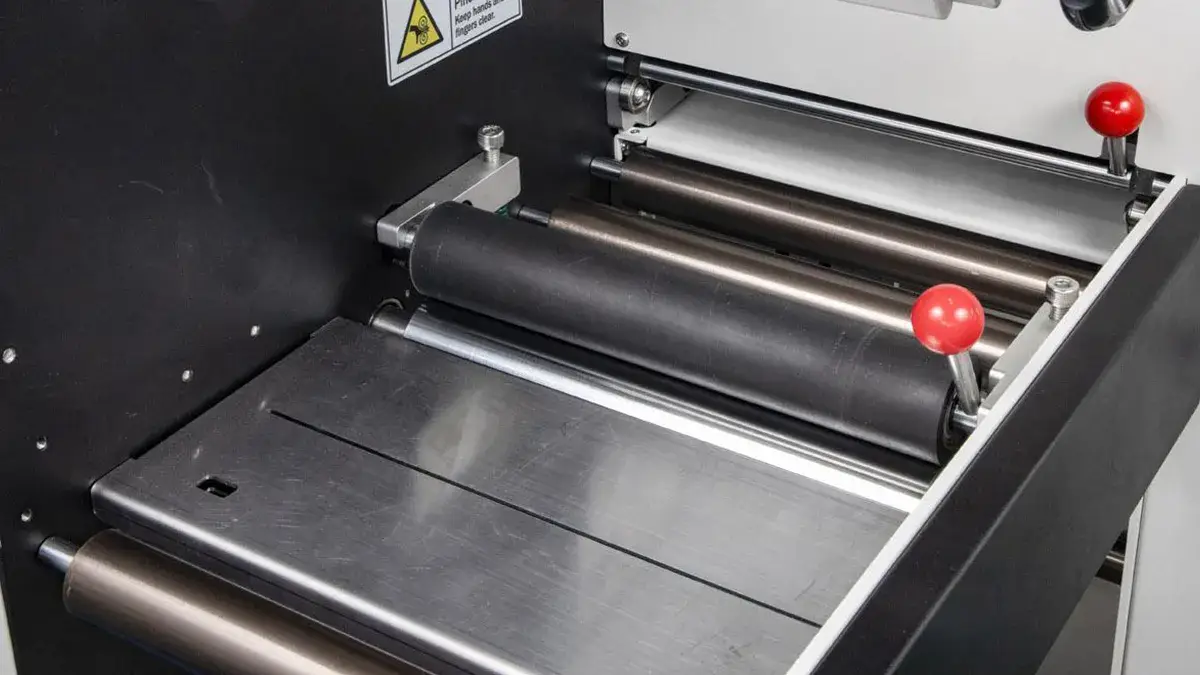

    • Material Splicing Platform
      Material Splicing Platform

      The splicing platform makes roll media connection easier, supporting smoother material feeding and reducing downtime during production preparation.

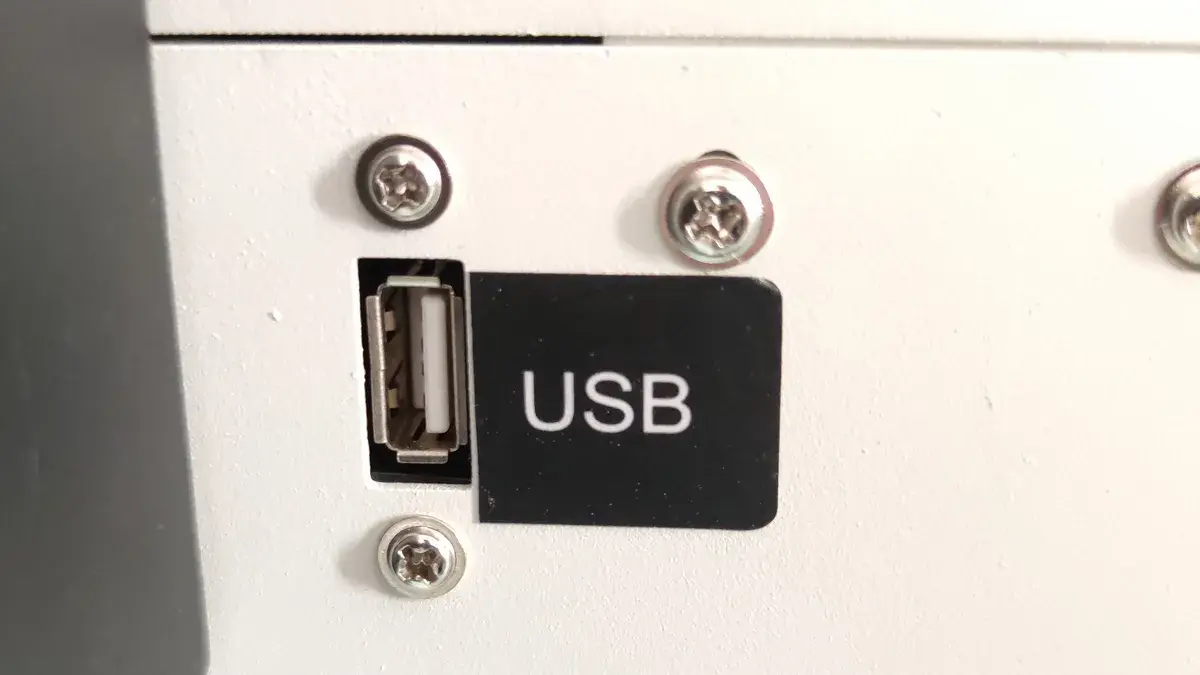

    • U-Disk and USB File Transfer
      U-Disk and USB File Transfer

      U-disk and USB transfer options make cutting file loading more convenient for different production environments.

    • Printer Connection Interface
      Printer Connection Interface

      The printer connection interface supports inline printing and cutting, allowing users to build a more efficient print-and-cut workflow.

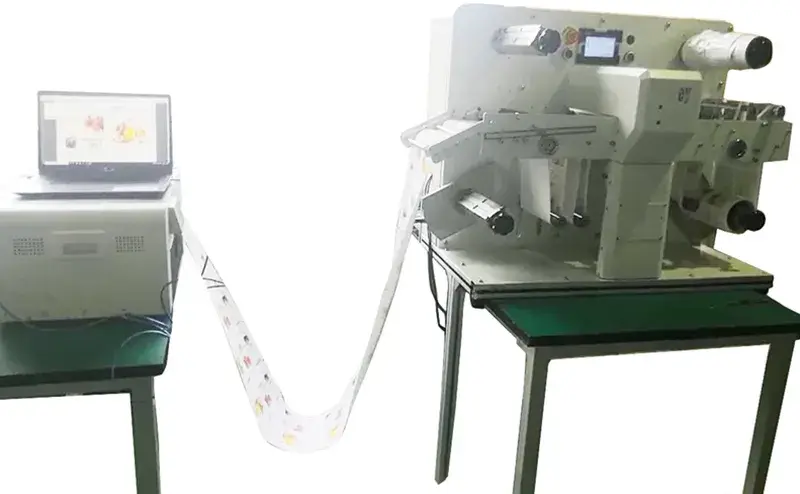

    • Inline Working with Desktop Printer
      Inline Working with Desktop Printer

      Connect the printer via a buffer device for smoother and steadier paper feeding.

More
Optional Functions
Online Printing Components

Online printing components allow the roll-to-roll label cutter to connect with a printer for inline operation and speed synchronization. This option helps users build a more efficient print-and-cut workflow, reducing separate handling steps between printing and label finishing.

The system can work with small roll label printers such as Memjet VP series, OKI Pro series, ANY-002, EPSON, PRIMERA, UNINET, and other compatible printers.
