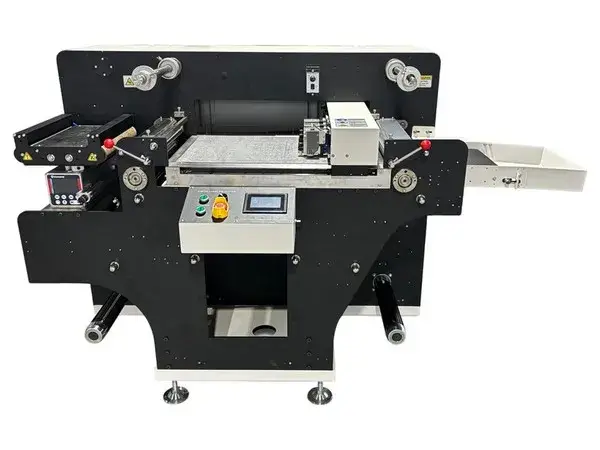

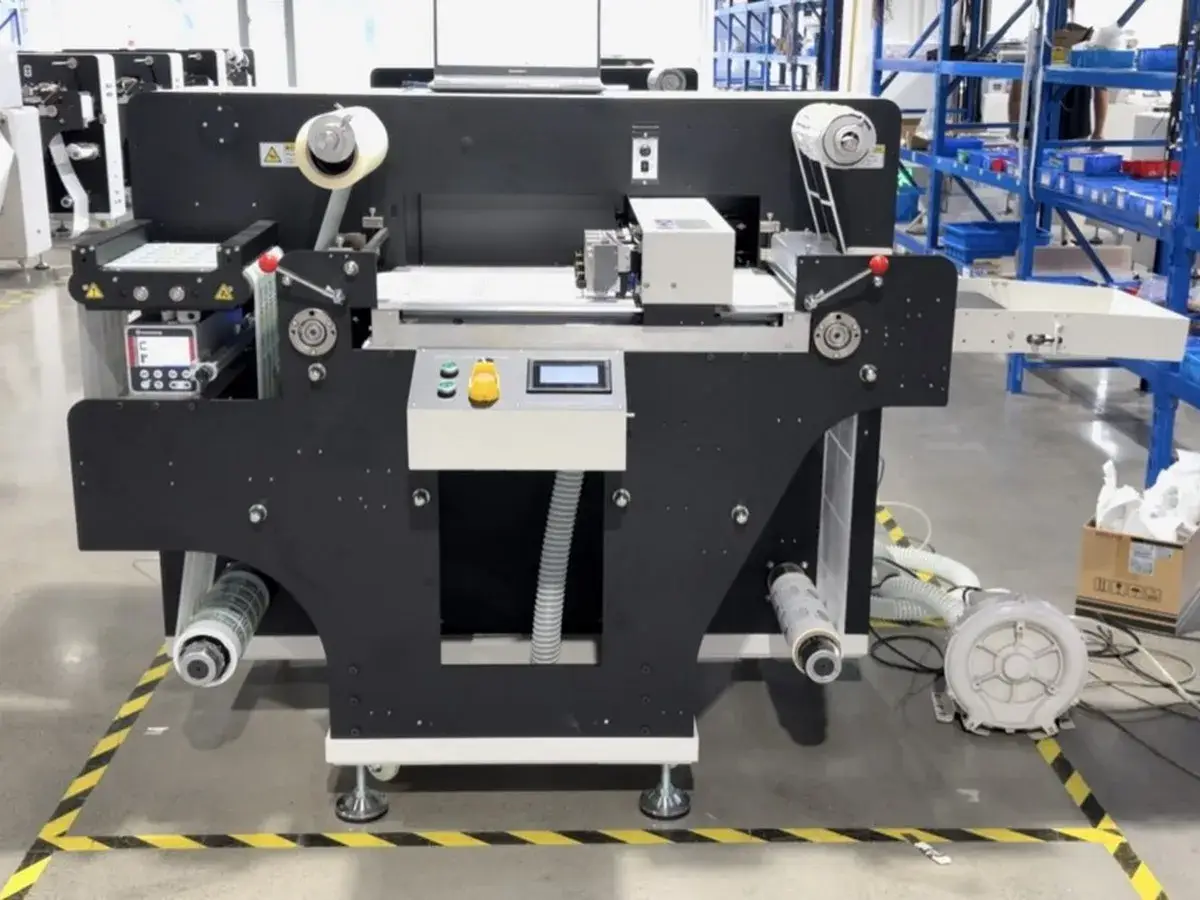

VR320F Label Die Cutting Machine
Sticker and label production often requires more than standard kiss cutting, especially when orders include full-cut stickers, sheeted output, or varied finishing formats. The label die cutting machine supports both flatbed and roll-to-roll processing, helping users handle roll-to-pieces digital finishing with better flexibility and fewer separate processing steps.
By integrating web guiding, cold lamination, digital die cutting, and automatic waste removal, the system makes on-demand sticker and label cutting easier to manage. Without traditional cutting dies, users can process different shapes more quickly while keeping setup time and tooling costs under control.
For print shops, sticker producers, and label businesses, this flatbed roll label cutting solution provides accurate CNC die cutting with 0.1 mm repeat precision. It can support kiss cutting, full cutting, and creasing needs, making short-run sticker production, custom label orders, and roll-to-pieces finishing more practical for daily operation.
- Sticker and Label Finishing: Suitable for producing stickers, labels, decals, and custom-shaped adhesive products.
- roll-to-pieces Digital Finishing: Supports roll media processing into finished sheet output for flexible sticker and label production.
- Kiss Cut and Full Cut Applications: Suitable for half-cut adhesive labels and full-cut sticker pieces, depending on the production requirement.
- Signage and Label Production: Can be used for signage stickers, product labels, printed decals, and other customized label jobs.
- Compatible Materials: Works with self-adhesive stickers, paper, PP, BOPP, PET, PVC, and other roll label materials.
- Ideal Users: A practical choice for print shops, sticker producers, label converters, advertising businesses, and companies handling on-demand label and sticker production.
| Max. Roll Diameter | 450 mm |
| Cutting Media Width | 150–340 mm |
| Max. Contour Cutting Width | 330 mm |
| Max. Contour Cutting Length | 400 mm (up to 1.2 m with segmentation kiss-cutting) |
| Min. Cutting Length | 10 mm |
| Max. Die-cutting Speed | 6 m/min (subject to label shape and size) |
| No. of Die-cutting Heads | 4 units (standard) |
| Cutting Type | Full-cut, Kiss-cut |
| File Format | DXF, PLT |
| Die-cutting Blades | Tungsten steel blades |
| Die-cutting Precision | ± 0.1 mm (repeatability) |
| Die-cutting Mark Registration | Photoelectric eye (CCD camera optional) |
| Matrix Removal | Automatic conveyor system |
| Roll Rewinder | 1 unit |
| Slitting Device for Roll | Optional |
| Data Transfer Method | USB link to PC / USB flash drive |
| Working Voltage | 110–240 VAC, 2 kW |
| Machine Dimension | 1600 × 1000 × 1360 mm (L × W × H) |
| Weight (G.W. / N.W.) | Machine: 670 kg / 580 kg Vacuum pump: 16kg / 10 kg |
| Packing Size | Machine: 1700 × 1150 × 1570 mm Vacuum pump: 450 × 450 × 500 mm |
| Optional Functions | Linear system / Crack and peel assembly |
-

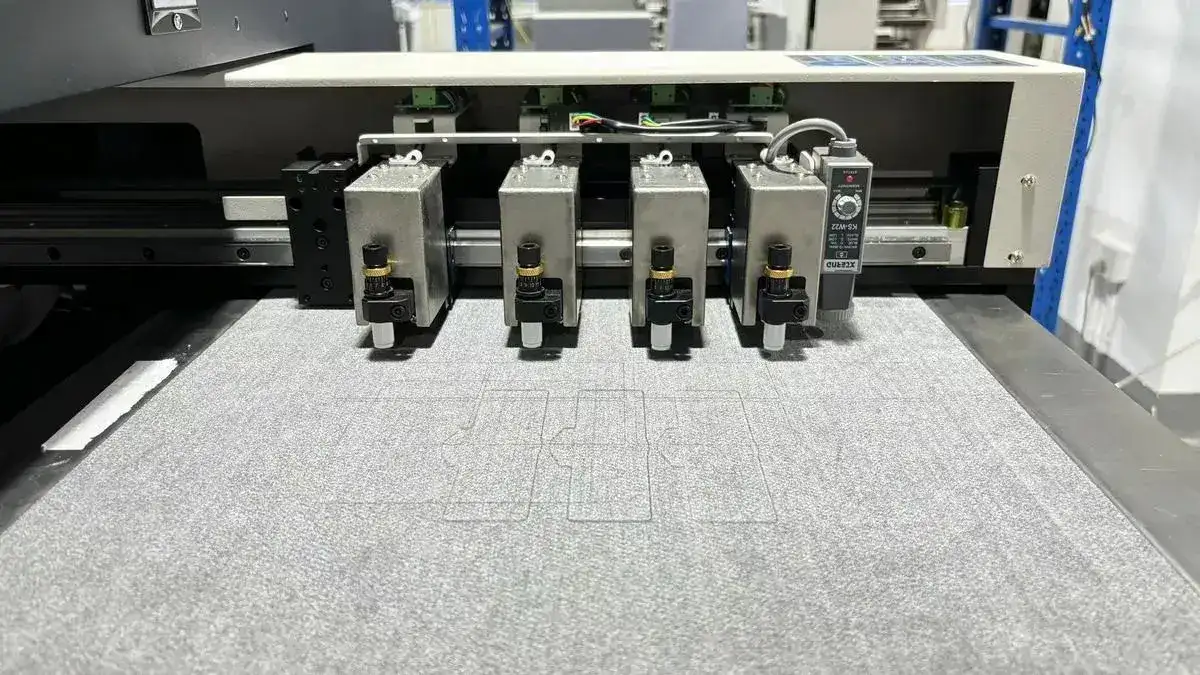

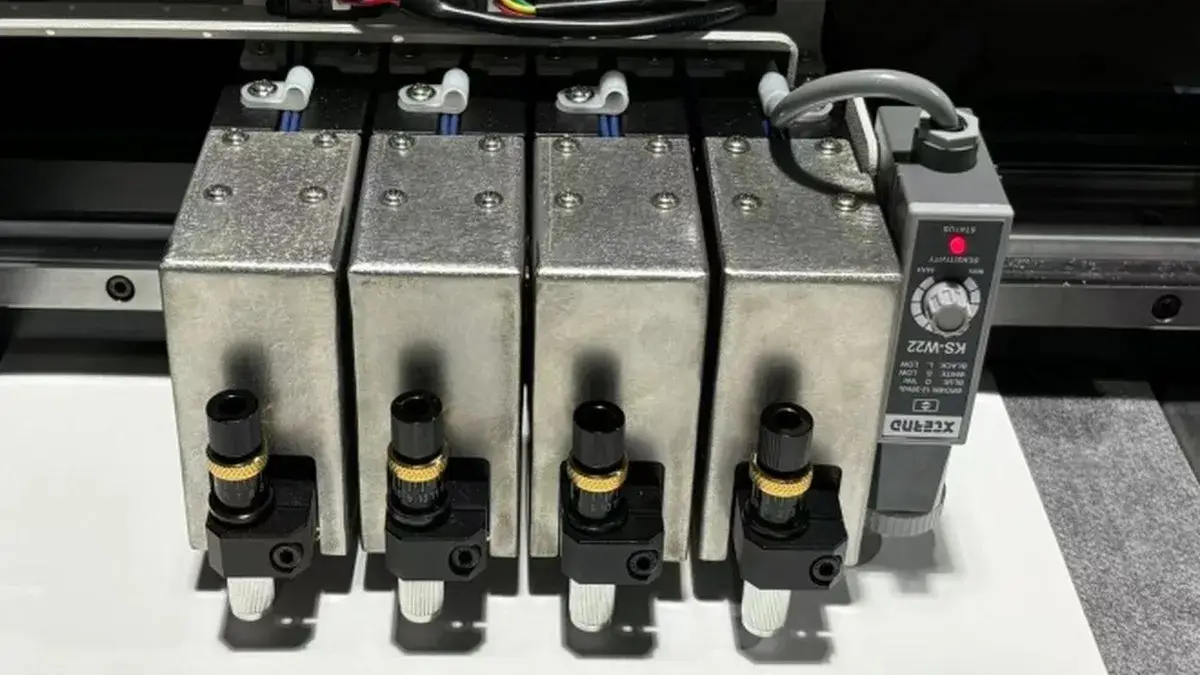

Multiple Die Cutting Heads with Automatic Distance AdjustmentMultiple die cutting heads adapt automatically to different label layouts, reducing manual adjustment and making varied sticker jobs easier to set up.
-

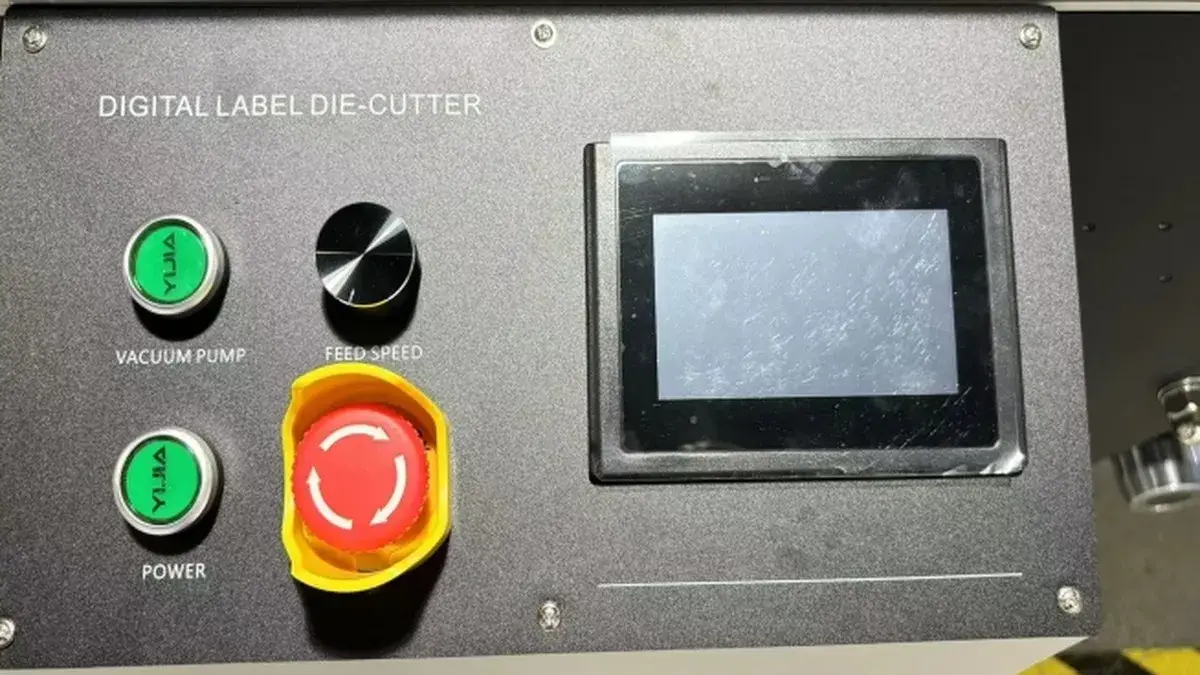

User-Friendly Operation PanelThe operation panel keeps machine control clear and simple, helping operators manage daily cutting tasks with less training time.
-

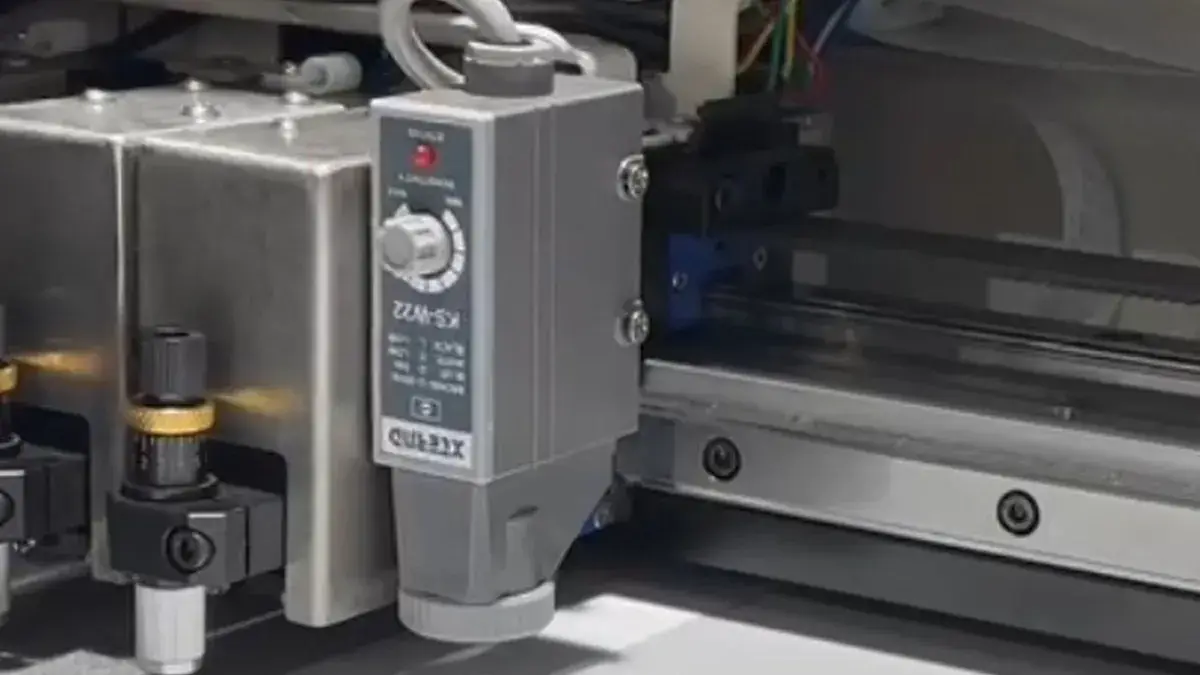

Digital Cutting Positioning SensorThe positioning sensor supports accurate cutting path detection, helping the label die cutting machine maintain consistent results on printed stickers and labels.
-

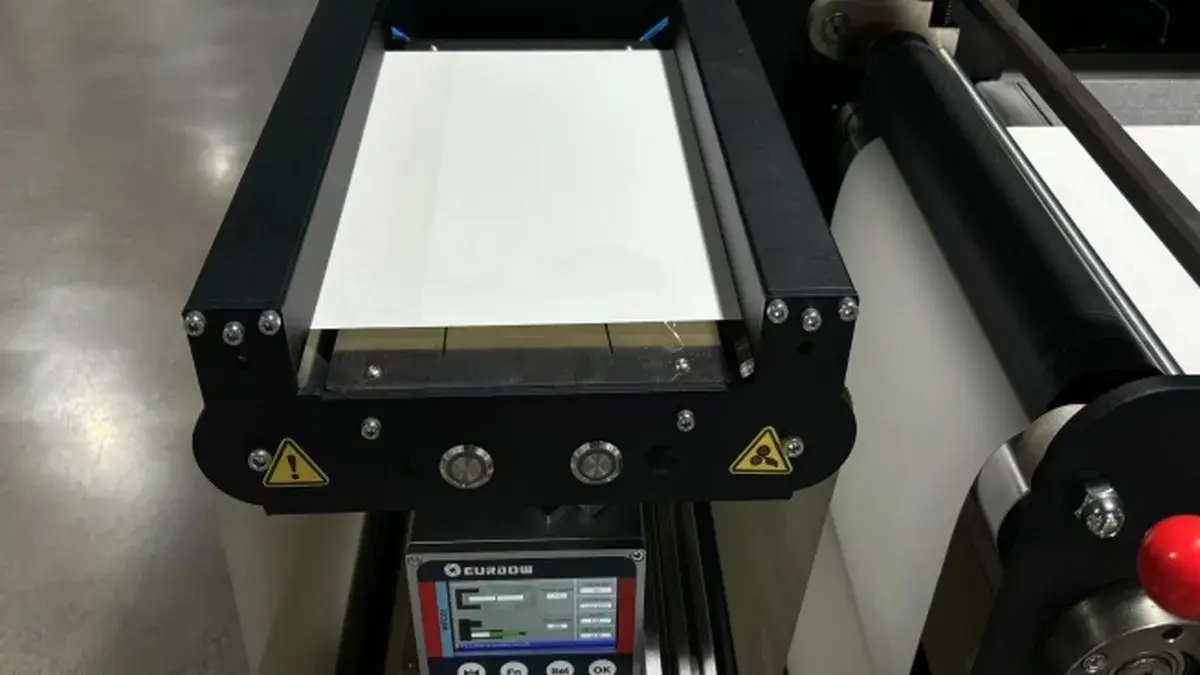

Automatic Web Guide SystemThe automatic web guide system keeps roll media aligned during feeding, reducing material deviation and supporting smoother roll-to-pieces processing.
-
Vacuum Suction Cutting TableThe vacuum suction table holds the material firmly during cutting, helping improve cutting accuracy and reduce movement during full-cut or kiss-cut operations.
-

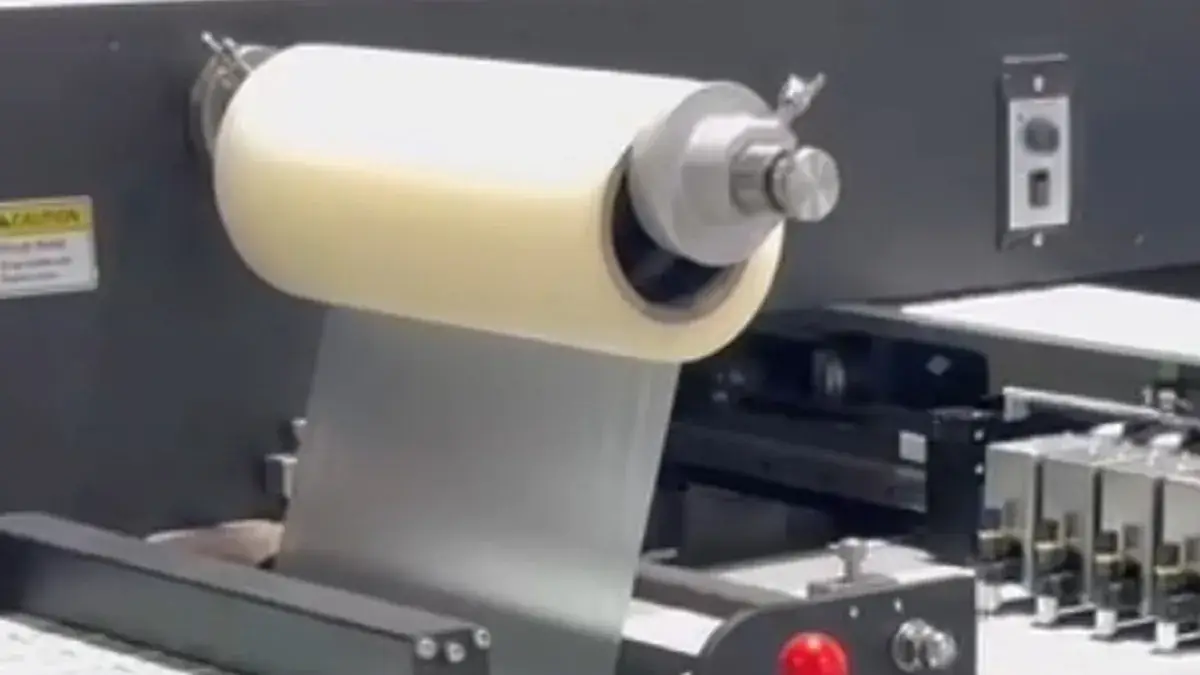

Cold Lamination Before Die CuttingCold lamination protects printed surfaces before cutting, improving label durability and creating a cleaner finished appearance.
-

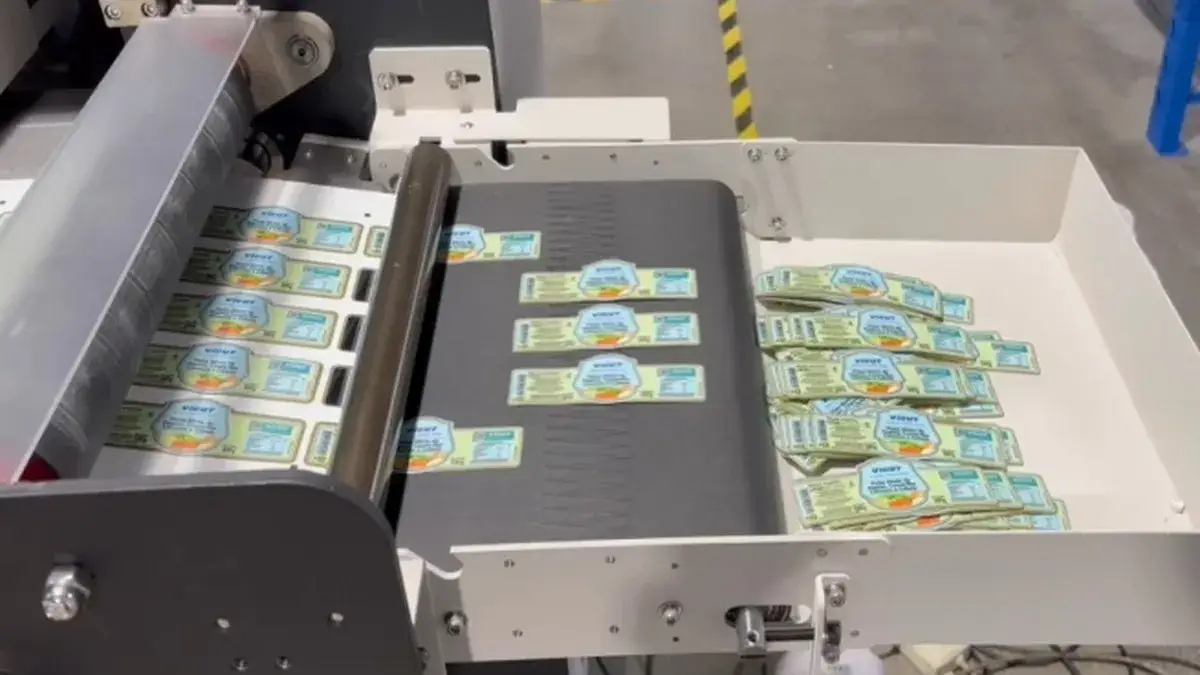

Conveyor Table for Finished Sticker CollectionThe conveyor table collects finished sticker pieces after cutting, making output handling easier and keeping production more organized.
-
Laminating Liner SystemThe laminating liner system removes the backing liner during lamination, helping users process higher-grade laminating materials more smoothly and keep the finishing workflow cleaner.
-

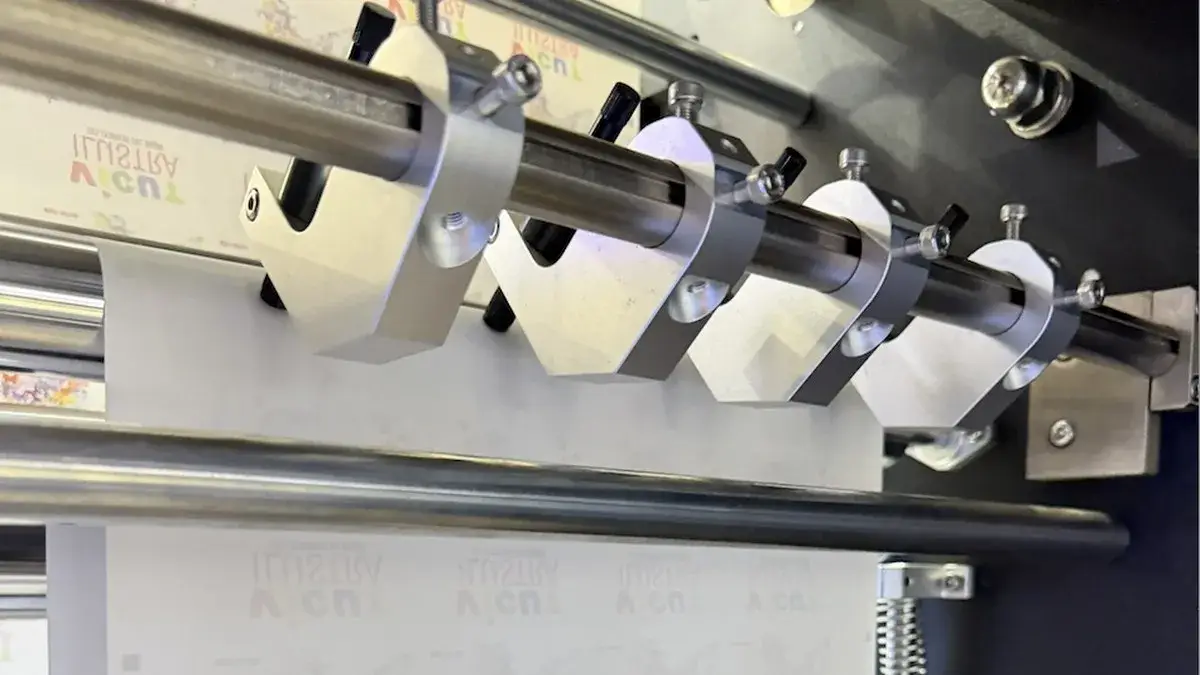

Back Paper Slitting FunctionThe back paper slitting function, also known as crack and peel assembly, creates slit lines on the backing paper. This makes finished stickers easier to peel and improves the user experience for sheeted sticker products.
