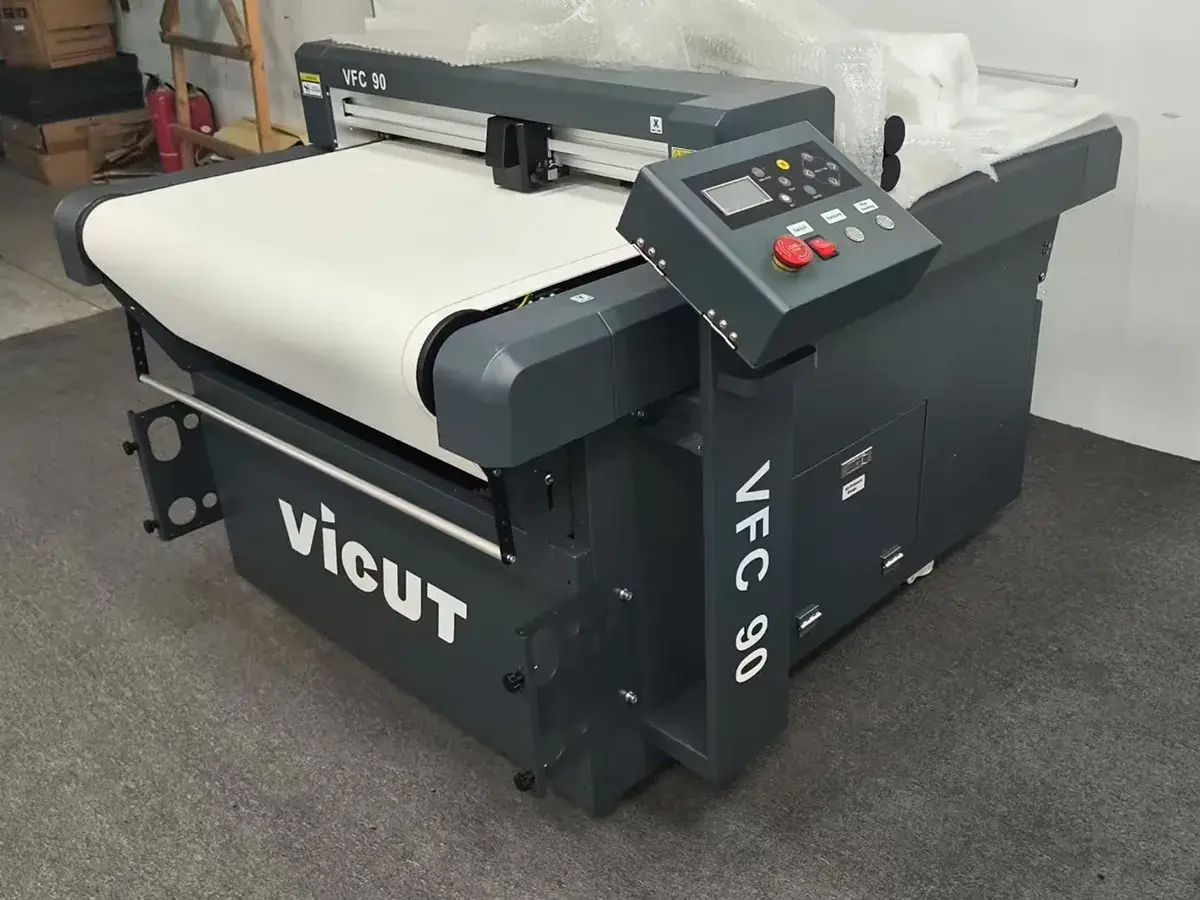

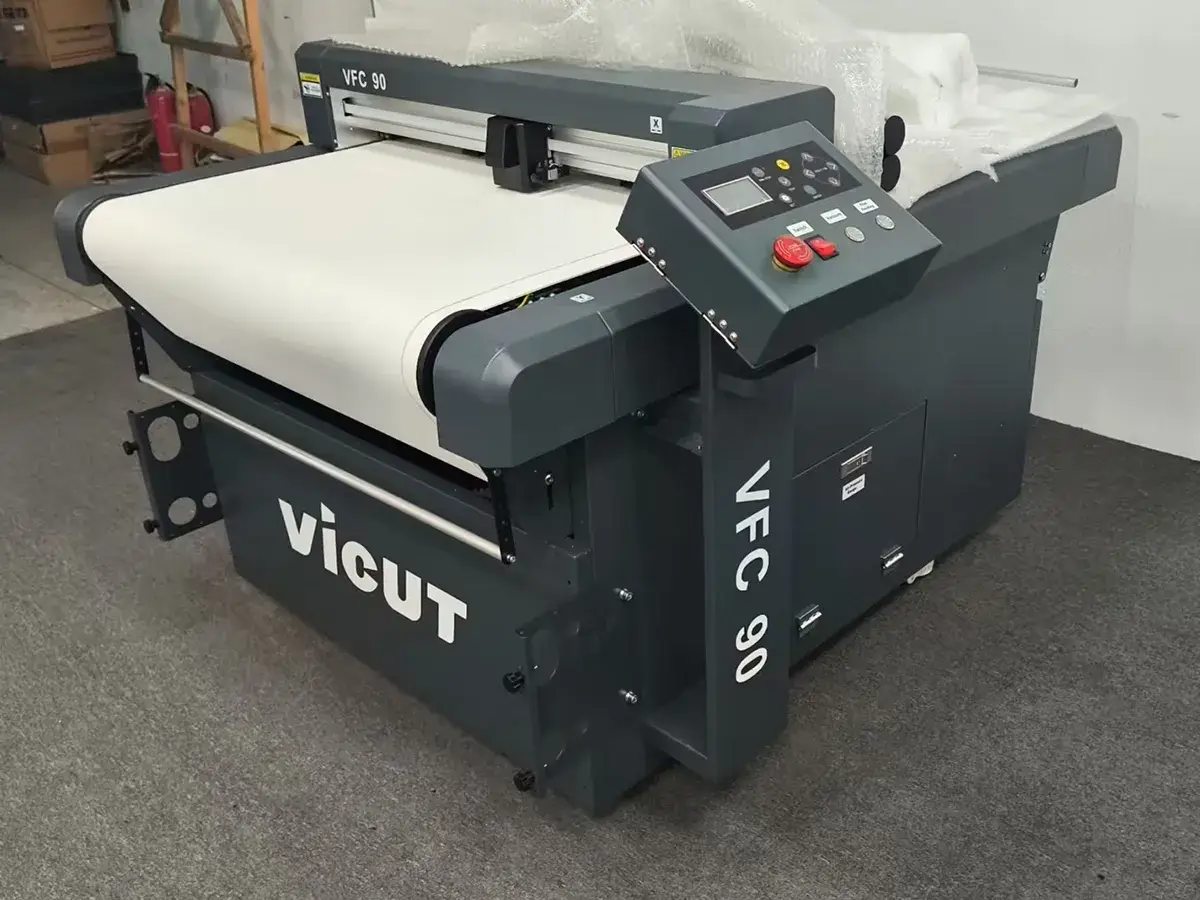

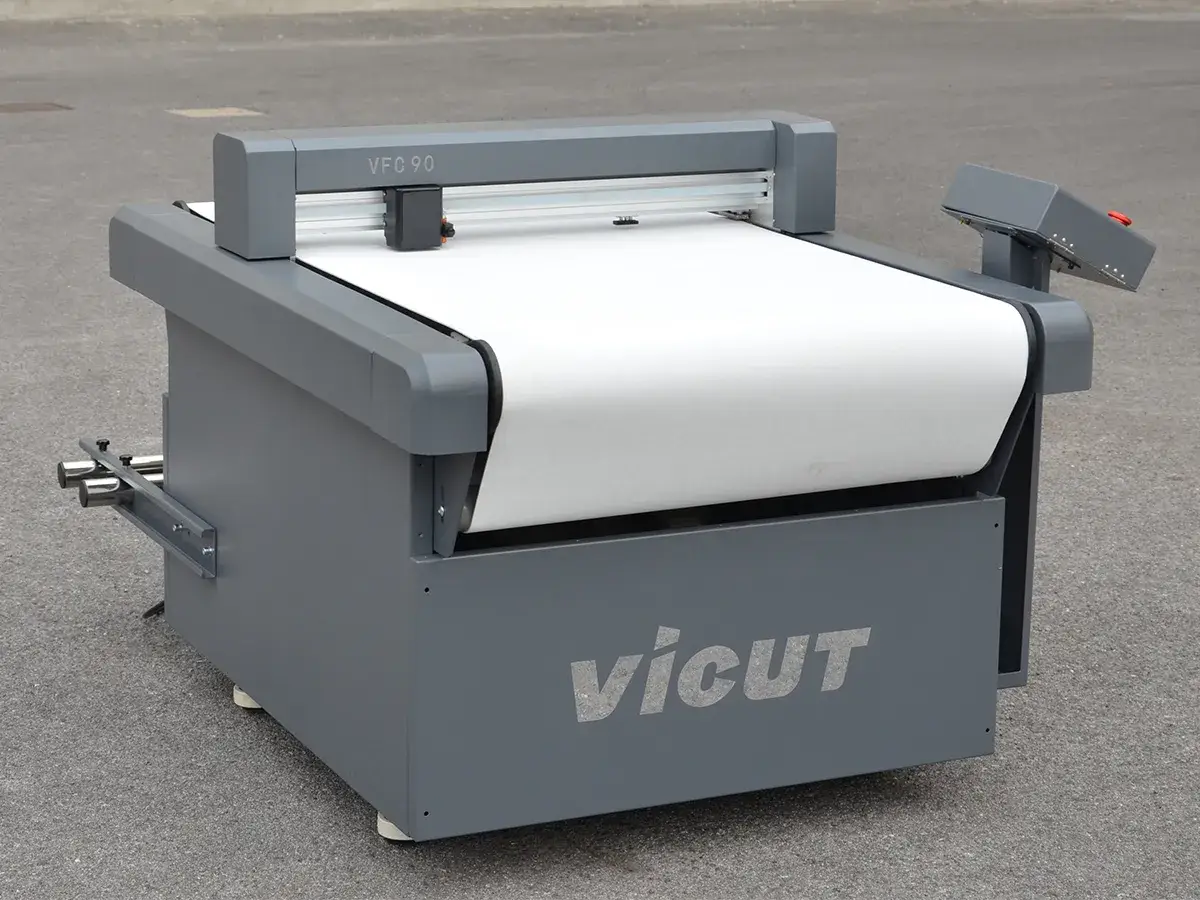

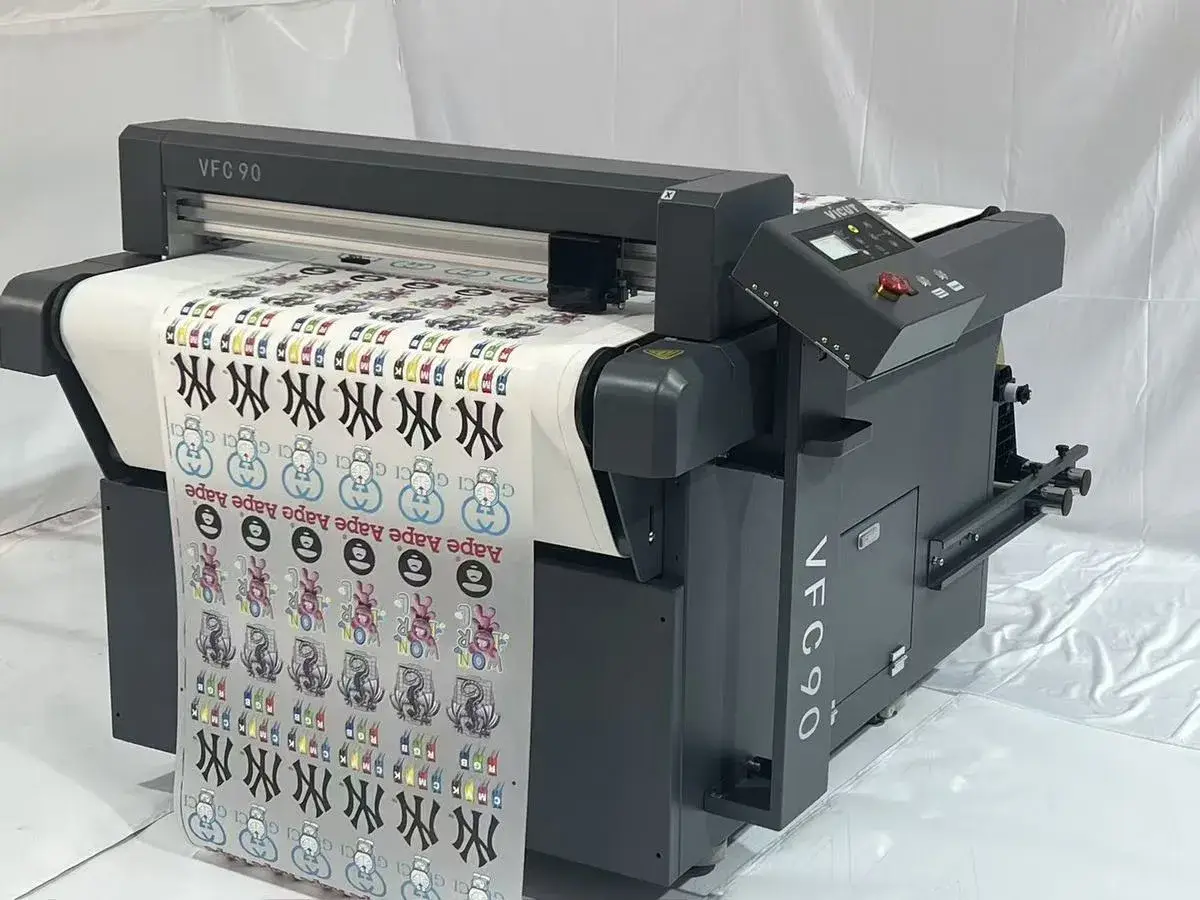

VFC90Rollfed Flatbed Cutter for DTF/UV DTF
For DTF and UV DTF production, accurate cutting after printing is essential to reduce waste, protect image quality, and keep orders moving efficiently. The rollfed flatbed cutter supports continuous roll feeding through a conveyor table, helping users process printed transfer films and crystal label films with better stability and less manual handling.
Equipped with a grating ruler and 8-level adjustable cutting force, the cutter helps maintain accurate positioning and consistent cutting depth across soft materials. It supports full cut, half cut, perforating, marking, and other processing needs without cutting dies, making it easier for print shops and custom product businesses to handle short runs, varied graphics, and personalized orders.
Working with DTF printers and heat transfer equipment, the rollfed flatbed cutter adds an automated cutting step to a one-stop DTF workflow, helping users improve production efficiency from printing to finished transfer output.
- DTF and UV DTF Production
Suitable for cutting heat transfer films, crystal label films, and printed transfer graphics after digital printing.
- Compatible Materials
Works with PET film, paper, reflective film, heat transfer film, paint protection film (PPF), vehicle wrap film, window tint film, vinyl stickers, magnetic stickers, sandblast resist rubber, mobile phone decoration film, multi-layer film, flexible circuit film, glass film, PVC film, and other flexible media.
- Application Fields
Suitable for DIY heat transfers, apparel labels, automotive aftermarket products, vehicle decoration, traffic signs, signage production, packaging, garment marking, shoe design, bag design, composite materials, offset printing, sample making, and POP displays.
- Ideal Users
A practical choice for DTF print shops, UV DTF label producers, signage companies, apparel customization businesses, and small-batch custom product manufacturers.
| Model | |
| X-axis Working Area | Standard: 610 mm / Contour cutting: 600 mm |
| Y-axis Working Area | Sheet: 910 mm / Roll: continuous (infinite) |
| Max. Media Width | 779 mm |
| Cutting Thickness Range | 0.03–1.5 mm |
| Applicable Media | Flexible and semi-rigid materials |
| Media Fixation Method | Vacuum table (2.2 kW vacuum pump with silencer) |
| Media Feeding System | Conveyor belt & Roll media bracket |
| Max. Dutting Speed | 600 mm/s |
| Max. Cutting Force | 600 gf (5.8 N), adjustable in 8 steps |
| Cutting Force Increments | Fine-adjustable in 1 gf steps |
| Blade Diameter | Ø2.0 mm |
| Blade Angle | 60˚ |
| Perforation Cutting | Supported |
| Drive System | AC Servo Motor |
| Mechanical Resolution | 0.0125 mm |
| Compatible OS | Windows 10 / 8 / 7 / XP |
| Buffer Memory | 2 MB |
| Compatible Software | Signworkpro (Windows Driver), SignMaster, CADLink, Digital Factory, Flexi |
| Control Panel Language | English / Chinese |
| File Formats | HP-GL, PLT, DXF, CAM |
| Standard Interfaces | USB, RS-232 |
| Registration Mark Detection | CCD camera |
| Input Power | 220 VAC, 50/60 Hz |
| Power Consumption | 620 W |
| Included Tools | 1 blade holder, 1 pen holder, 10 cutting blades |
| Media Bracket | Included |
| Packing Size | 1600 × 1400 × 1240 mm (L × W × H) |
| Weight (G.W. / N.W.) | 305 kg / 210 kg |
-
Advanced Tool Carriage with Voice Coil MotorThe advanced tool carriage uses a quiet voice coil motor to support smooth, responsive cutting, helping users achieve cleaner results with less noise during daily operation.
-

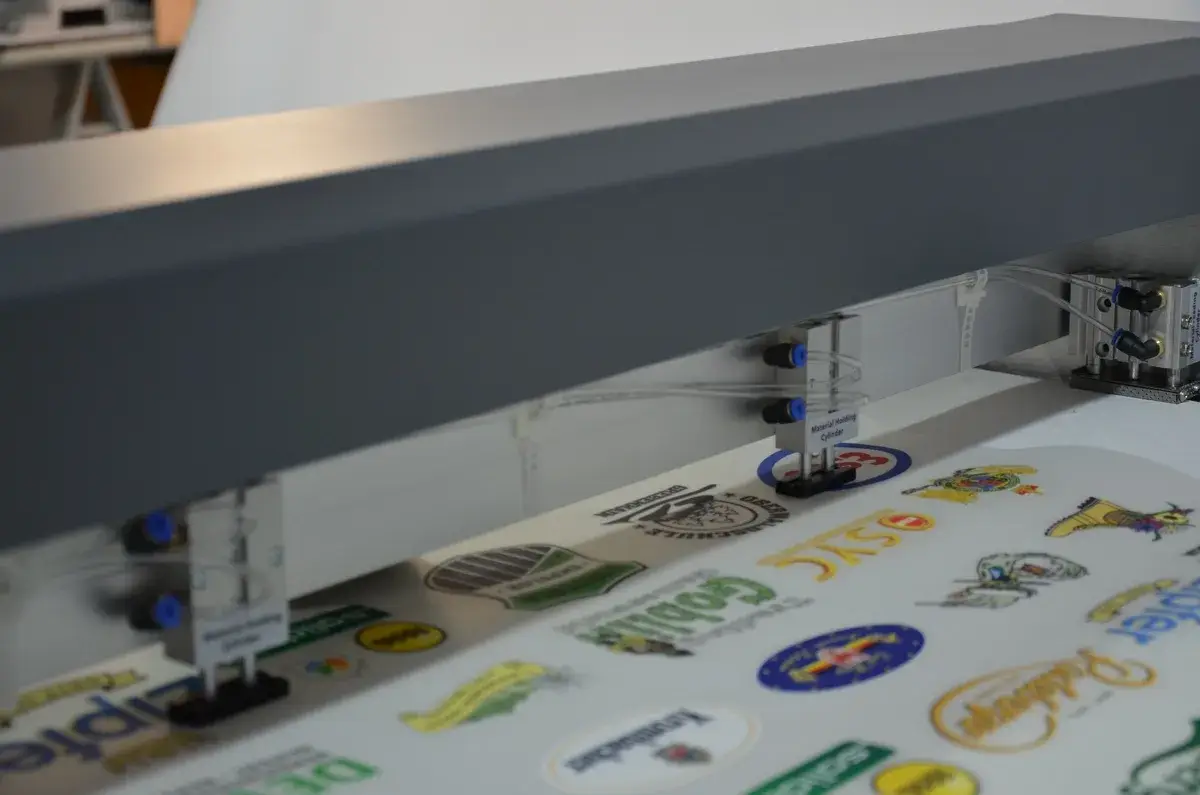

Suction Cup Feeding DeviceThe suction cup feeding device supports stable material feeding, reducing manual handling and helping keep production more consistent.
-
Oriented Roll Media BracketThe roll media bracket keeps roll materials properly positioned during feeding, supporting smoother movement through the cutting workflow.
-
Grating Ruler for Consistent Cutting DepthThe grating ruler helps maintain stable cutting depth across the material, improving cutting accuracy on flexible media.
-
Chip-Based Blade-Tip CompensationBlade-tip compensation by chip helps correct the blade path during cutting, supporting sharper corners and more accurate graphic outlines.
-
Servo Motor with Closed-Loop ControlThe servo motor and closed-loop control system support stable movement, accurate positioning, and reliable cutting performance.
-
Automatic Data Retrieval with BarcodeBarcode-based data retrieval allows the cutter to load the correct job information automatically, reducing manual setup and helping users handle repeated or mixed jobs more efficiently.
-

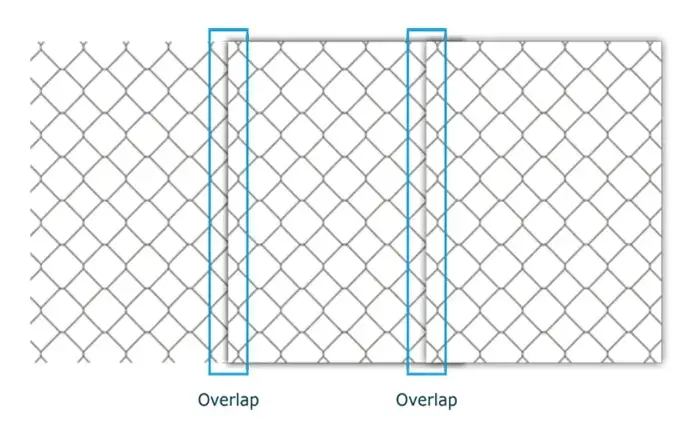

Intelligent Bleeding FunctionIntelligent bleeding makes overlap operation easier, helping operators achieve cleaner finished graphics and reduce alignment issues.
-
U-Disk and Offline Duplicate CuttingU-disk support and offline duplicate cutting make repeated jobs easier to process without relying on constant computer connection.
-

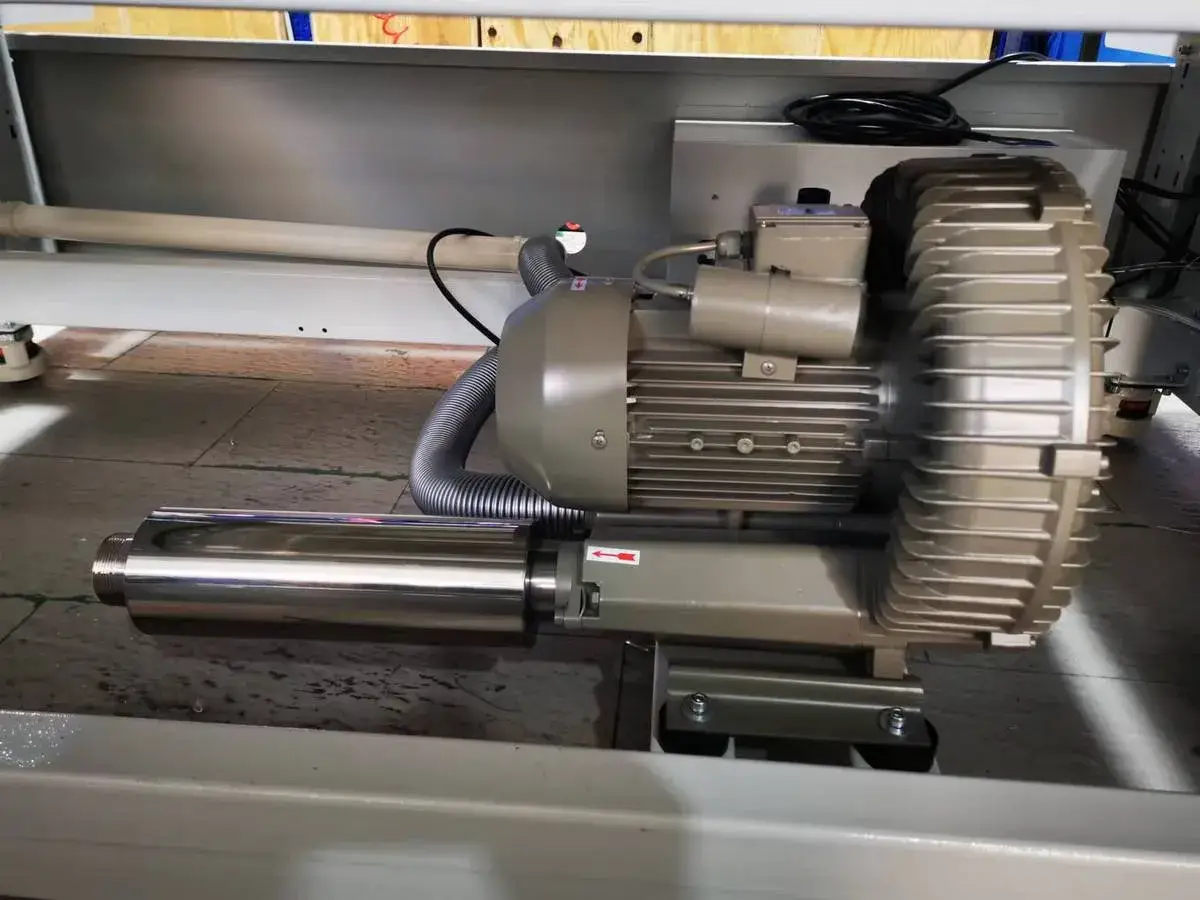

Vacuum Pump SystemThe vacuum system holds materials flat on the cutting surface, helping reduce movement and improve cutting precision.
-
One-Click Print Driver LoadingOne-click print driver loading simplifies setup, helping operators connect the cutter to the production workflow faster.
