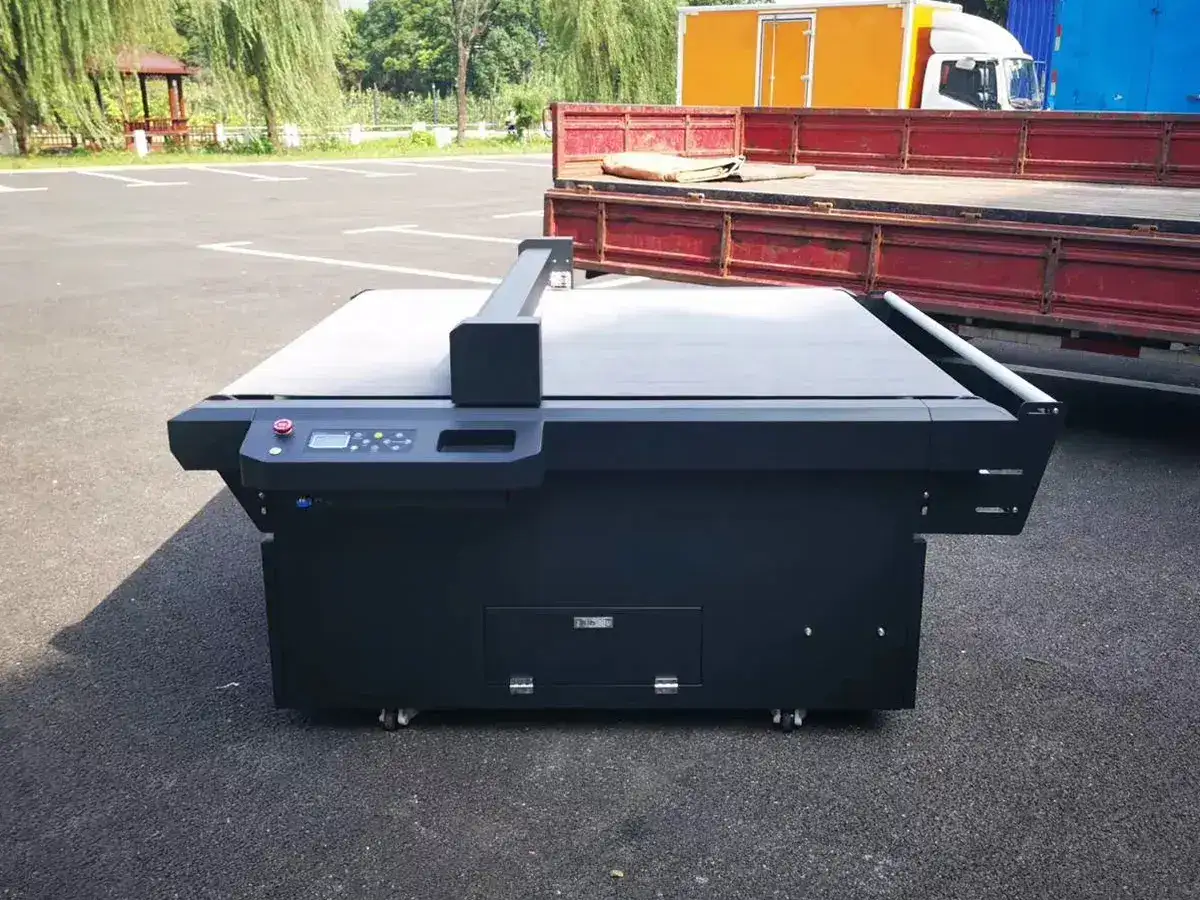

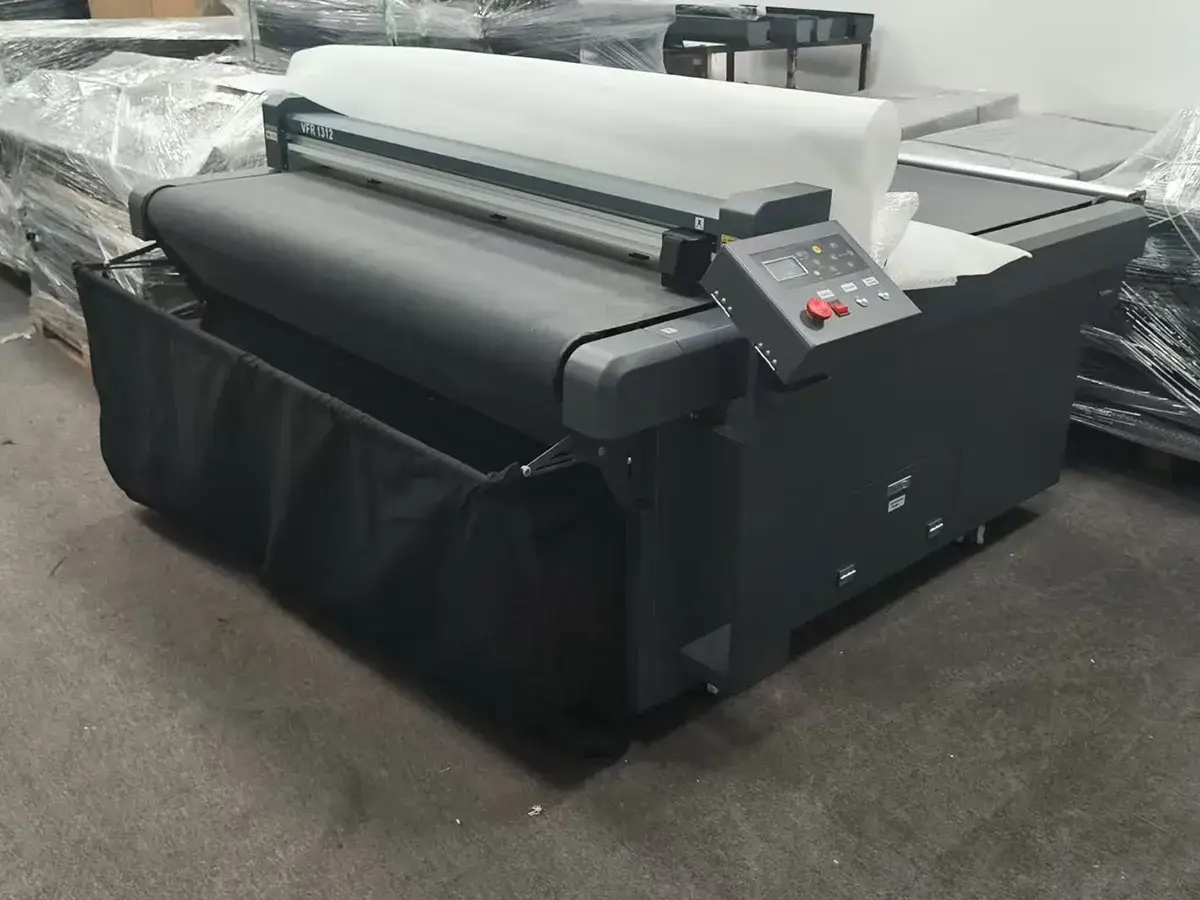

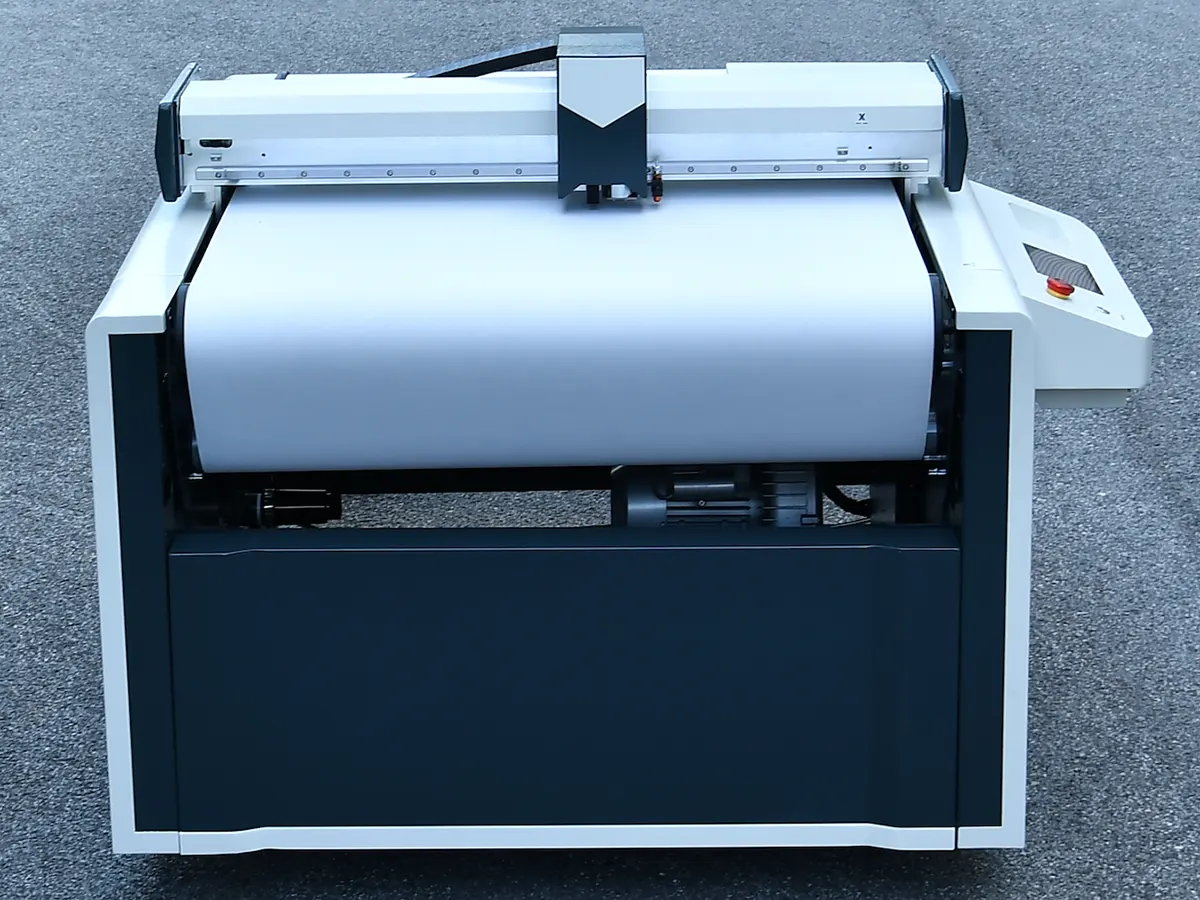

VFR SeriesSingle-Head Flatbed Cutter
Larger-format materials often require the same cutting accuracy as compact DTF and UV DTF jobs, but with a wider working area for different industries. The single-head flatbed cutter supports automatic feeding, conveyor-based cutting, and die-less processing for soft and medium-rigidity media, helping users handle larger graphics, films, labels, and packaging materials with better flexibility.
Equipped with grating ruler technology and 8-level cutting force adjustment, the cutter helps maintain consistent cutting depth across different materials. It supports full cutting, kiss cutting, perforating, and marking, making daily production easier for businesses that process varied materials and short-run custom jobs.
For automotive film shops, sign makers, packaging businesses, apparel decoration suppliers, and sample-making workshops, the single-head flatbed cutter provides a practical way to expand cutting capacity while keeping operation accurate, stable, and easy to manage.
- Automotive and Film Cutting: Suitable for paint protection film (PPF), vehicle wrap film, window tint film, reflective film, glass film, and mobile phone decoration film.
- Signage and graphic production: Supports vinyl stickers, heat transfer vinyl, magnetic stickers, sandblast resist rubber, pre-printed graphics, and POP display materials.
- Packaging and Sample Making: Works with card paper up to 500 GSM, PVC film with 0.03–0.75 mm thickness, PET film with 0.03–1.5 mm thickness, and other flexible sheet or roll materials.
- Specialty Material Processing: Suitable for multi-layer film, flexible circuit film, composite materials, and other soft or medium-rigidity media.
- Application Fields: Used in automotive aftermarket, vehicle decoration, traffic signs, sign making, packaging, apparel marking, shoe design, bag design, composite material processing, offset printing, sample making, and POP displays.
| Model | ||
| Working Area (Non-contour) | 1300 × 1200 mm | 1520 × 1200 mm |
| Working Area (Contour) | 1240 × 1180 mm | 1490 × 1180 mm |
| Max. Media Thickness | 1.5 mm | 1.5 mm |
| Applicable Media | Soft and medium-rigidity media | Soft and medium-rigidity media |
| Media Fixation Method | Vacuum table (2.2 kW vacuum pump with muffler) | Vacuum table (2.2 kW vacuum pump with muffler) |
| Max. Cutting Speed | 600 mm/s | 600 mm/s |
| Max. Cutting Force | 600 gf / 5.8 N in 8 steps | 600 gf / 5.8 N in 8 steps |
| Cutting Force Increments | Adjustable in 1 gf increments | Adjustable in 1 gf increments |
| Blade Diameter | Ø 2.0 mm | Ø 2.0 mm |
| Blade Angle | 60˚ | 60˚ |
| Dotted Line Cutting | Included | Included |
| Drive System | AC Servo | AC Servo |
| Mechanical Resolution | 0.0125 mm | 0.0125 mm |
| Compatible OS | Windows 10/8/7/XP | Windows 10/8/7/XP |
| Memory Buffer | 2 MB | 2 MB |
| Software | Windows Driver, SignWork Pro, CADtoPlot Pro | Windows Driver, SignWork Pro, CADtoPlot Pro |
| LCD Language | English / Chinese | English / Chinese |
| File Format | HP-GL, PLT | HP-GL, PLT |
| Standard Ports | USB, RS-232 | USB, RS-232 |
| Registration Mark Detection | CCD camera | CCD camera |
| Power Input | 220 VAC, 50/60 Hz | 220 VAC, 50/60 Hz |
| Power Consumption | Cutter: 1.5 kW; Vacuum pump: 2.2 kW |
Cutter: 1.5 kW; Vacuum pump: 2.2 kW |
| Included Tools | 1 pc blade holder, 1 pc pen holder, 10 pcs cutting blades | 1 pc blade holder, 1 pc pen holder, 10 pcs cutting blades |
| Media Bracket | Included | Included |
| Machine Dimensions | 1700 × 1800 mm (L × W) | 2100 × 1800 mm (L × W) |
| Packing Dimensions | 1920 × 1850 × 1220 mm (L × W × H) | 2150 × 1920 × 1220 mm (L × W × H) |
-
Advanced Tool Carriage with Voice Coil MotorThe advanced tool carriage uses a quiet voice coil motor to support smooth cutting movement, helping users achieve cleaner results with lower operating noise.
-

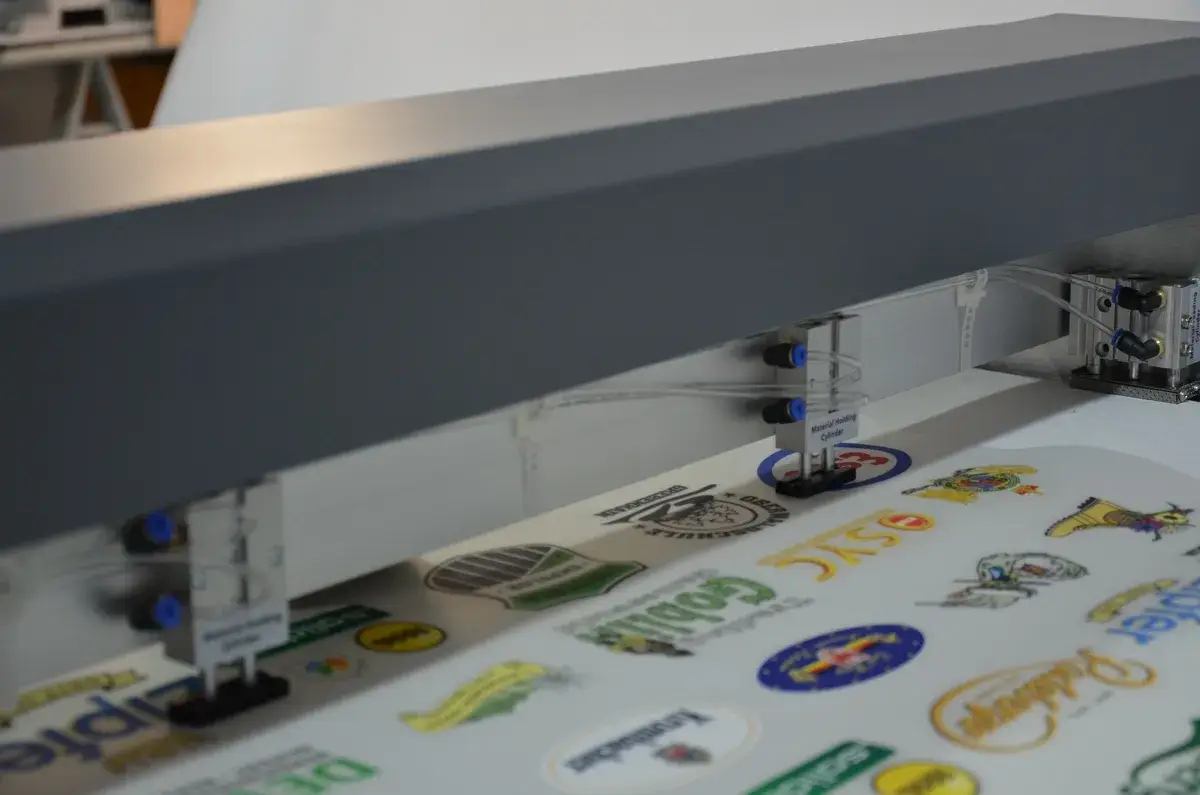

Suction Cup Feeding DeviceThe suction cup feeding device supports stable material feeding, reducing manual handling and helping the single-head flatbed cutter maintain a smoother production flow.
-
Oriented Roll Media BracketThe roll media bracket keeps roll materials properly positioned during feeding, supporting more accurate and stable cutting for flexible media.
-
Grating Ruler for Consistent Cutting DepthThe grating ruler helps maintain consistent cutting depth across the material, improving accuracy when processing films, stickers, card paper, and other media.
-

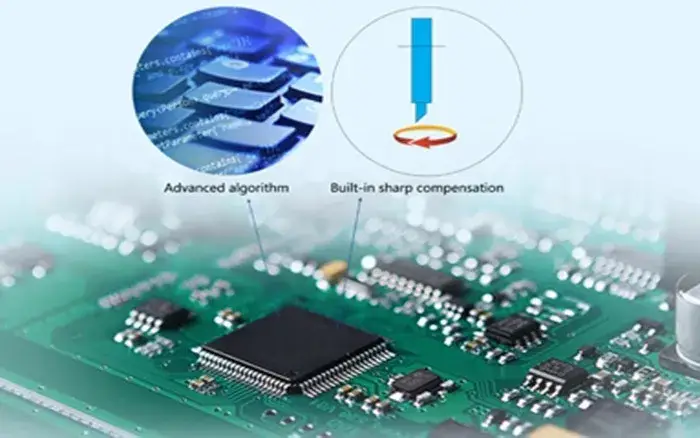

Chip-Based Blade-Tip CompensationBlade-tip compensation by chip helps correct the blade path during cutting, supporting sharper corners and more accurate graphic outlines.
-
Servo Motor with Closed-Loop ControlThe servo motor and closed-loop control system support stable movement, accurate positioning, and reliable cutting performance during daily operation.
-
Automatic Data Retrieval with BarcodeBarcode-based data retrieval allows the cutter to load the correct job information automatically, helping operators reduce setup time for repeated or mixed cutting tasks.
-

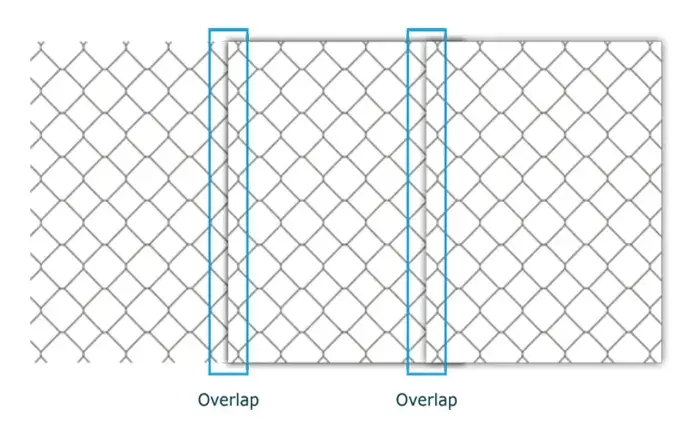

Intelligent Bleeding FunctionIntelligent bleeding makes overlap operation easier, helping users achieve cleaner finished graphics and reduce alignment issues.
-
U-Disk and Offline Duplicate CuttingU-disk support and offline duplicate cutting make repeated jobs easier to process without constant computer connection.
-

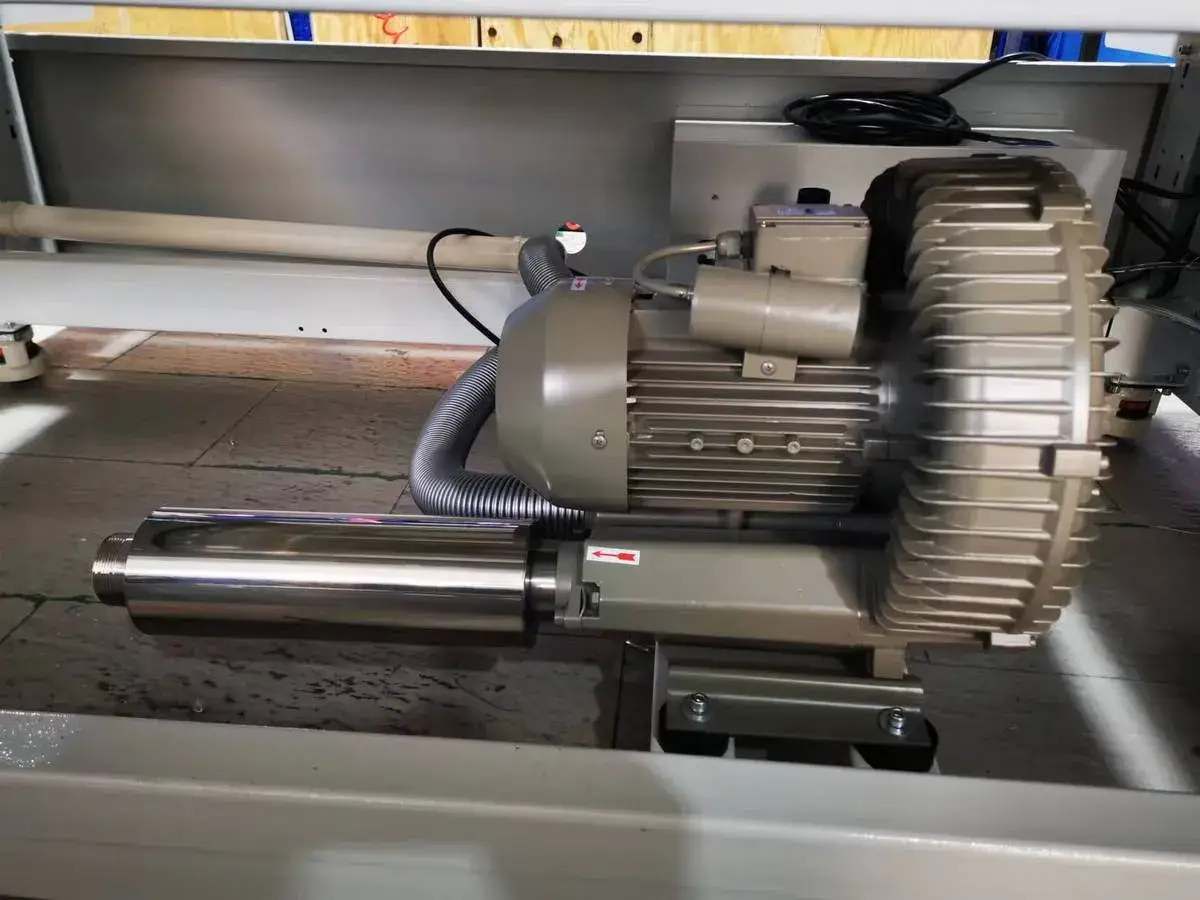

Vacuum Pump SystemThe vacuum system holds materials flat on the cutting surface, reducing media movement and supporting more precise full cutting, kiss cutting, perforating, and marking.
-
One-Click Print Driver LoadingOne-click print driver loading simplifies setup, helping operators connect the cutter to the production workflow faster.
