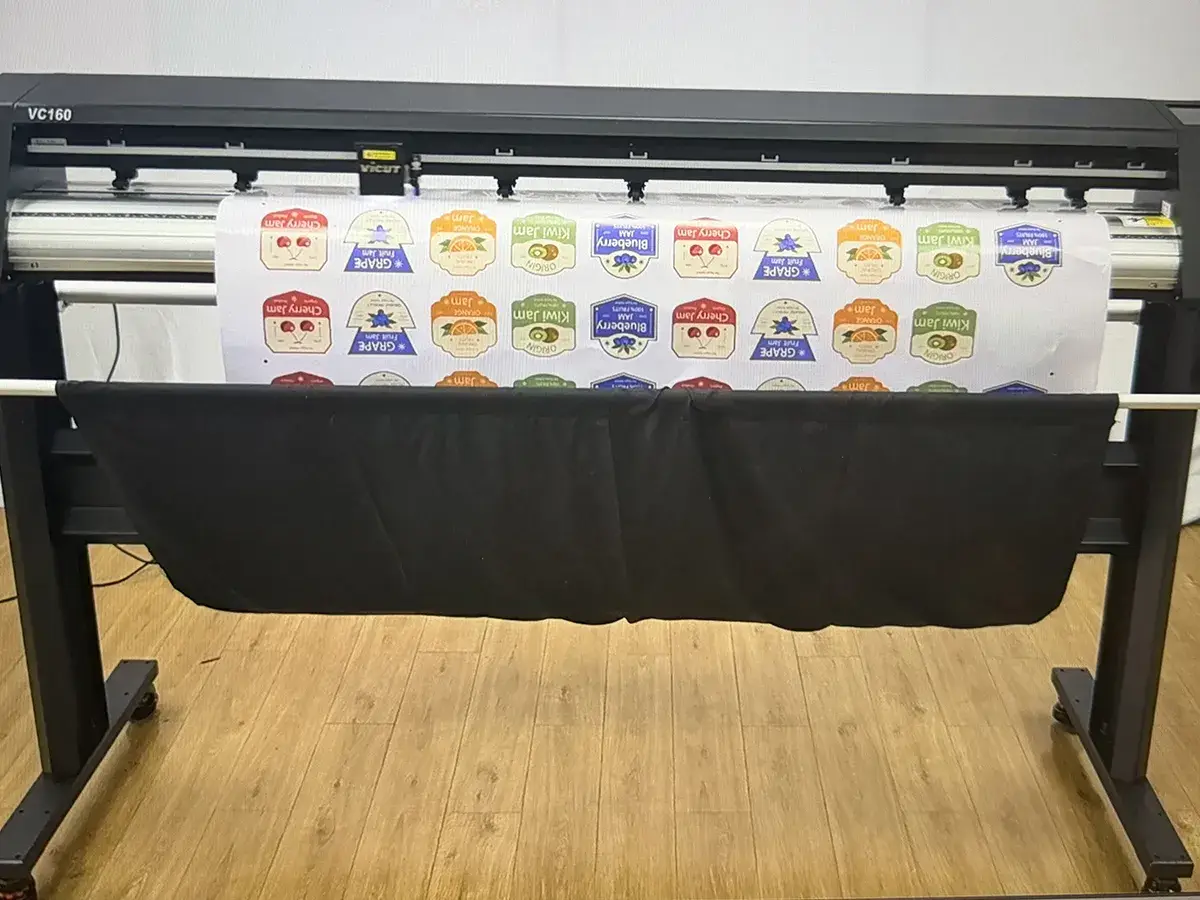

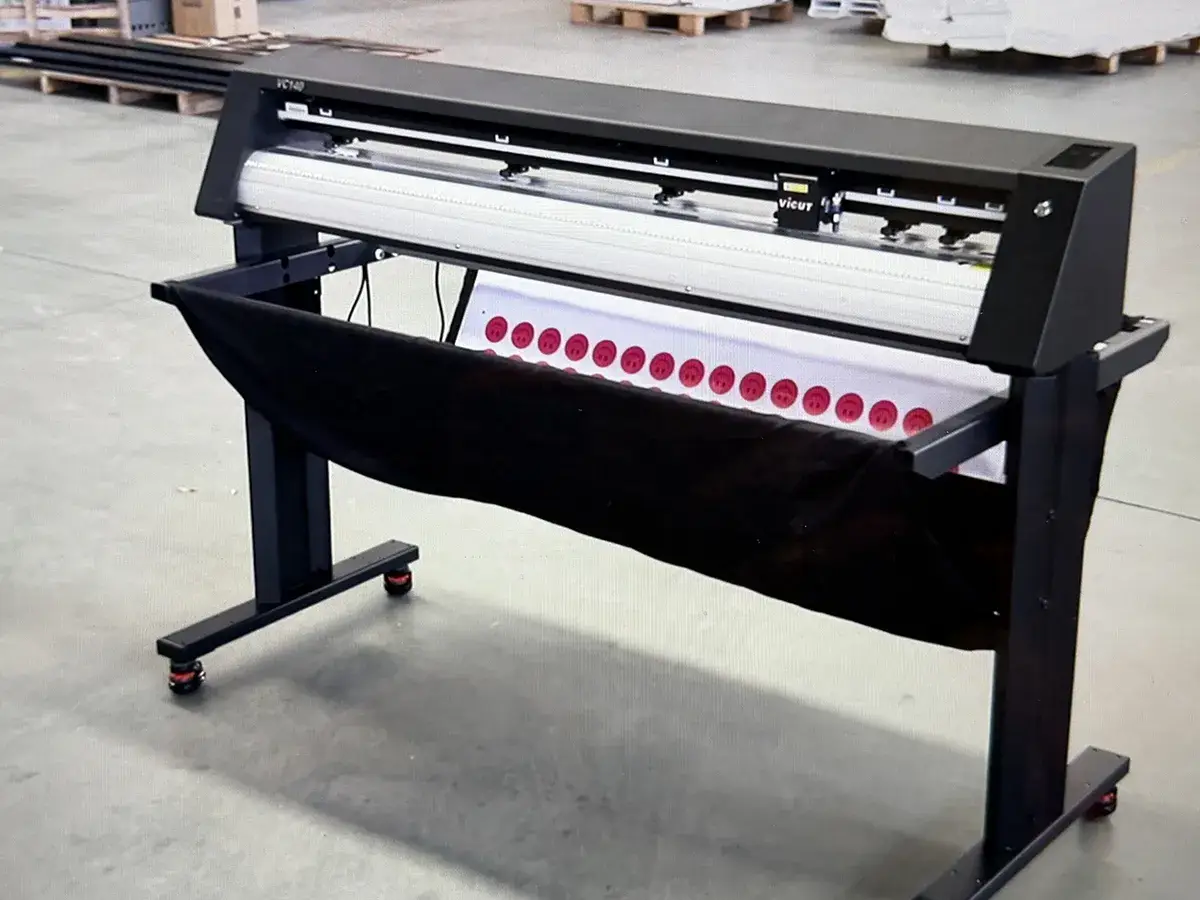

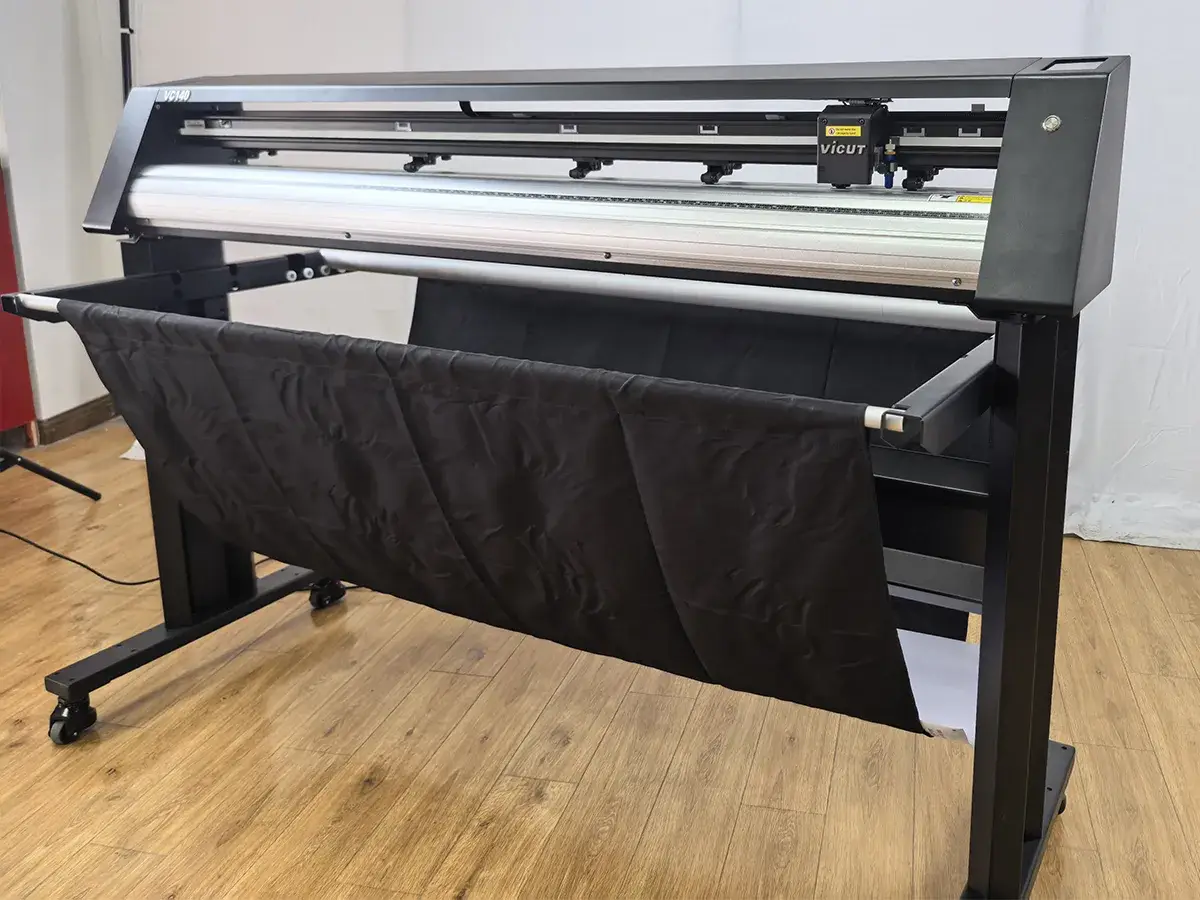

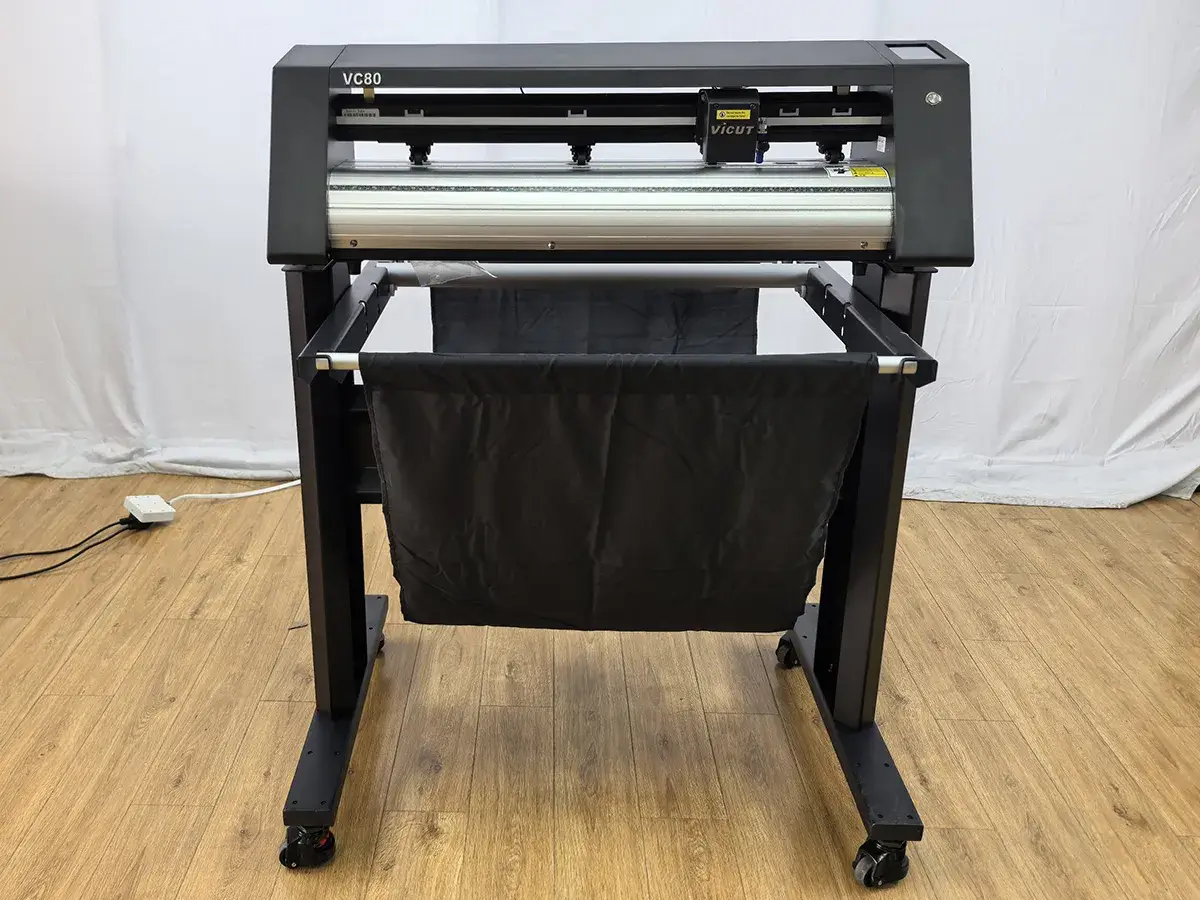

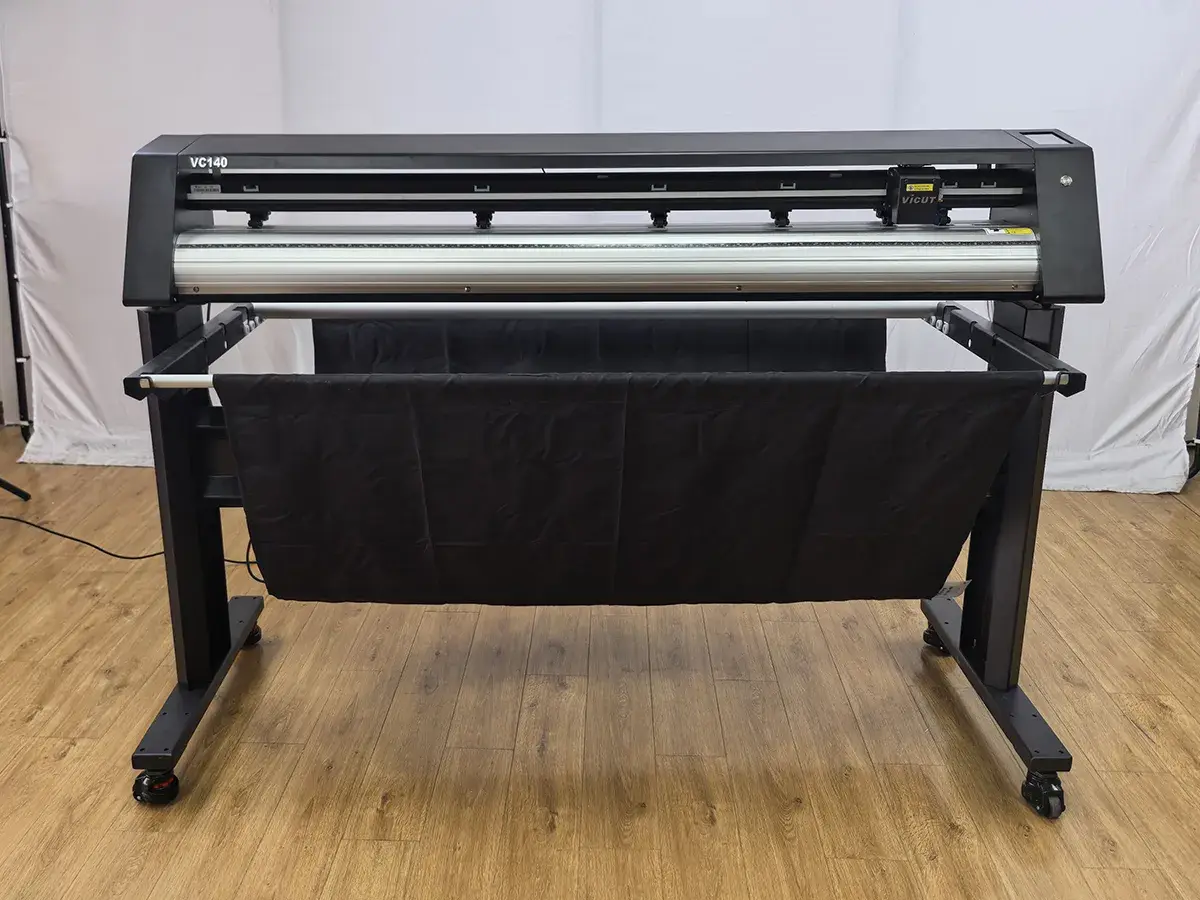

VC SeriesServo Contour Vinyl Cutter

Large-format graphics and batch cutting jobs require speed, stable feeding, and reliable contour cutting without pushing equipment costs too high. The servo contour vinyl cutter is designed for users who need to process larger plots and higher quantities while maintaining professional cutting quality.

Built for advertising shops, sign makers, decoration businesses, and customization studios, the vinyl cutter plotter supports daily production of corporate signage, vehicle graphics, window displays, exhibition banners, print-and-cut stickers, wall decals, apparel heat transfers, stencils, and model-making materials.

For price-sensitive users who still expect fast cutting performance, this economical servo cutting solution provides a practical balance between productivity, cutting speed, and investment control. It helps businesses handle more custom orders, expand graphic cutting services, and keep production moving efficiently.

Request a Quote
Watch Videos
Applications
  • Advertising and Signage

    Suitable for corporate signage, vehicle graphics, window display graphics, exhibition banners, and print-and-cut stickers.

  • Home Decoration

    Supports custom wall decals, decorative films, and kitchen surface refinishing applications.

  • Personalization and Customization

    Suitable for apparel heat transfers, T-shirts, jackets, wall painting stencils, model making, and other custom graphic projects.

  • Ideal Users

    A practical choice for sign shops, advertising companies, vehicle graphics businesses, print shops, and customization studios handling large-format or batch cutting work.

  • Applications
  • Applications
  • Applications
  • Applications
Technical Parameters
Model VC80 VC140 VC160
Stand Included Included Included
Max. Media Width 720 mm 1400 mm 1660 mm
Max. Cutting Width 600 mm 1310 mm 1540 mm
Number of Pinch Rollers 4 6 7
Cutting Accuracy ± 0.02 mm ± 0.02 mm ± 0.02 mm
Drive System Servo Servo Servo
Max. Cutting Speed 1200 mm/s 1200 mm/s 1200 mm/s
Interface USB / Ethernet / USB flash drive / Wi-Fi USB / Ethernet / USB flash drive / Wi-Fi USB / Ethernet / USB flash drive / Wi-Fi
Registration Mark Sensing High-resolution CCD camera High-resolution CCD camera High-resolution CCD camera
Supported Marks Circle, Corner, QR code Circle, Corner, QR code Circle, Corner, QR code
Software AIDCut-CAM, SignMaster (Optional)  AIDCut-CAM, SignMaster (Optional)  AIDCut-CAM, SignMaster (Optional)
Feeding System Pull-shaft mechanism Pull-shaft mechanism Pull-shaft mechanism
Motor Power 25 W 25 W 25 W
Max. Cutting Force 1000 gf 1000 gf 1000 gf
Power Consumption < 100 W < 100 W < 100 W
Power Supply 110–130 VAC / 210–230 VAC, 50/60 Hz 110–130 VAC / 210–230 VAC, 50/60 Hz 110–130 VAC / 210–230 VAC, 50/60 Hz
Ambient Temperature 5 °C to 35 °C 5 °C to 35 °C 5 °C to 35 °C
Weight (G.W. / N.W.) 47 kg / 44 kg 61 kg / 58 kg 67 kg / 64 kg
Packing Size (L × W × H) 1050 × 380 × 500 mm (0.2 CBM) 1730 × 380 × 500 mm (0.33 CBM) 1990 × 380 × 500 mm (0.38 CBM)
Product Details

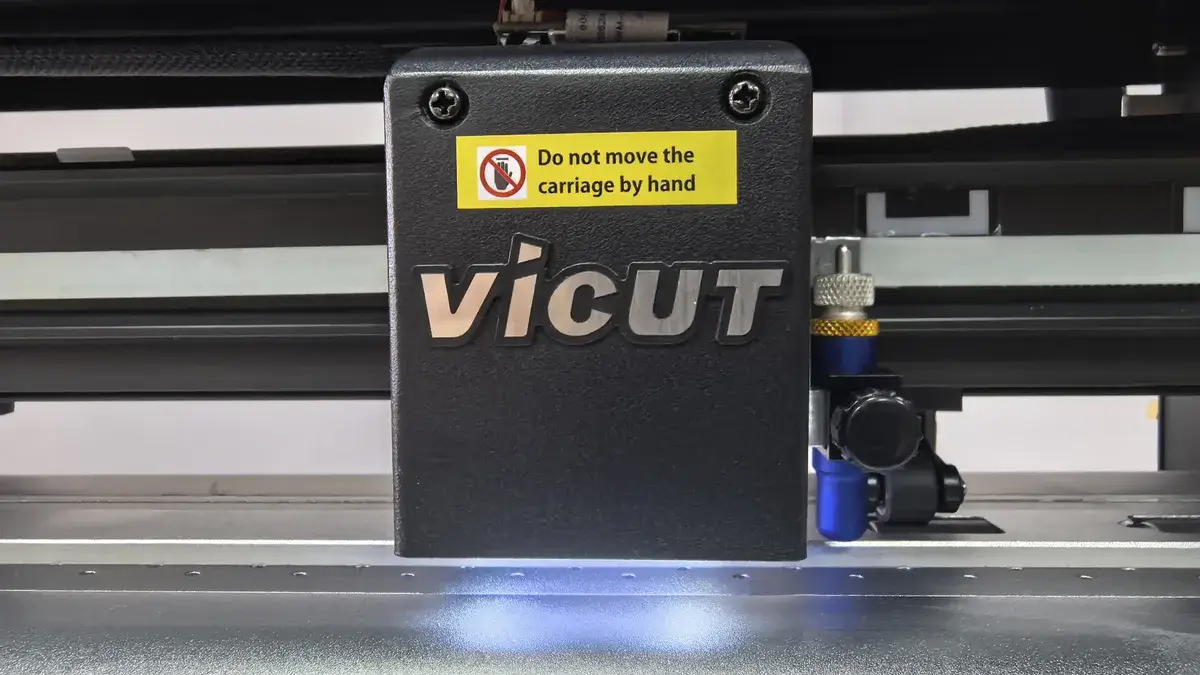

    • Moving Carriage
      Moving Carriage

      The moving carriage supports smooth blade movement during cutting, helping users achieve stable contour cutting for vinyl, stickers, and graphic materials.

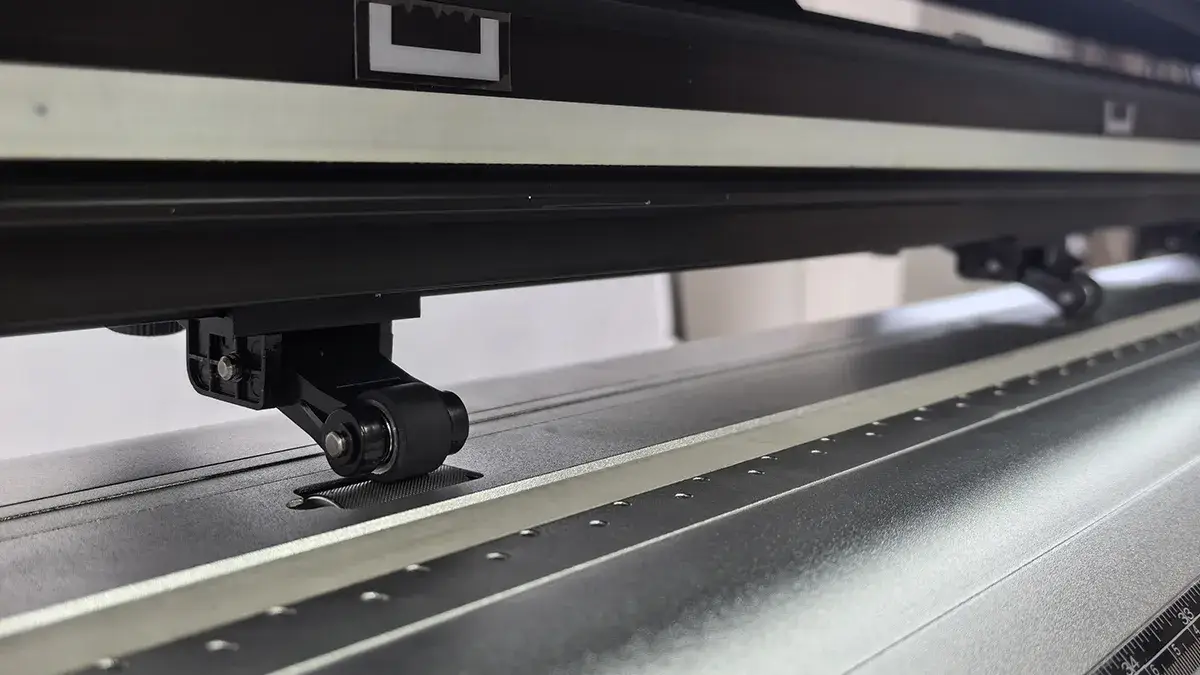

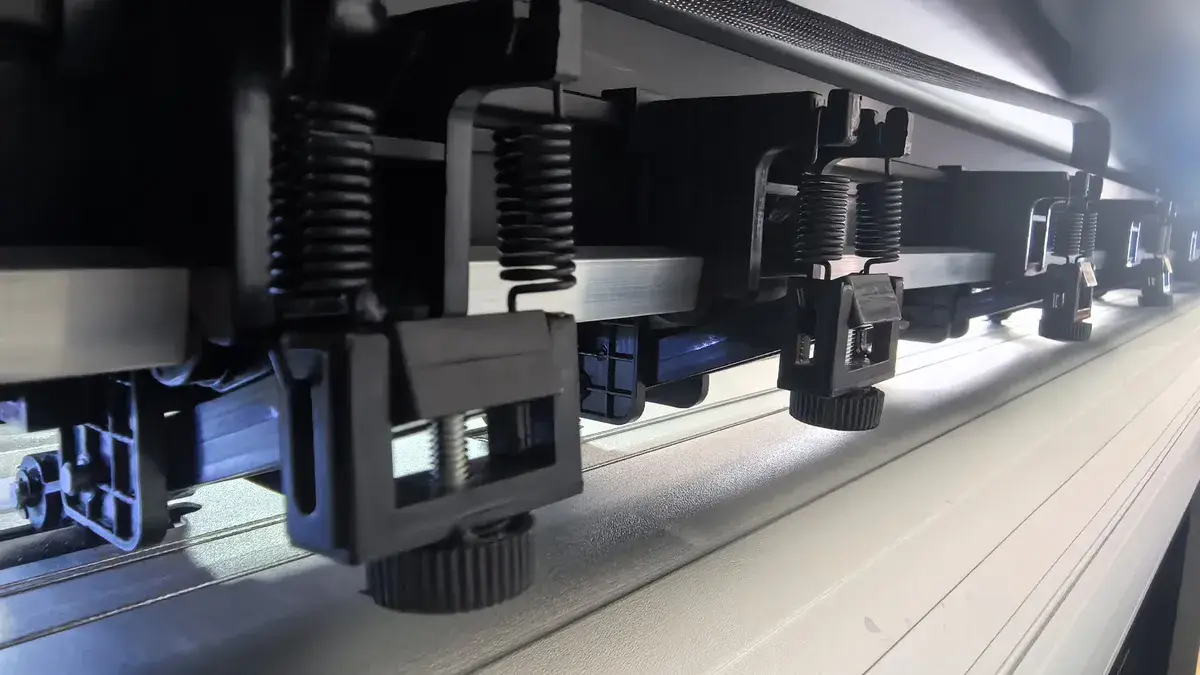

    • Steel Grit Roller and Pressure Roller
      Steel Grit Roller and Pressure Roller

      The steel grit roller and pressure roller hold the media firmly during feeding, supporting accurate tracking and reducing material shift during long cutting jobs.

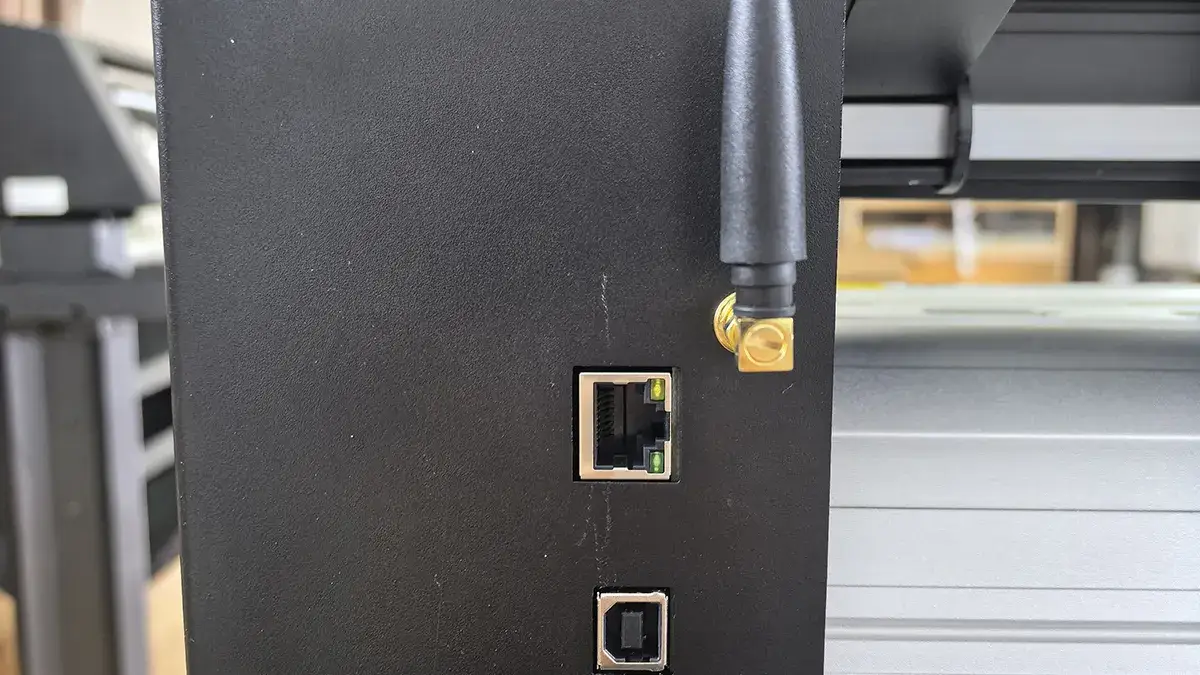

    • Multiple File Transfer Interfaces
      Multiple File Transfer Interfaces

      Multiple file transfer options make it easier to load cutting files in different production environments, giving operators more flexibility in daily use.

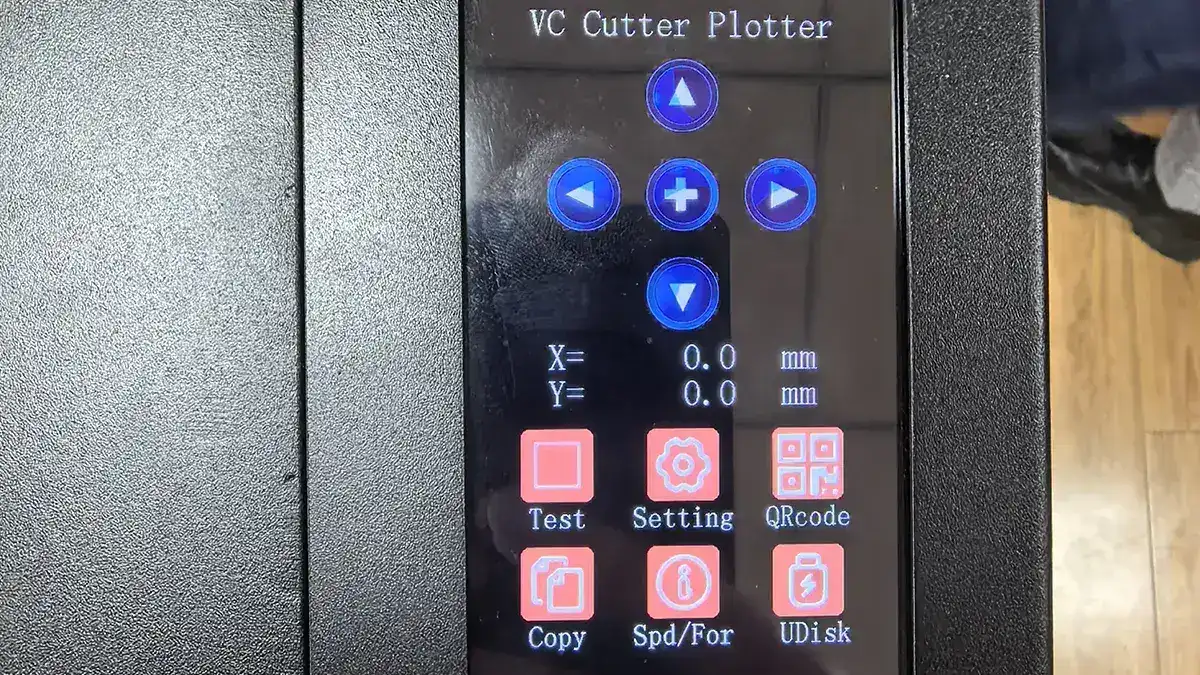

    • Touch Control Screen
      Touch Control Screen

      The touch control screen provides a clear and simple interface for adjusting settings, helping operators manage cutting tasks more efficiently.

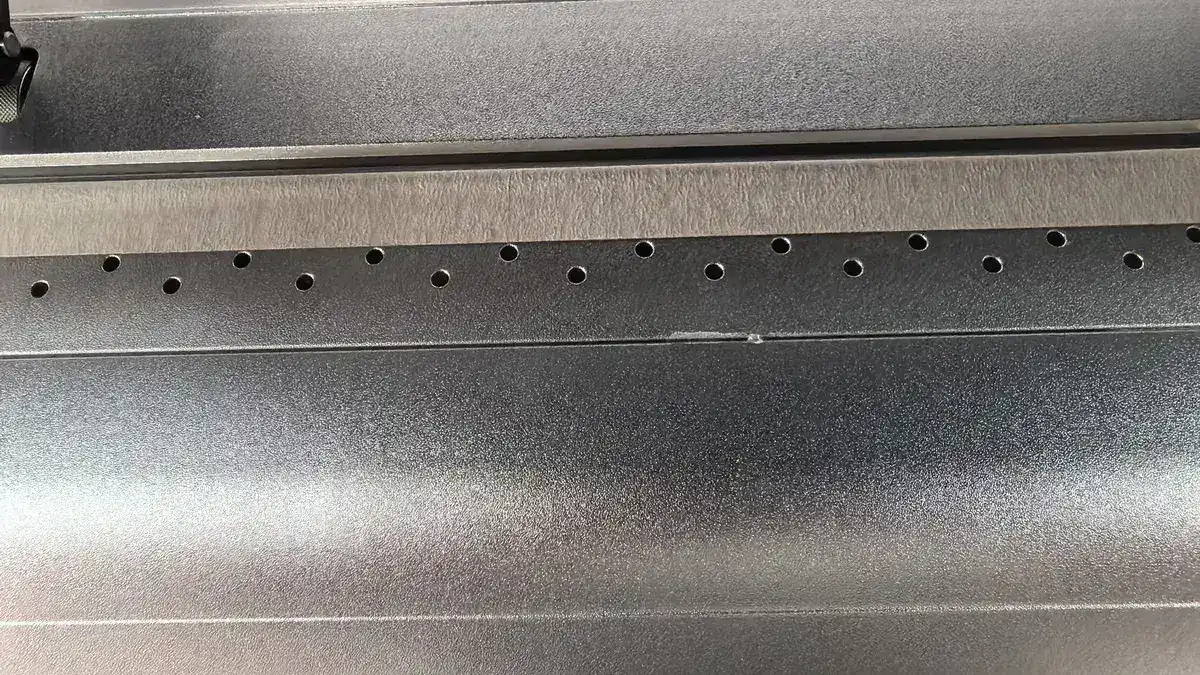

    • Suction Holes
      Suction Holes

      Suction holes help keep media flatter during cutting, supporting cleaner results on films, vinyl, and adhesive materials.

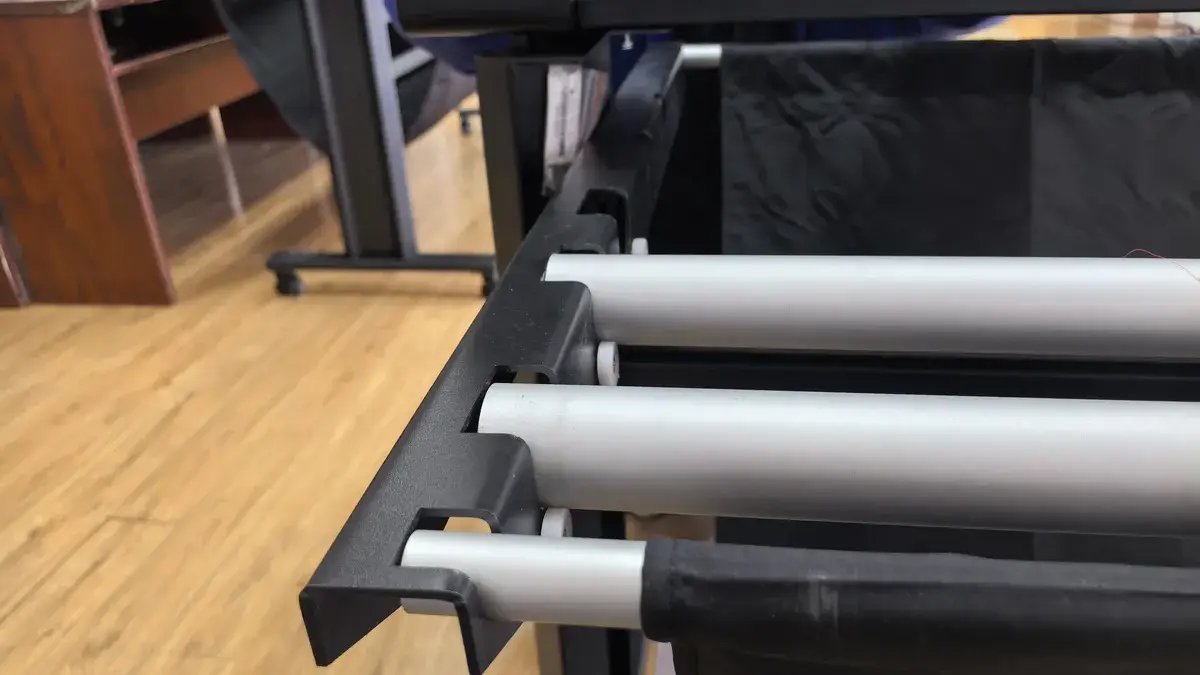

    • Paper Feeding System
      Paper Feeding System

      The feeding system moves media smoothly through the cutter, helping maintain stable production for large-format graphics and batch cutting work.

    • Paper Pressing Device
      Paper Pressing Device

      The paper pressing device helps secure the media during operation, reducing the risk of movement and improving cutting consistency.

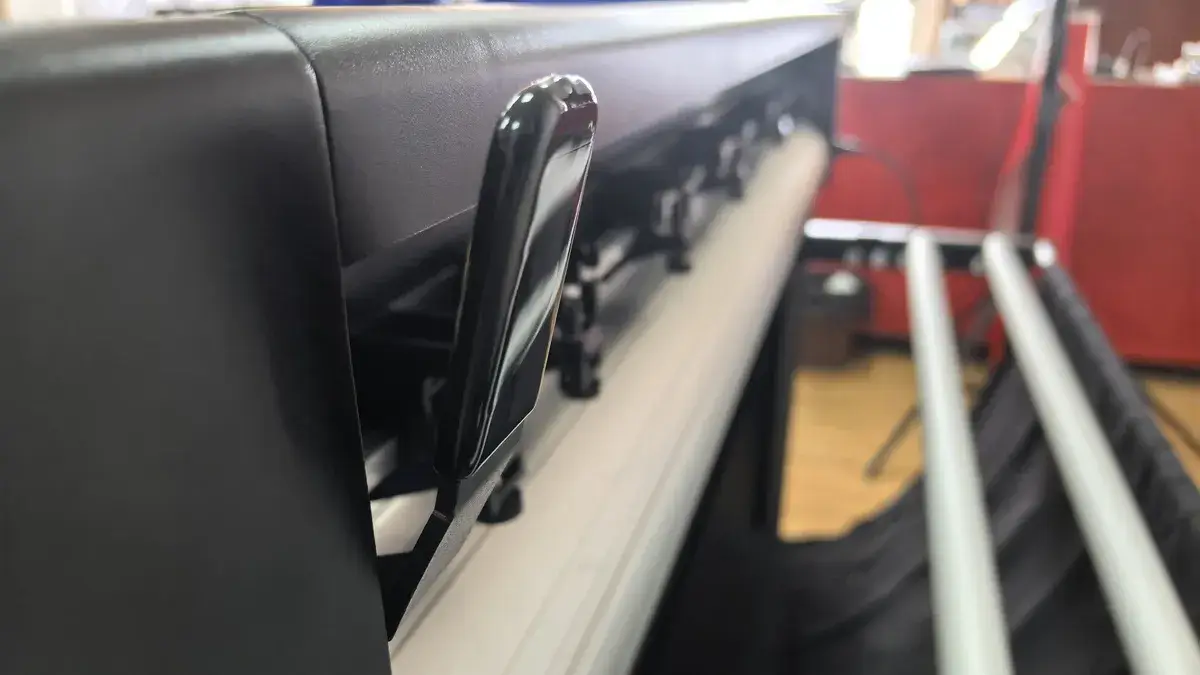

    • Press Bar
      Press Bar

      The press bar adds extra media control during feeding and cutting, helping operators keep materials properly positioned.

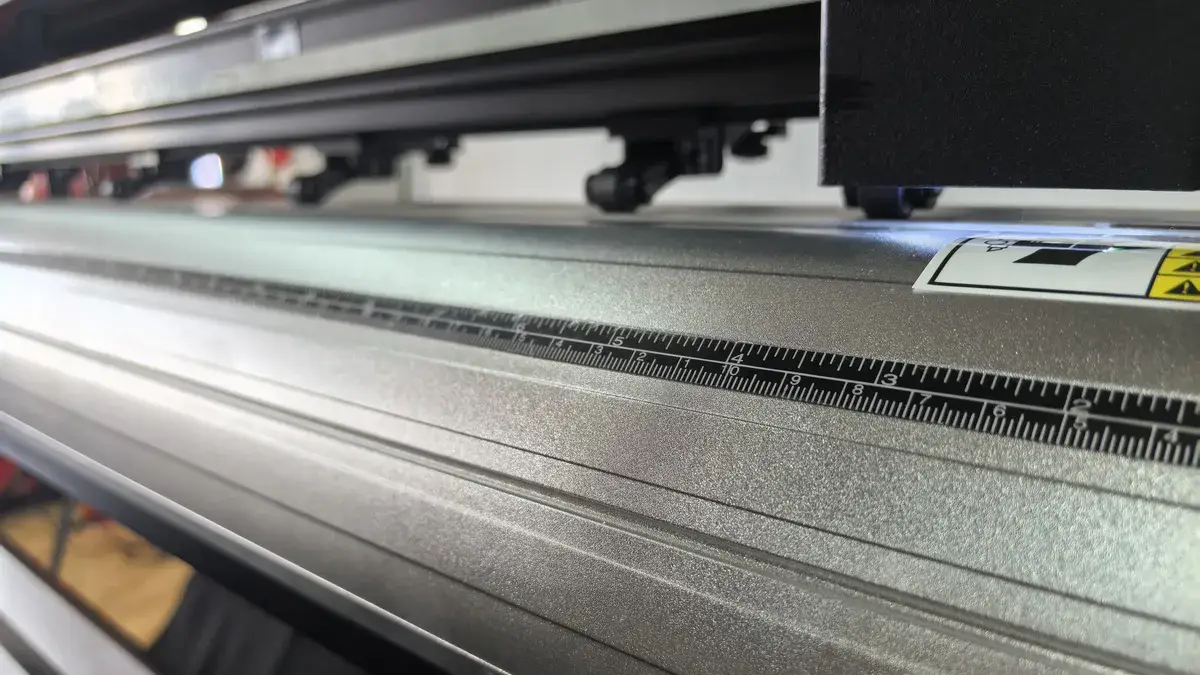

    • Graduation Scale
      Graduation Scale

      The graduation scale makes media alignment easier, helping operators position materials more accurately before cutting.

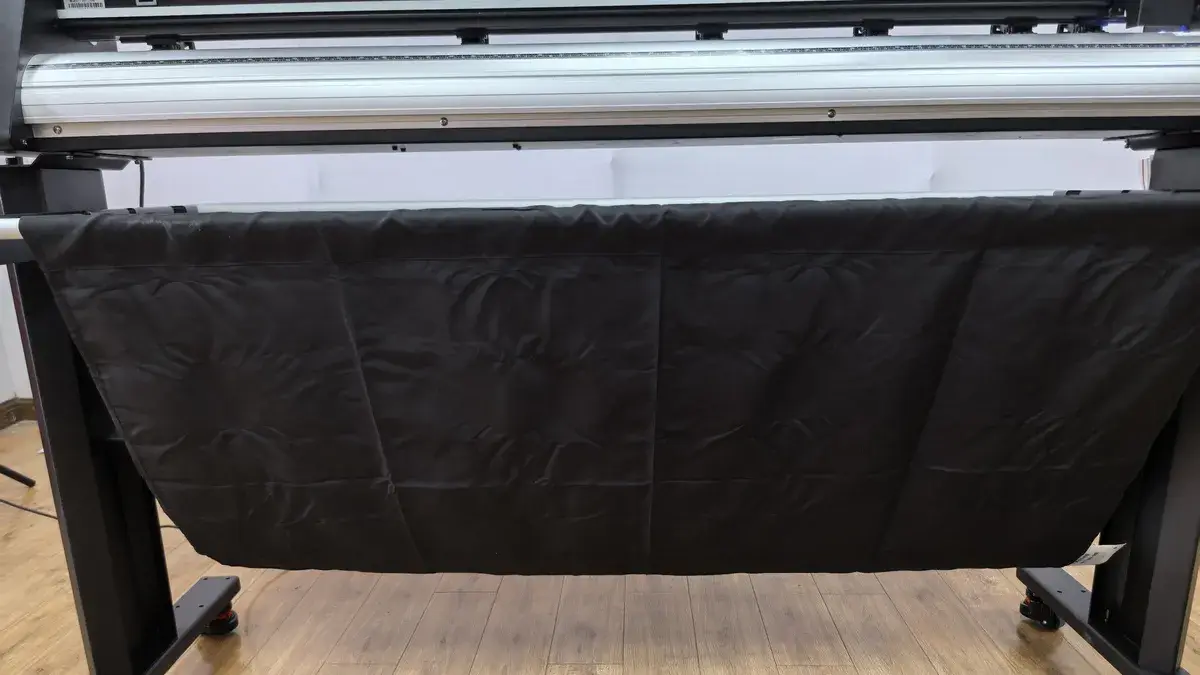

    • Catch-Up Basket
      Catch-Up Basket

      The catch-up basket collects finished media after cutting, keeping the output cleaner and easier to manage.

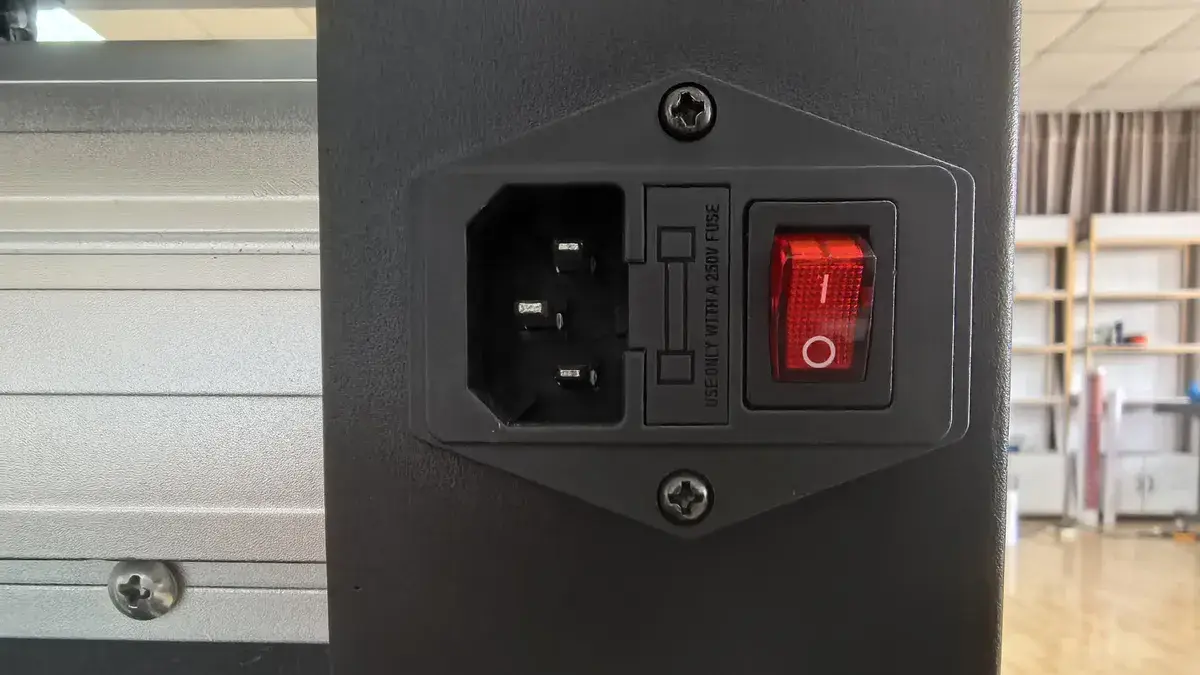

    • Switch Button and Power Interface
      Switch Button and Power Interface

      The switch button and power interface are positioned for straightforward machine startup and daily operation.
