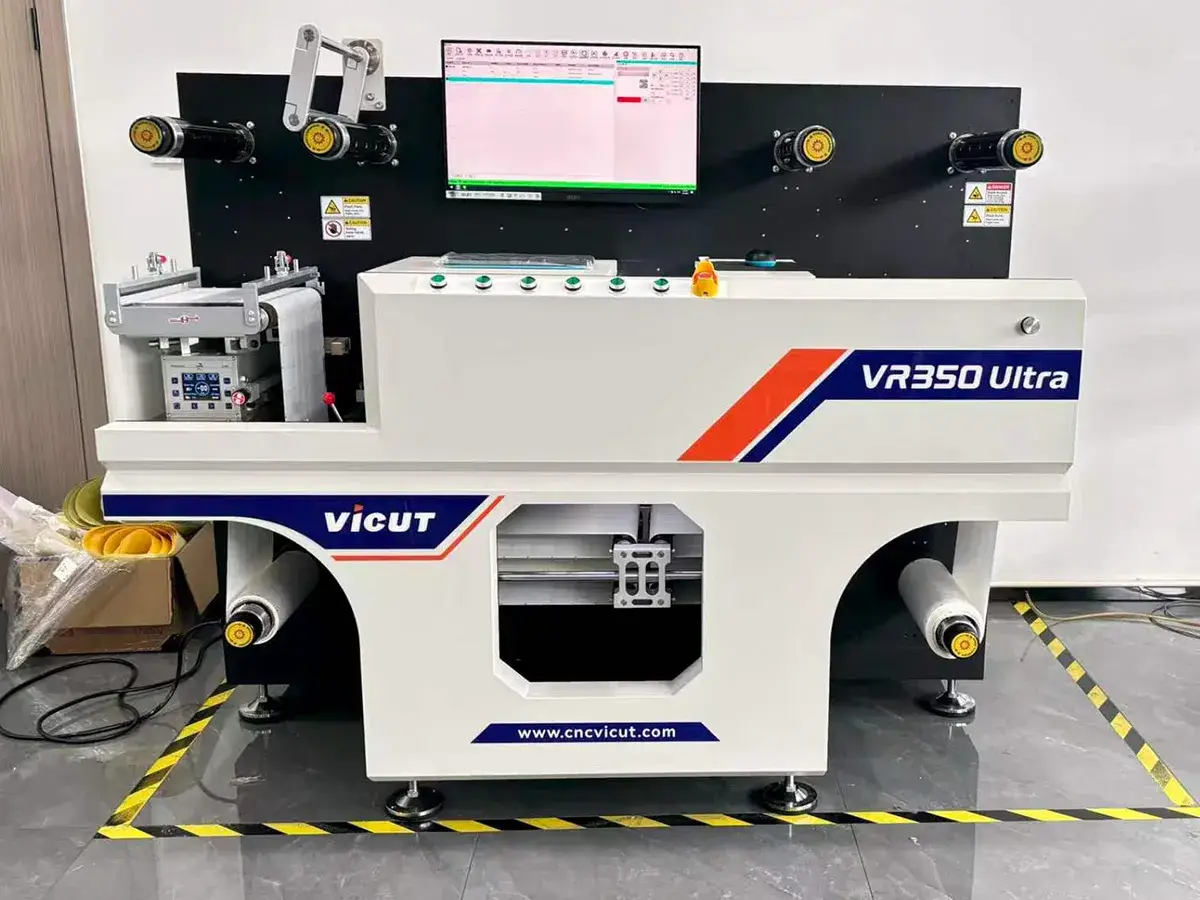

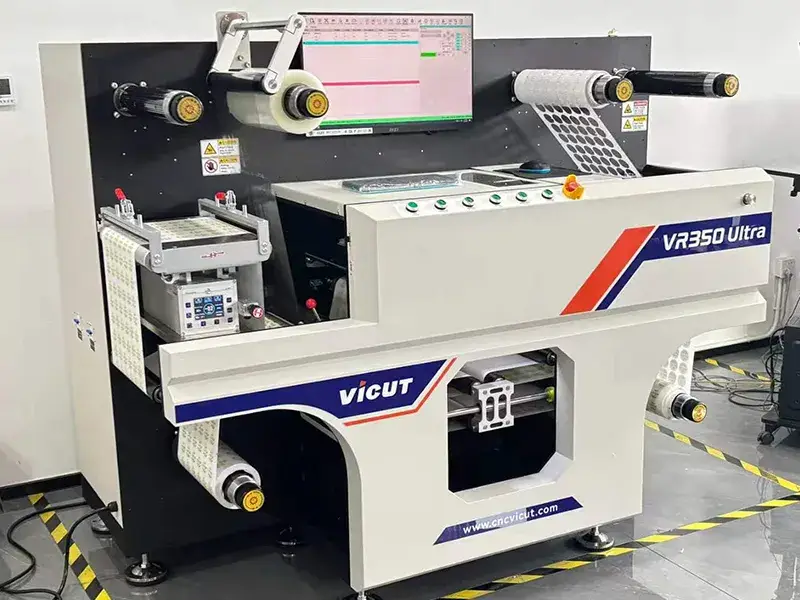

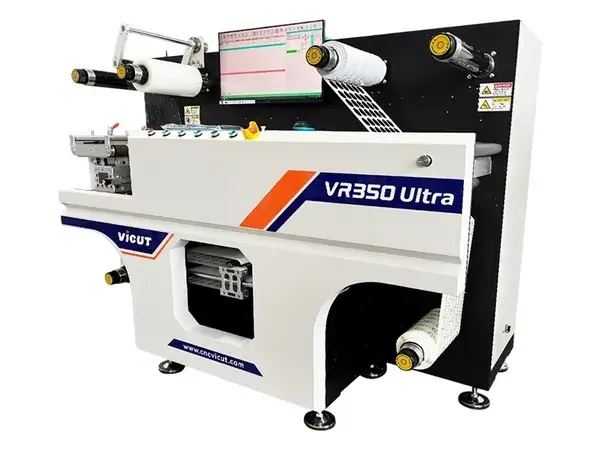

VR350 Ultra Multiple Blades Digital Label Cutter
Short-to-medium-run label production often requires more than basic cutting capacity. The multiple blades digital label cutter is built for businesses that need higher efficiency, flexible job handling, and stable roll-to-roll finishing for printed labels, stickers, and film materials.
With multiple cutting heads, AI-controlled automatic head distance adjustment, servo controls cutting pressure, QR code or mark reading, and integrated laminating, waste removal, slitting, and rewinding, this label cutting solution helps operators handle more complex label jobs with less manual setup. It supports accurate cutting for different label shapes and makes diversified production easier to manage.
The system equipped with standard six cutting heads and reaches a maximum die-cutting speed of 10m/min, making the multiple blades digital label cutter a strong choice for growing label producers, print shops, and packaging businesses that need both flexibility and production stability. Its intuitive software and inline scanner also support automatic job switching, helping users process mixed orders more smoothly.
- Short-To-Medium-Run Label Finishing: Suitable for businesses that need stable production for small and medium batches with different label shapes and job requirements.
- Roll-To-Roll Printed Label Cutting: Supports die cutting and slitting for printed roll labels, helping users complete label finishing in a more efficient workflow.
- Mixed-Order Label Production: QR code or mark reading supports automatic job switching, making diversified label jobs easier to manage.

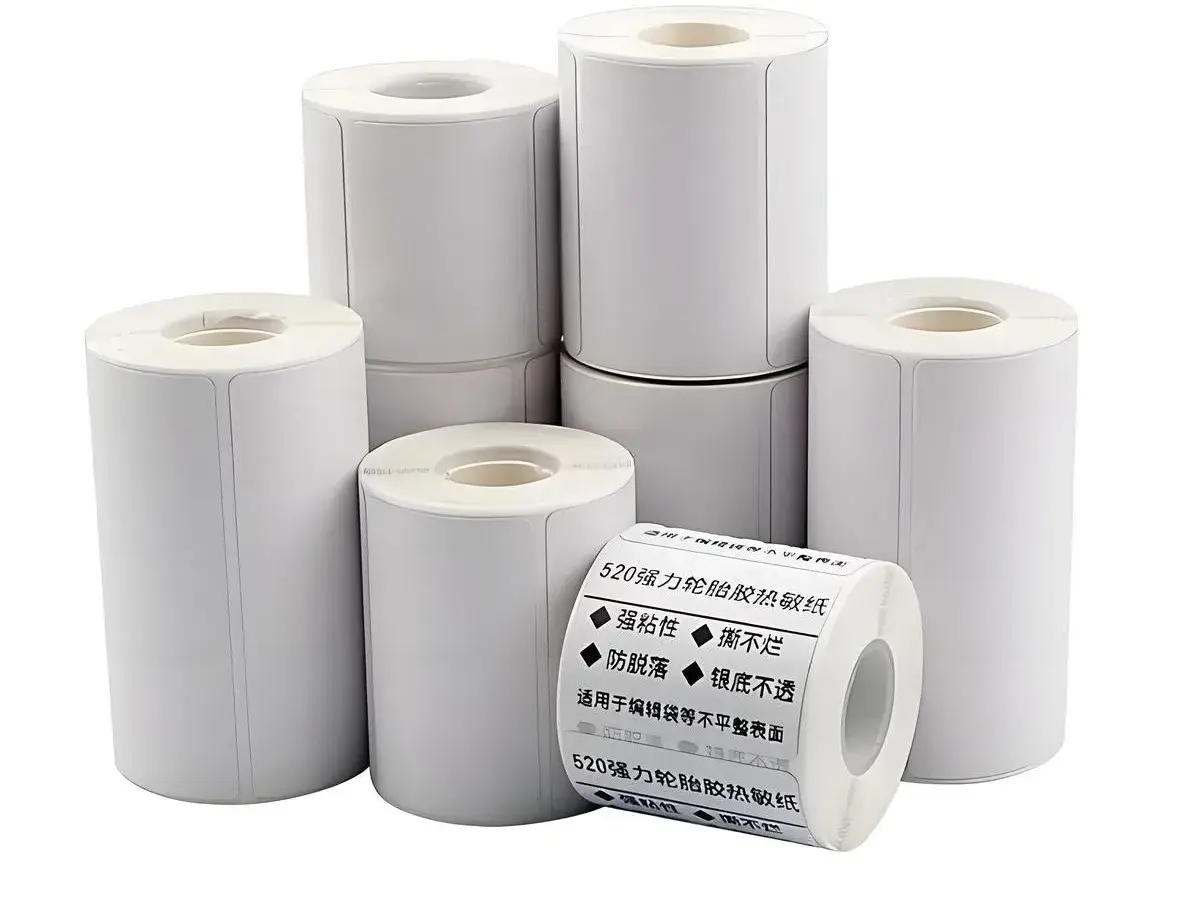

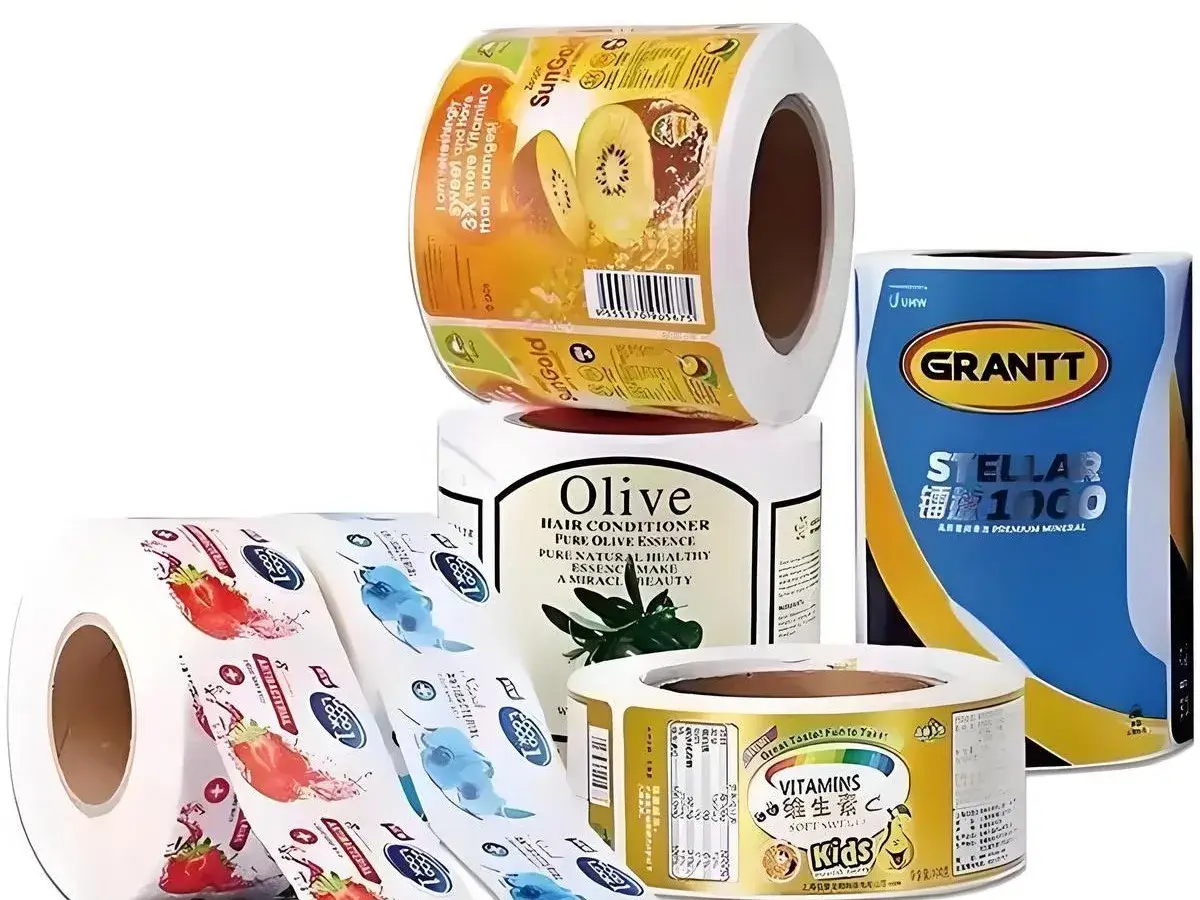

- Common Label Applications: Suitable for blank labels, ink labels, chemical labels, beverage labels, bottled water labels, coffee labels, cosmetic labels, home appliance labels, toiletries labels, gum labels, wine labels, and more.
- Compatible Materials: Works with self-adhesive stickers, paper, PP, BOPP, PET, PVC, and other roll label materials.
- Ideal Users: A practical option for label producers, print shops, packaging businesses, and companies that need flexible roll label finishing with higher cutting capacity.
| Model Name | |
| No. of Cutting Heads | 6 cutting heads (standard) |
| Working Speed | 10m/mim (cut 7x15cm square labels, 392pcs per minute.) |
| Max. Label Length | 600mm (standard), 1100mm (extended) |
| Cutting Media Width | 150–350 mm |
| Max. Roll Diameter | Ø 450 mm |
| Max. Laminating Roll Diameter | Ø 300 mm |
| Max. Matrix Roll Diameter | Ø 350 mm |
| Max. Rewinder Roll Diameter. | Upper: Ø 350 mm / Lower: Ø 450 mm |
| Operation System | Embedded PC with AI software & Large LCD monitor |
| Heads Distance Adjustment | Automatic (simultaneous adjustment between all heads) |
| Unwinder & Rewinder | 1 Unwinder / 2 Rewinders (mechanical expansion shafts) |
| Registration Marks Type | Dot marks + serial numbers / QR codes |
| Positioning Device | Photoelectric eye + CCD camera |
| Job Exchange Function | Yes |
| Data Transfer Method | Direct link to PC |
| Die-cutting Precision | ± 0.1 mm (repeatability) |
| Slitting Width | 10–310 mm |
| Slitting System | Rotary slitting system (4 standard / Max. 15 blades) |
| Slitting Speed | Max. 60m/min |
| Slitting Precision | ± 0.1 mm |
| File Format | PLT, PDF |
| Working Voltage | 100–240 VAC, 50/60 Hz, 1 kW |
| Machine Dimensions | 1800 × 1080 × 1460 mm (L × W × H) |
| Packing Size | 2160 × 1300 × 1970 mm |
| Weight (G.W. / N.W.) | 1140 kg / 960 kg |
| Optional | Additional slitting units / Inline sheet-cutting system / Laminating liner system |
-

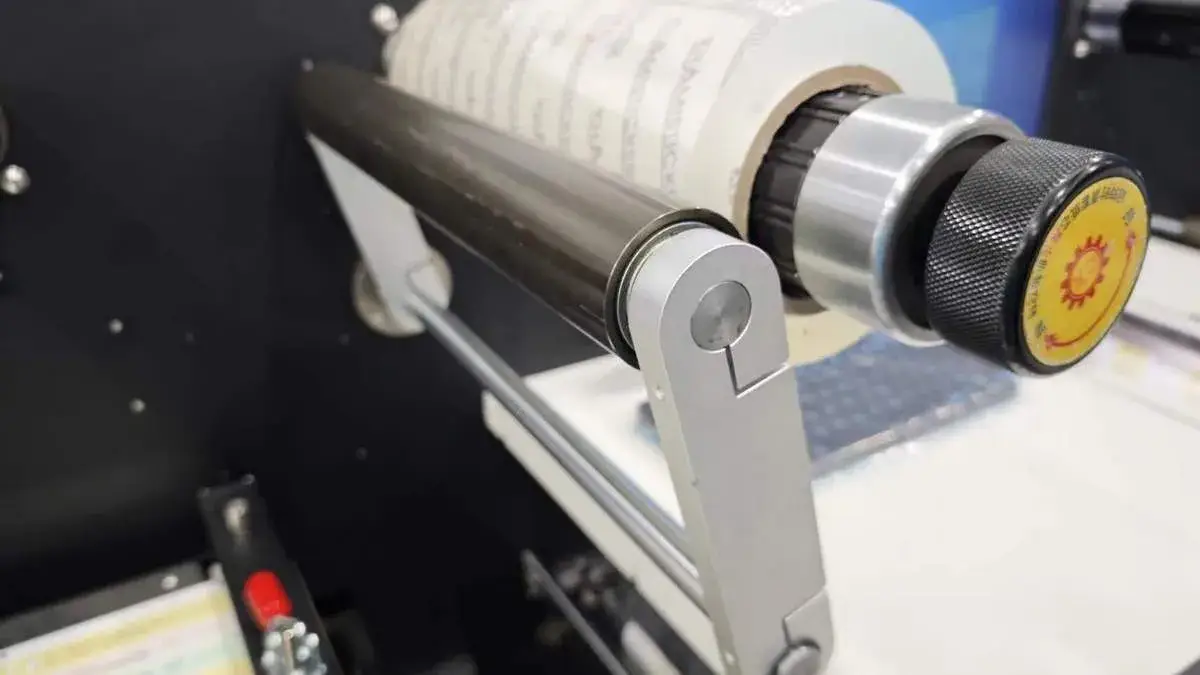

Unwinding SystemThe unwinding system supports roll media up to 450 mm in diameter, allowing users to handle larger rolls and reduce frequent material changes during production.
-

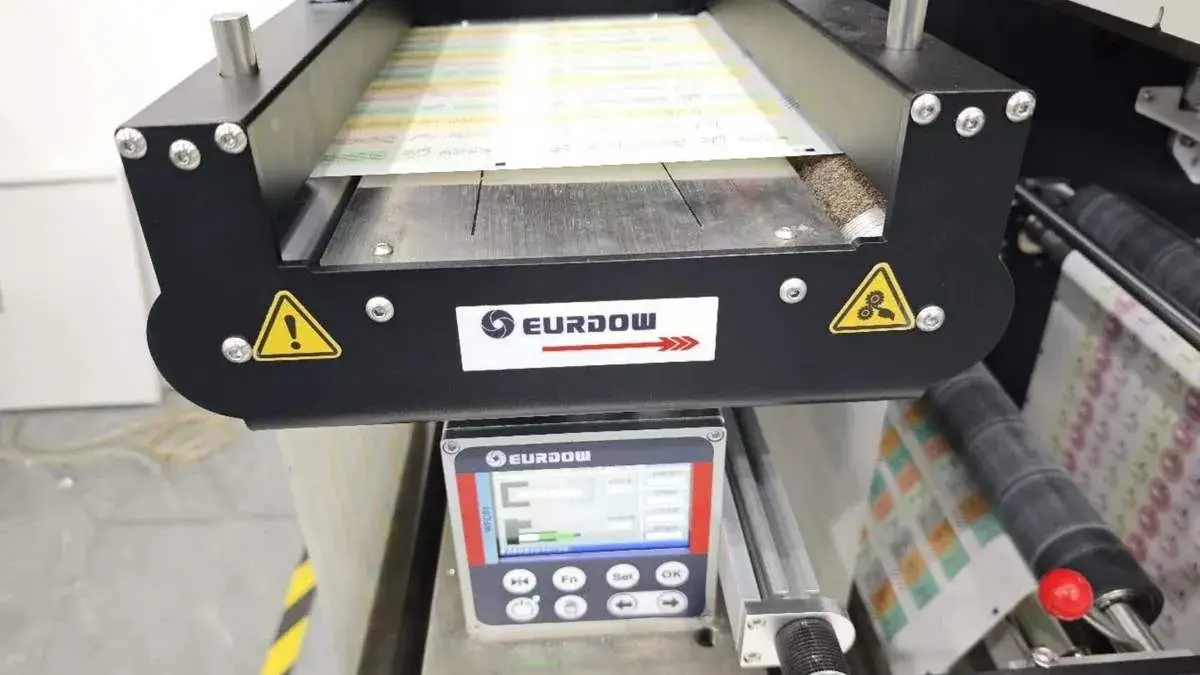

High-Precision Web Guide Feeding SystemThe web guide feeding system keeps roll media aligned as it moves through the process, helping maintain stable cutting accuracy and cleaner finished label rolls.
-

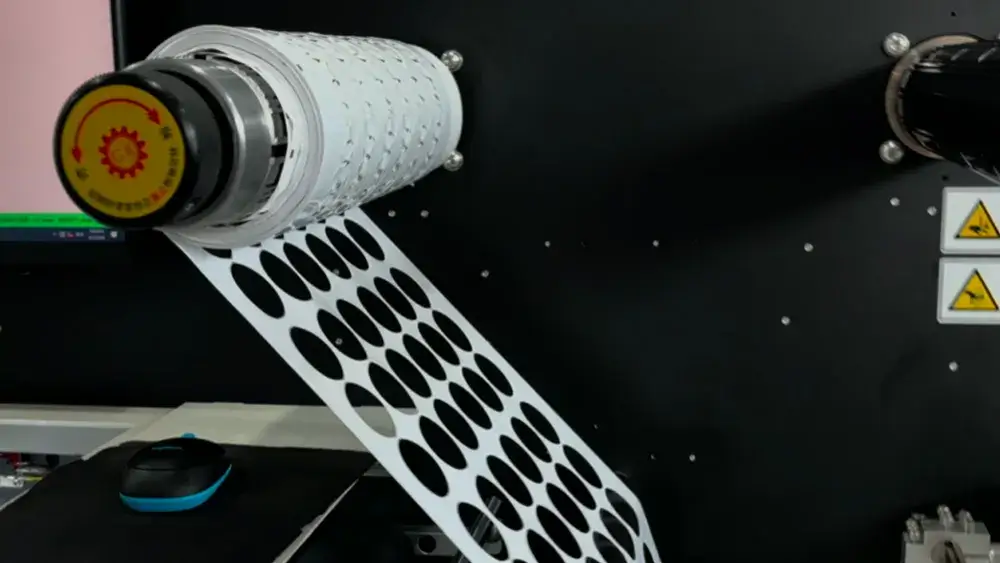

Waste Removal SystemThe waste removal system separates unwanted matrix after die cutting, reducing manual handling and keeping the label finishing workflow more efficient.
-
Cold Lamination Before Die CuttingStandard cold lamination protects printed labels before cutting, improving surface durability and giving finished labels a more professional look. The laminating roll supports a maximum diameter of 350 mm.
-
Laminating Liner SystemThe laminating liner system uses an additional rewinding shaft to remove the backing liner from laminating materials. This supports higher-grade lamination and helps produce more durable, premium finished labels.
-

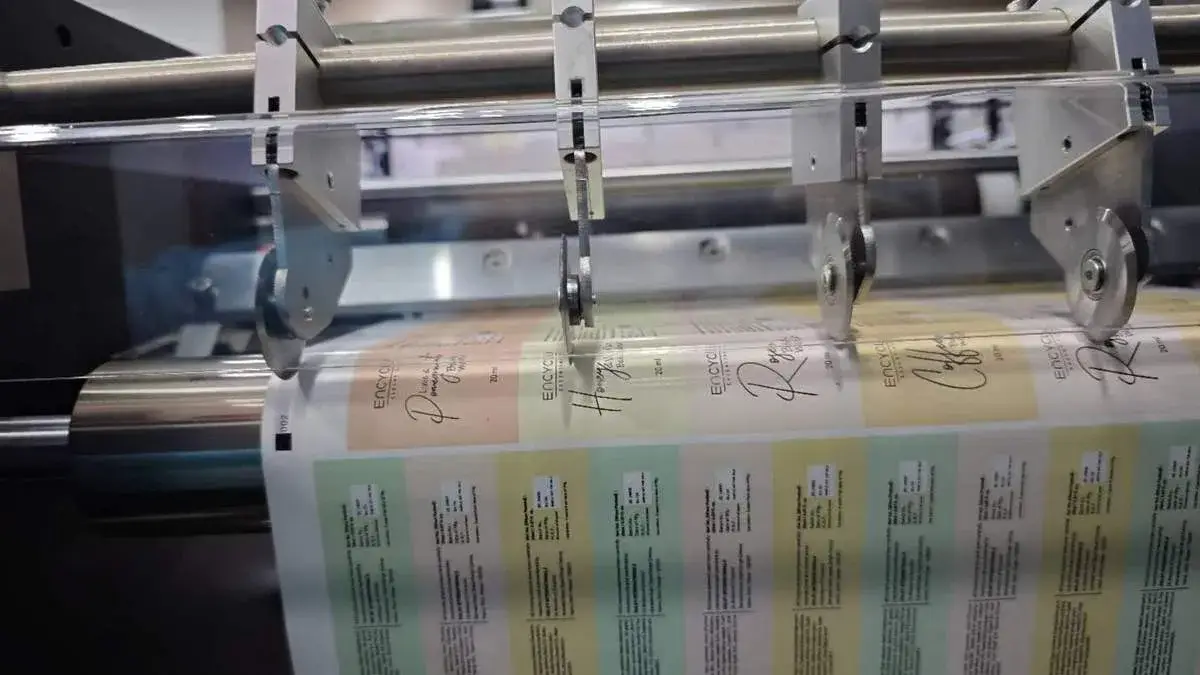

Precision Slitting SystemThe precision slitting system supports up to 15 slitting blades, allowing users to divide finished labels into multiple roll widths according to order requirements.
-

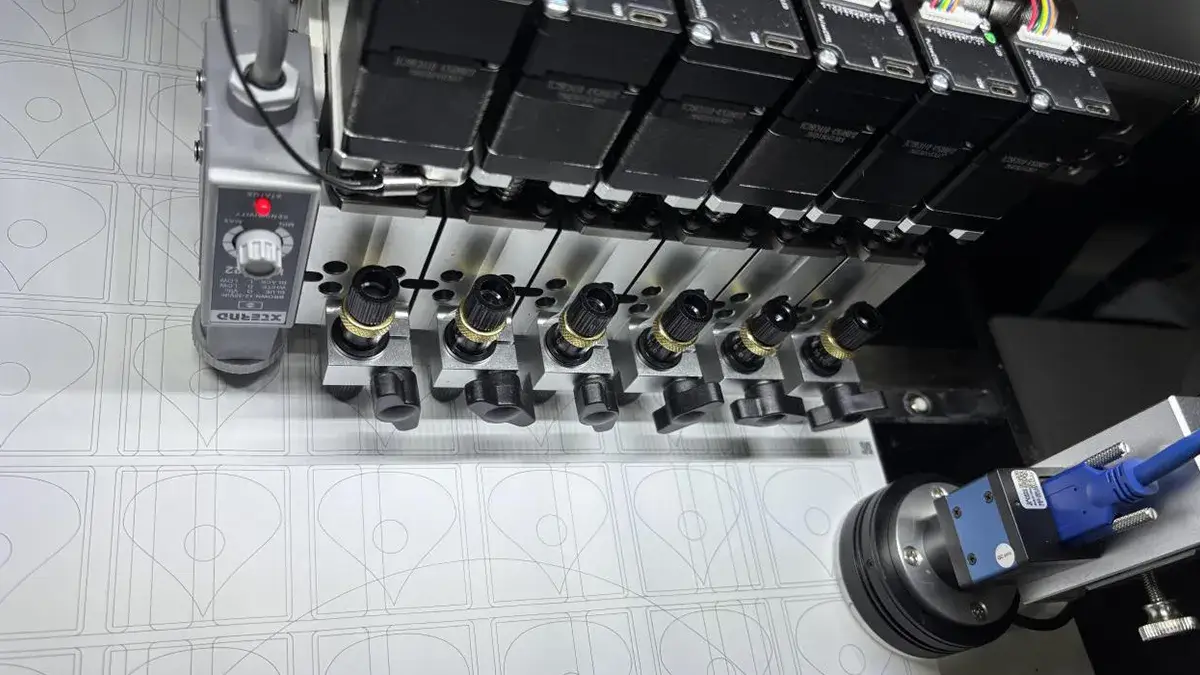

Servo Control Digital Die-Cutting SystemEquipped with 6 cutting heads, the system features automatic cutting head spacing adjustment to adapt to different label quantities and shapes. Servo motors precisely control the cutting force of each head, and the cutting depth can be automatically set due to the media thickness.
-

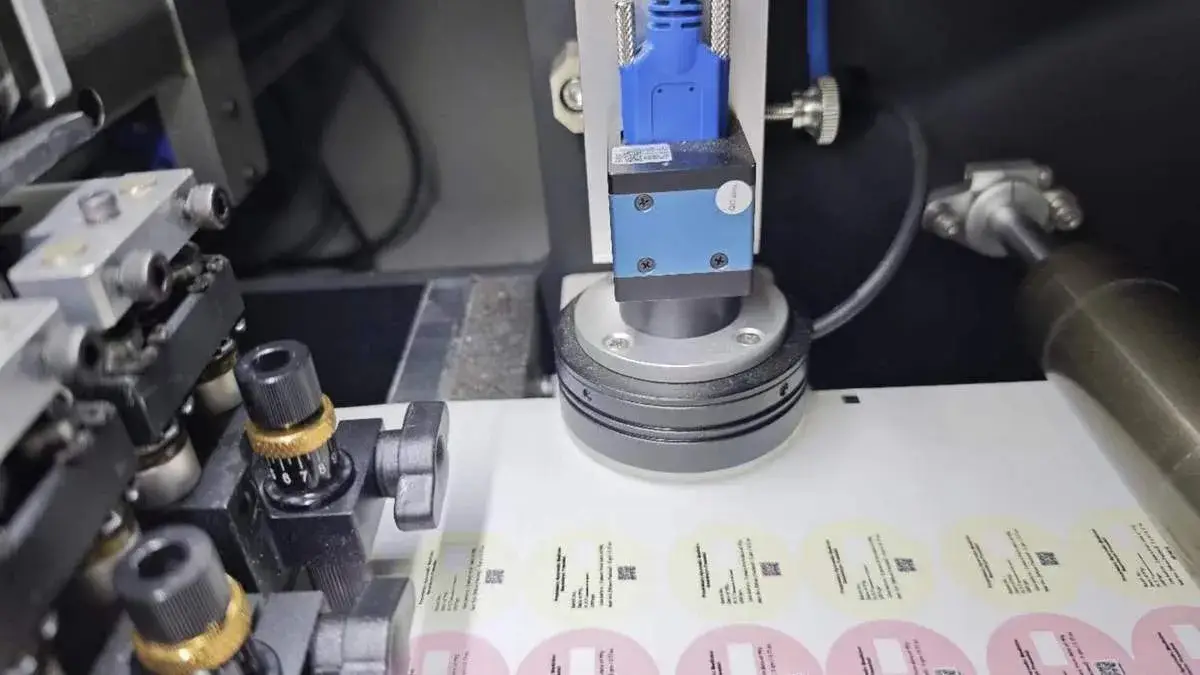

CCD Identification SystemThe CCD identification system reads marks for accurate positioning, helping operators process printed labels with cleaner contour cutting results.
-

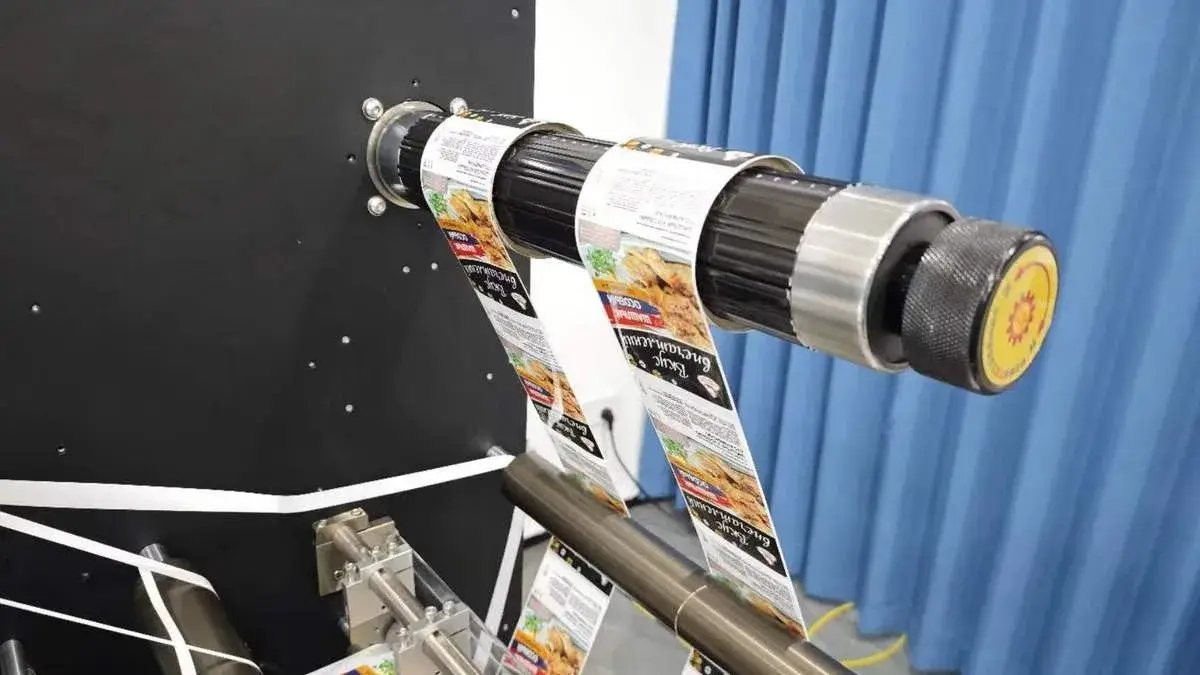

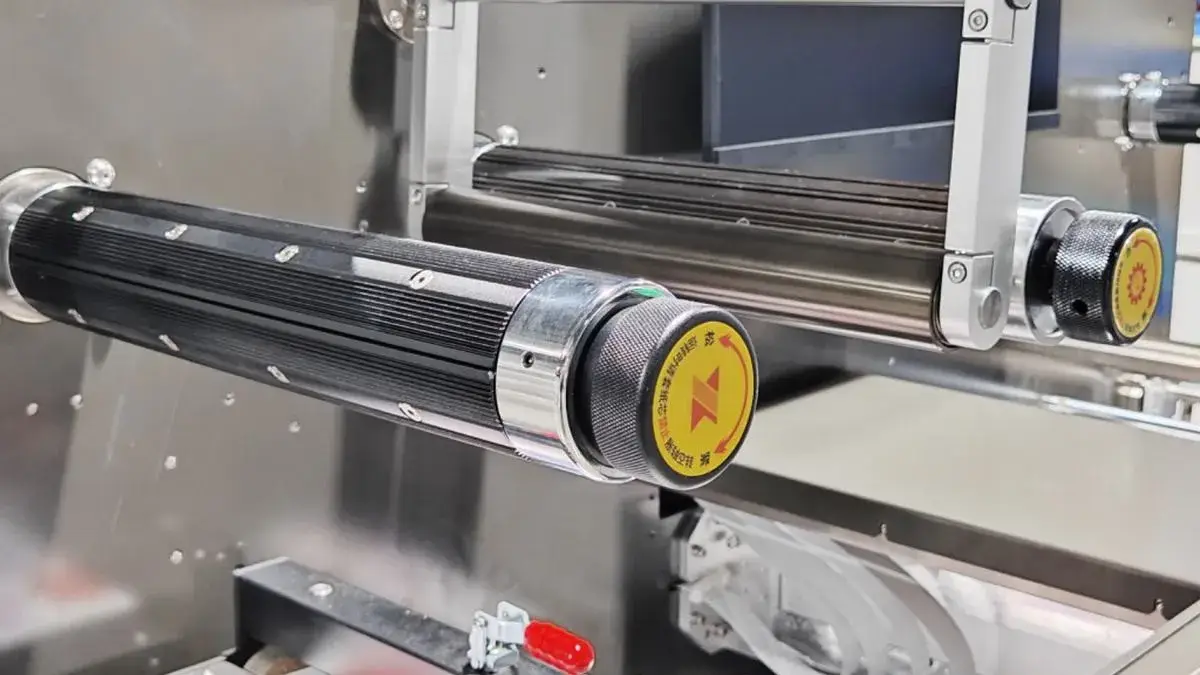

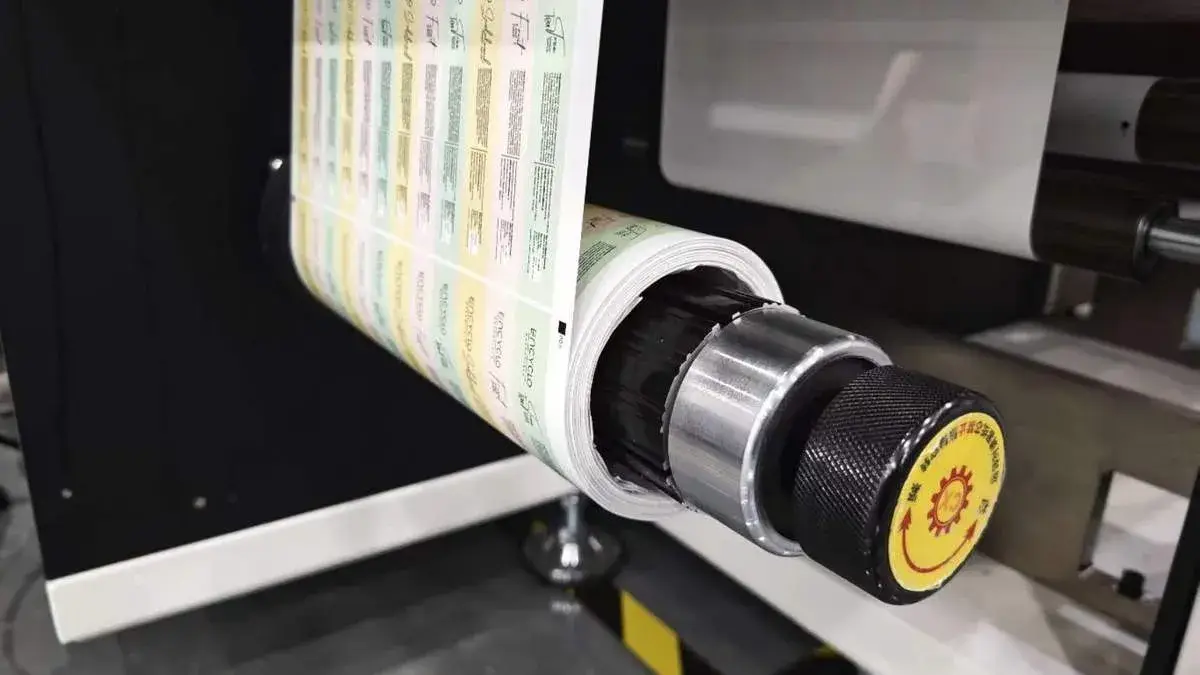

Dual Rewinding SystemTwo upper and lower rewinding shafts collect finished label rolls after slitting, making the output easier to organize, handle, and package.
-

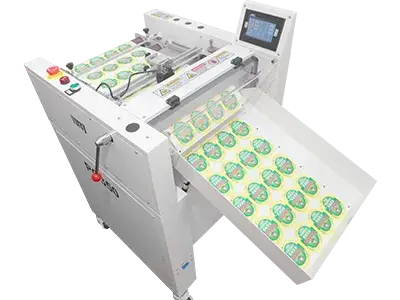

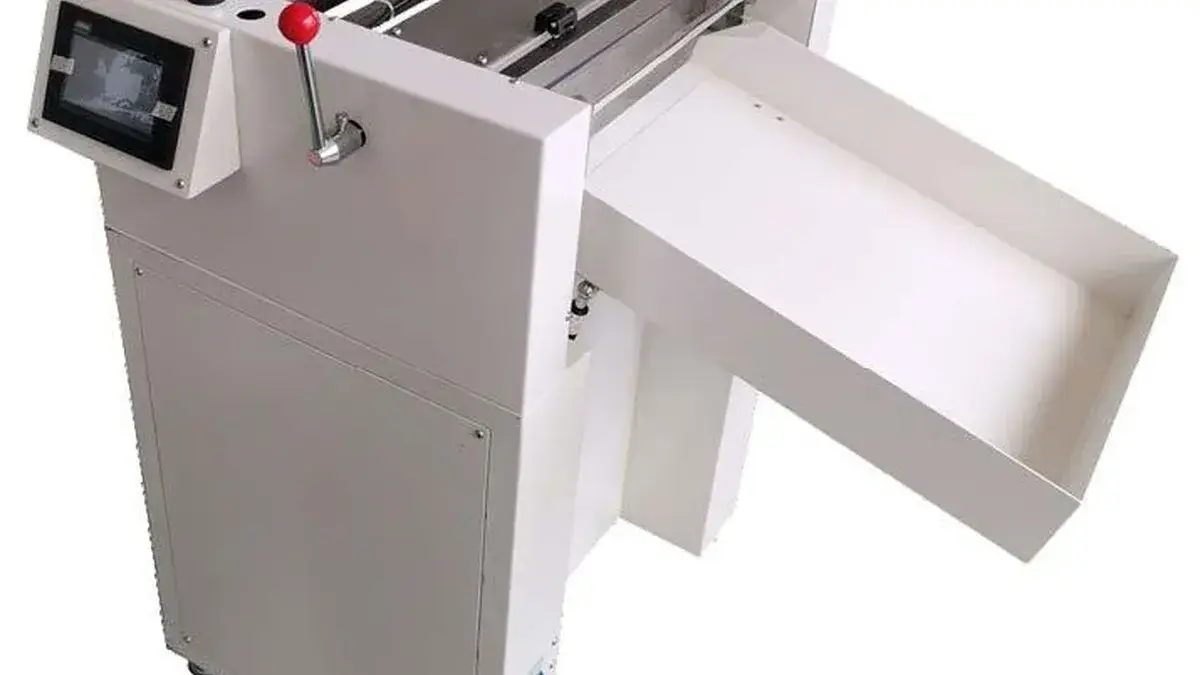

Optional RS350/RS350F Roll-to-Sheet CutterThe roll-to-sheet cutter can work inline with the multiple blades digital label cutter to automatically cut finished roll media into sheets after waste removal, adding more flexibility for sheet label and short-run order requirements.
