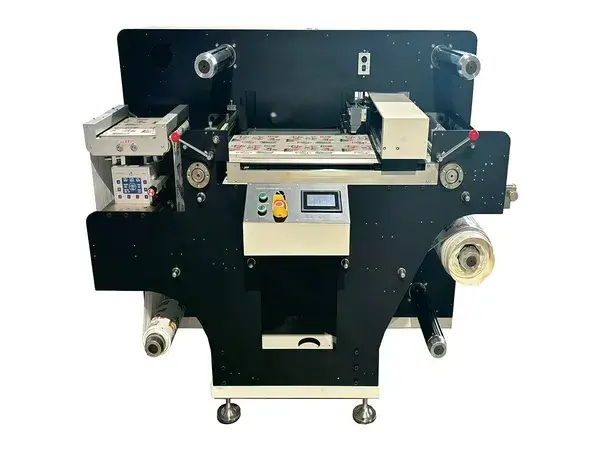

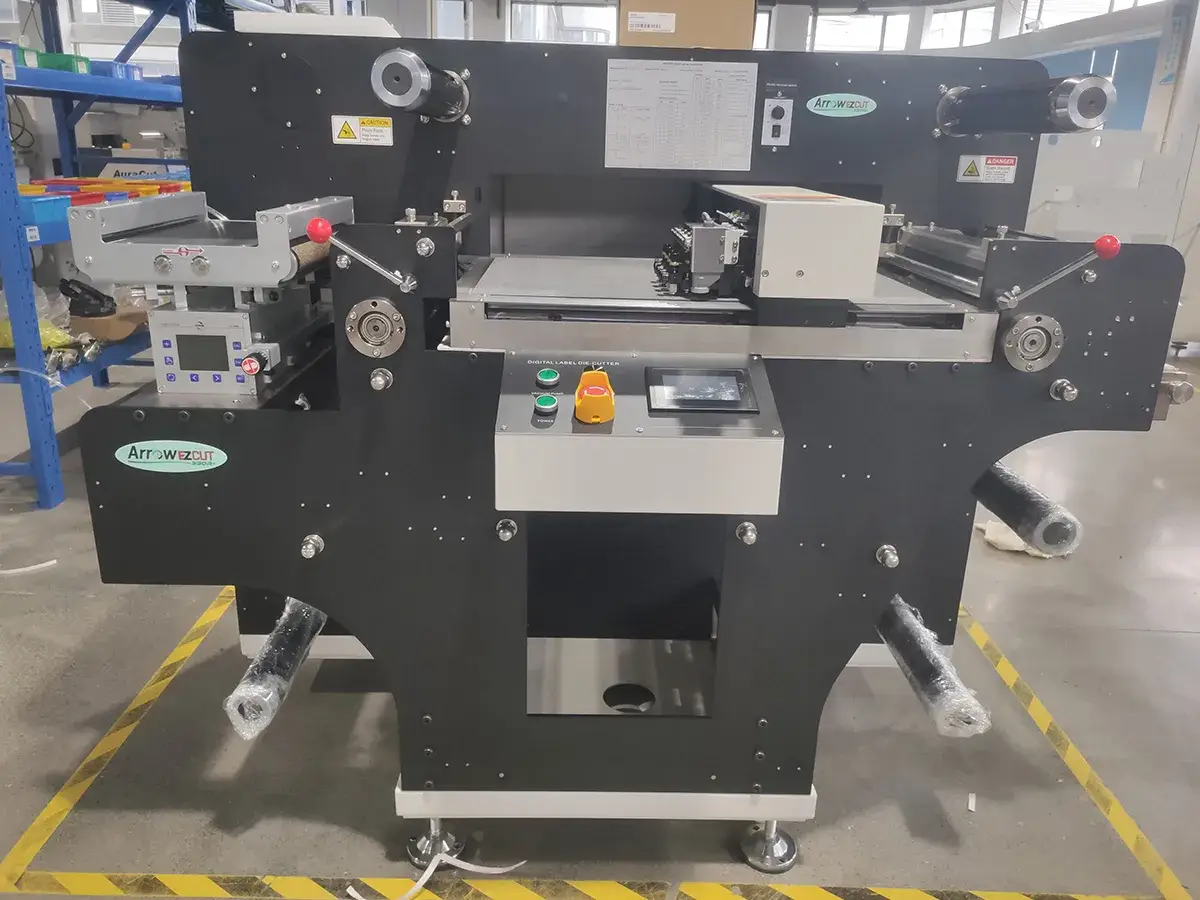

VR320XDigital Label Finishing System
Growing label production often requires more flexibility than a simple entry-level cutter can provide, but not every business is ready for a large industrial line. The digital label finishing system offers a practical middle-ground solution for small and medium label producers that need higher finishing capacity, flexible job handling, and controlled investment.
By combining flatbed and roll-to-roll processing, the system allows users to handle different label shapes, materials, and production needs in one workflow. Laminating, digital die cutting, slitting, and rewinding are integrated to reduce separate processing steps and make on-demand label finishing easier to manage.
Since no cutting dies are required, users can respond faster to short-run orders, custom label designs, and frequent job changes while keeping setup costs under control. For growing print shops, label converters, and packaging businesses, this all-in-one label finishing solution supports higher production efficiency, wider service options, and consistent finished label quality.
- Small and Medium-Scale Label Production
Suitable for businesses that need flexible label finishing for short runs, repeat orders, and growing production volumes.
- On-Demand Label Finishing
Supports custom label jobs without cutting dies, helping users handle frequent design changes more efficiently.
- Common Label Applications
Suitable for blank labels, ink labels, chemical labels, beverage labels, bottled water labels, chili sauce labels, coffee labels, cosmetic labels, home appliance labels, toiletries labels, gum labels, wine labels, and more.
- Compatible Materials
Works with self-adhesive stickers, paper, PP, BOPP, PET, PVC, and other roll label materials.
- Ideal Users
A practical choice for label producers, print shops, packaging businesses, and companies that need flexible in-house label finishing.
| Model Name | |
| Max. Roll Diameter | Ø 450 mm |
| Cutting Media Width | 40–340 mm |
| Max. Label Width | 330 mm |
| Max. Label Length | 400 mm (Up to 1200 mm with segmentation cut) |
| Min. Label Length | 10 mm |
| Min. Distance between Labels | 2 mm |
| Min. Distance from Mark to Edge | 2 mm |
| Min. Distance between Jobs | 2 mm |
| Max. Die-cutting Speed | 6 m/min (Subject to label shape and size) |
| No. of Die-cutting Heads | 4 Units (Standard) |
| Die-cutting Blades | Tungsten steel blades |
| Die-cutting Precision | ±0.1 mm (repeatability) |
| Die-cutting Mark Tracking Mode | Non-mark, single mark, dual marks |
| Slitting Width | 10–310 mm |
| Slitting Blades | 4 standard (expandable up to 15 blades) |
| Slitting Speed | Max. 100 m/min |
| Slitting Precision | ±0.1 mm |
| Data Interface | USB 2.0, Ethernet 10/100Base-T, GPIO |
| Working Voltage | 110–240 VAC, 50/60 Hz, 1 kW |
| Machine Dimensions (L × W × H) | 160 × 100 × 136 cm |
| Weight (G.W. / N.W.) | Machine: 670 kg / 580 kg Vacuum pump: 16 kg / 10 kg |
| Packing Size | Machine: 175 × 110 × 155 cm Vacuum pump: 450 × 450 × 500 mm |
| Optional Functions | Multiple slitting units |
| Lamination backing paper disposal system | |
| Stand-alone Roll-to-sheet Cutter RS350 |
-

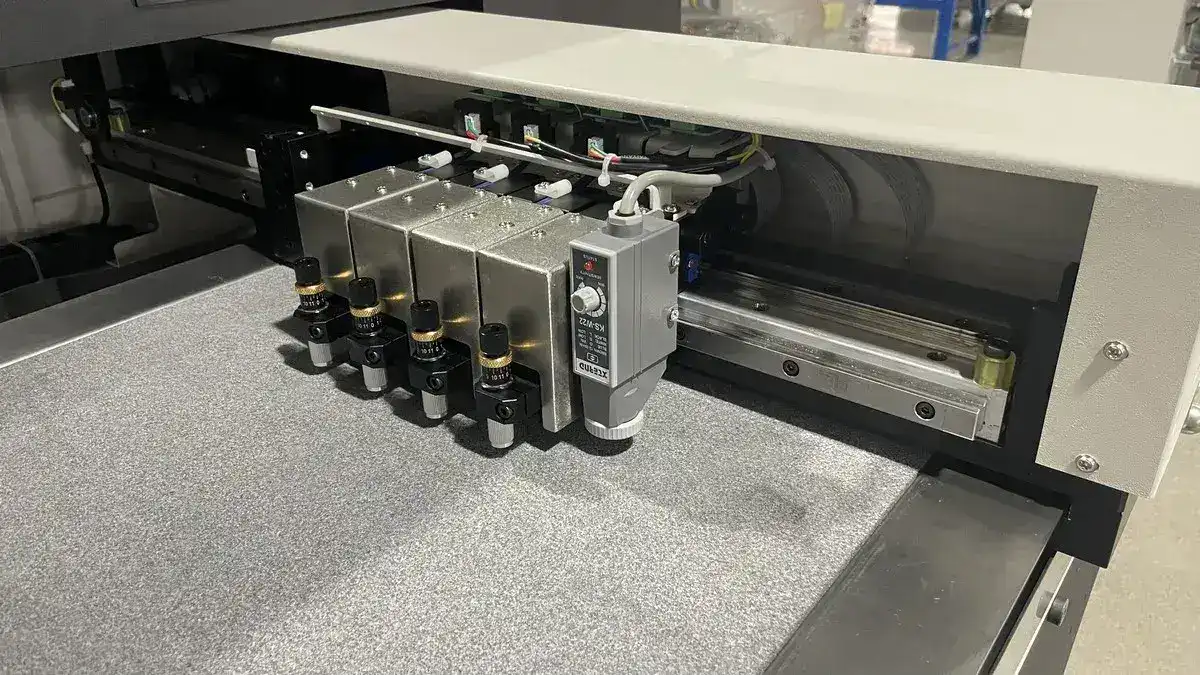

Four Die Cutting Heads with Automatic Distance AdjustmentFour die cutting heads allow the digital label finishing system to process multiple labels more efficiently, while automatic distance adjustment reduces manual setup for different label layouts.
-

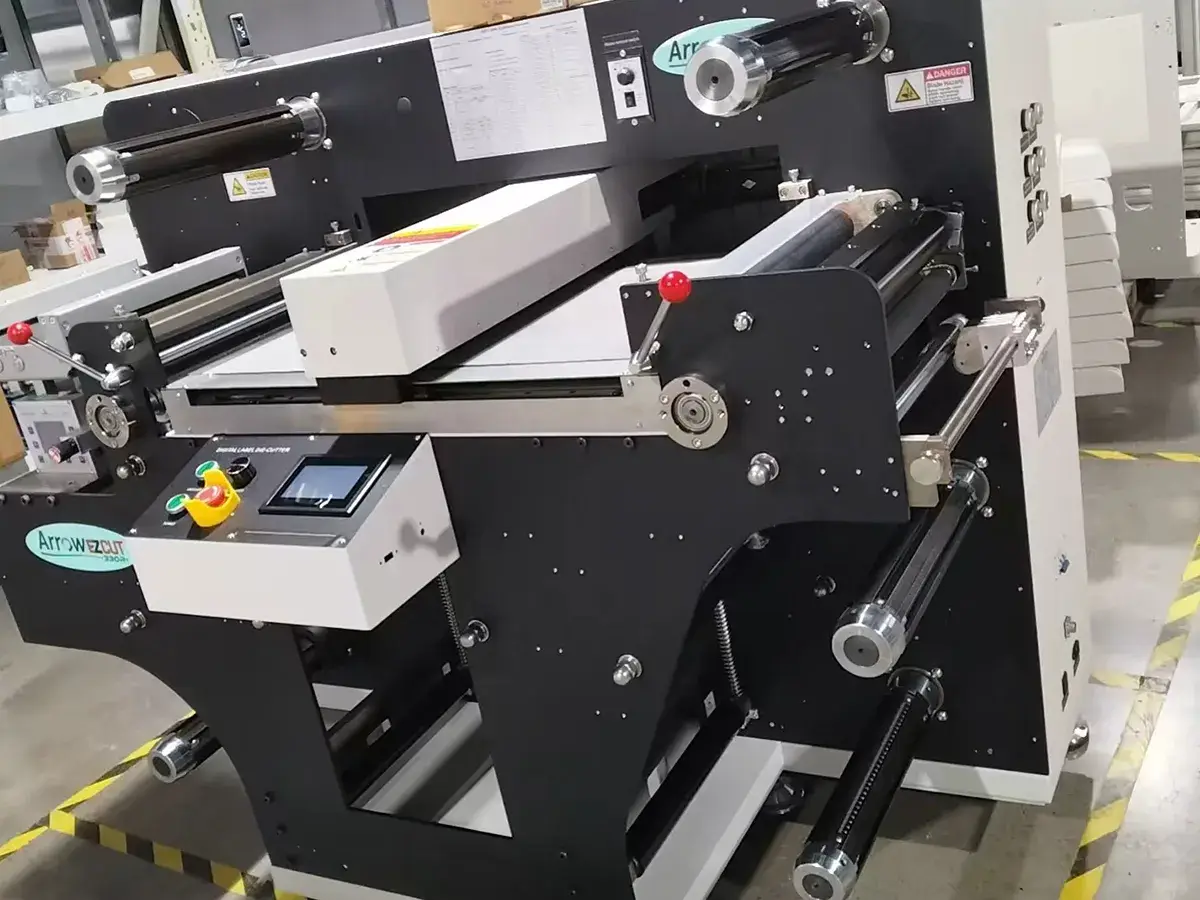

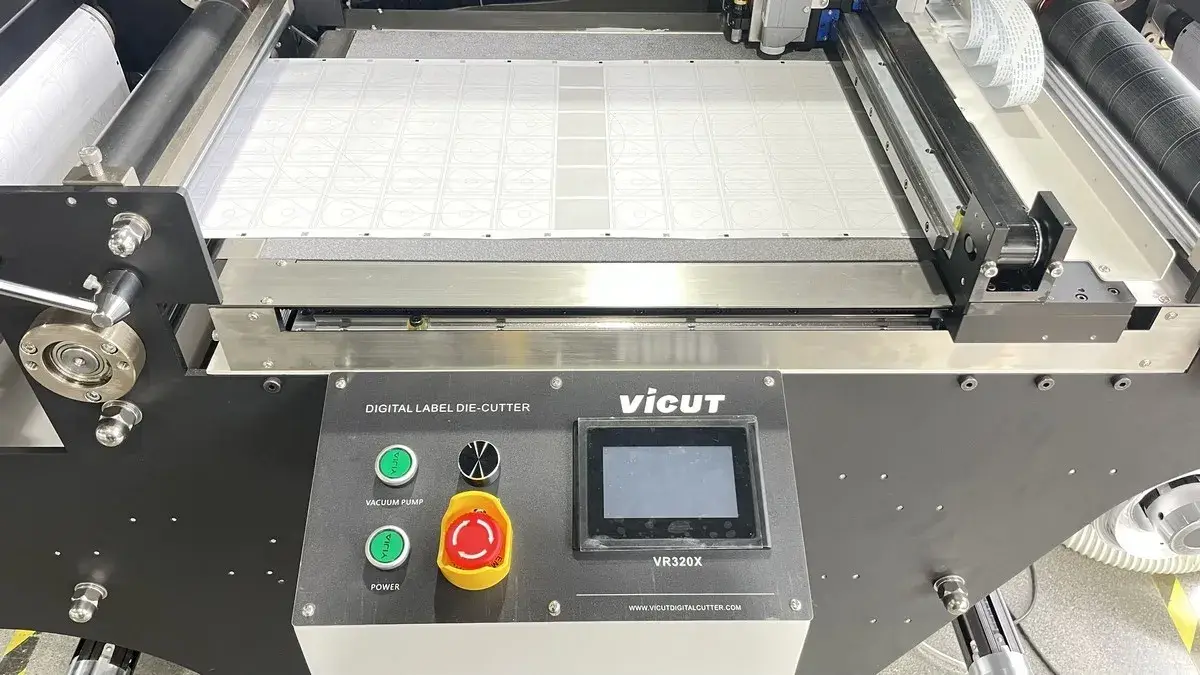

User-Friendly Operation PanelThe operation panel keeps daily control simple and clear, helping operators adjust production settings with less training time.
-

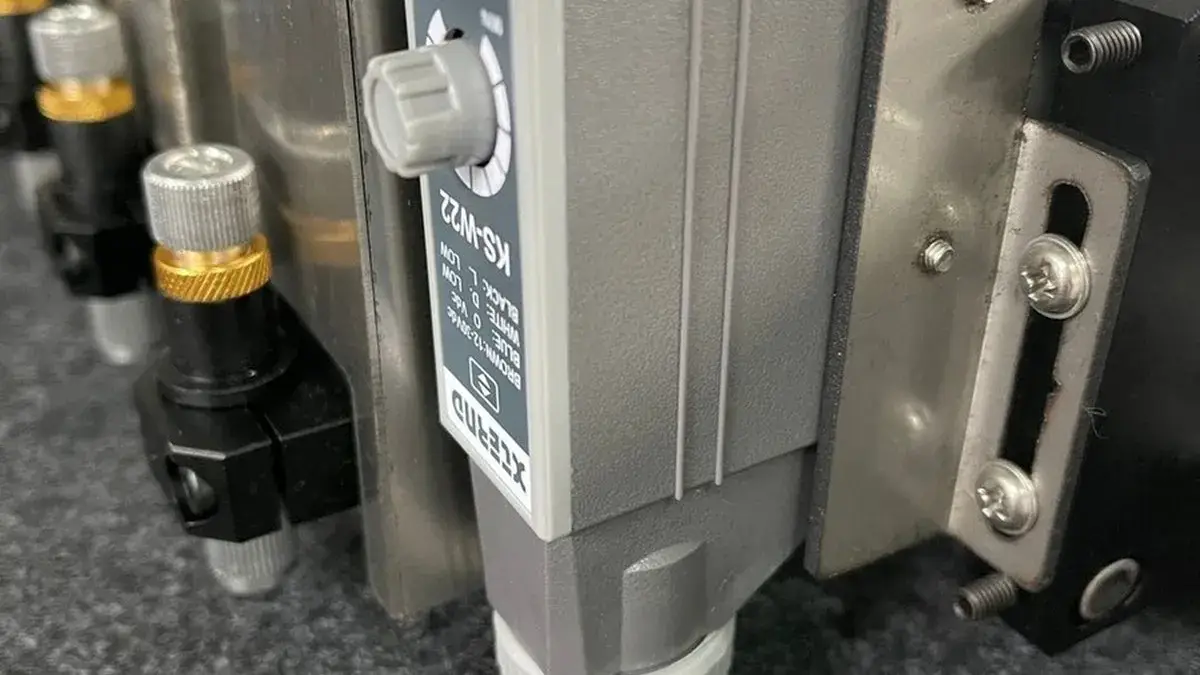

Digital Cutting Positioning SensorThe positioning sensor supports accurate label cutting by helping the system detect the cutting path and maintain consistent finishing quality.
-

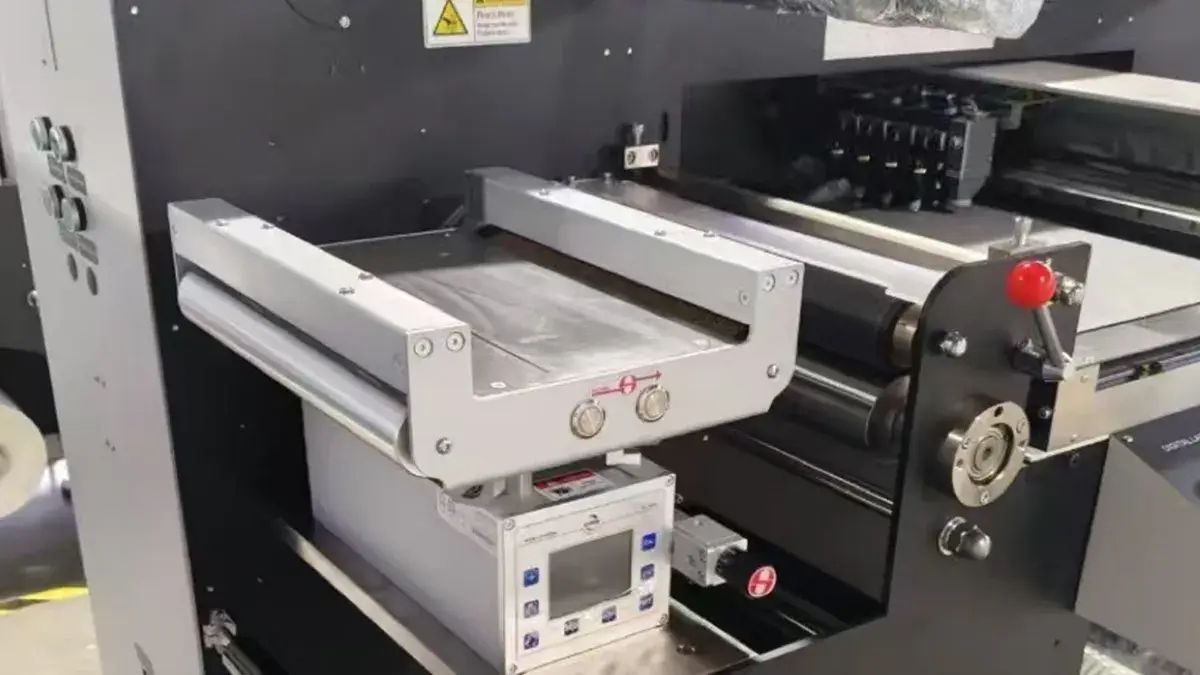

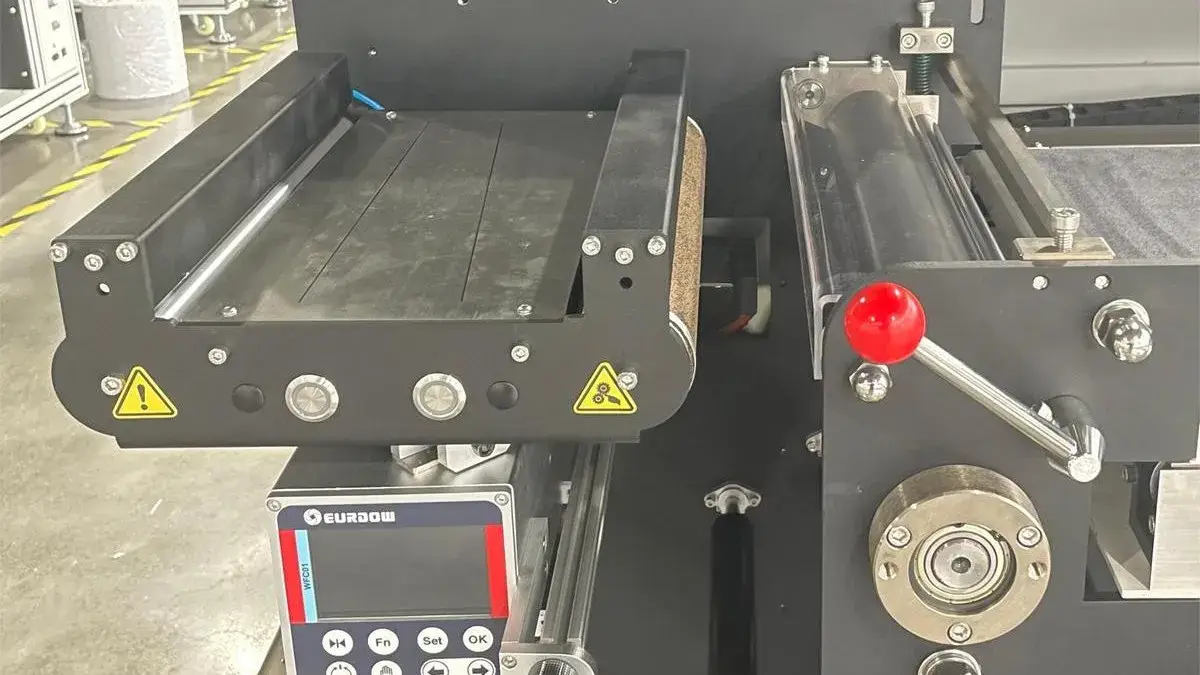

Automatic Web Guide Correction SystemThe web guide correction system helps keep roll media aligned during production, reducing material deviation and supporting smoother label finishing.
-
Automatic Cold LaminationCold lamination protects printed labels before die cutting, adding surface durability and a more professional finish to the final label rolls.
-

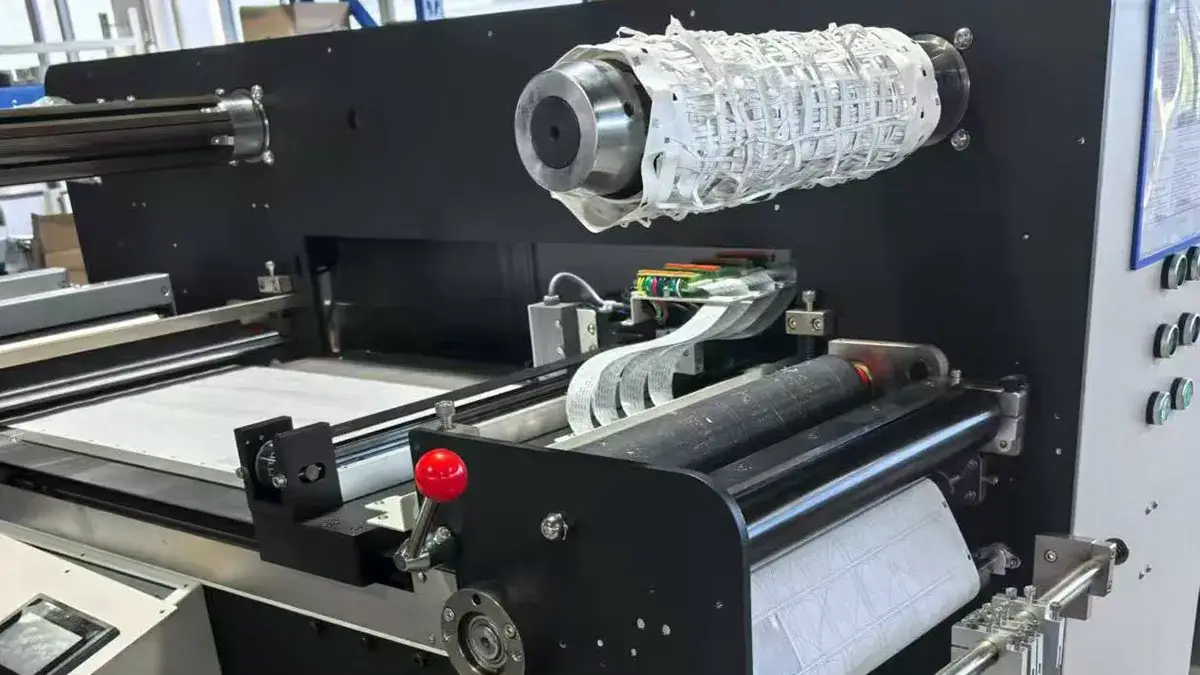

Automatic Waste Removal and Tension SystemThe waste removal and tension system keeps the material stable while removing unwanted matrix, reducing manual work and improving production flow.
-

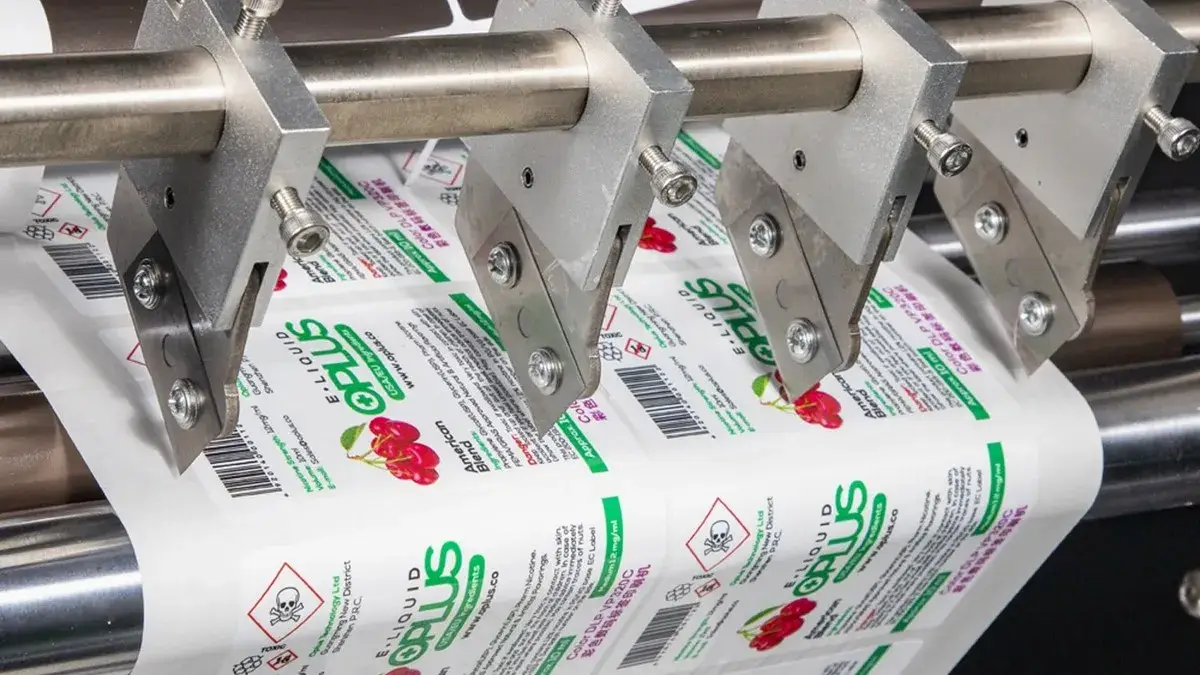

Slitting System with Up to 15 BladesThe slitting system can support up to 15 blades, allowing users to prepare multiple finished label rolls in the required widths after die cutting.
-

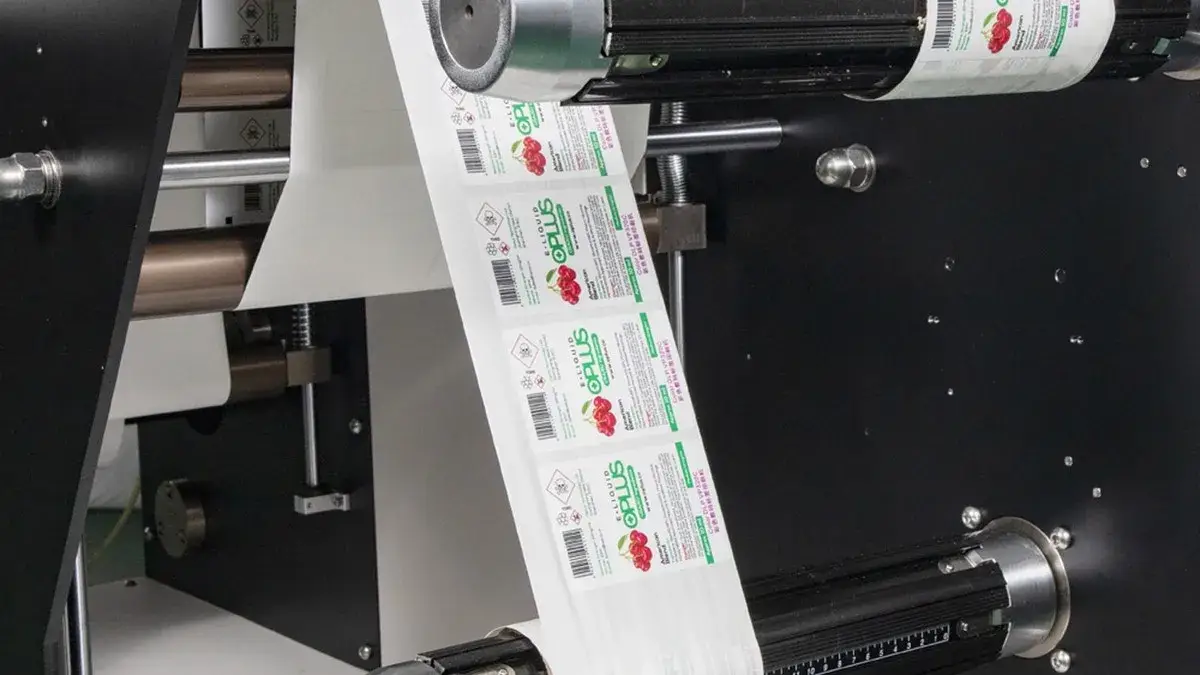

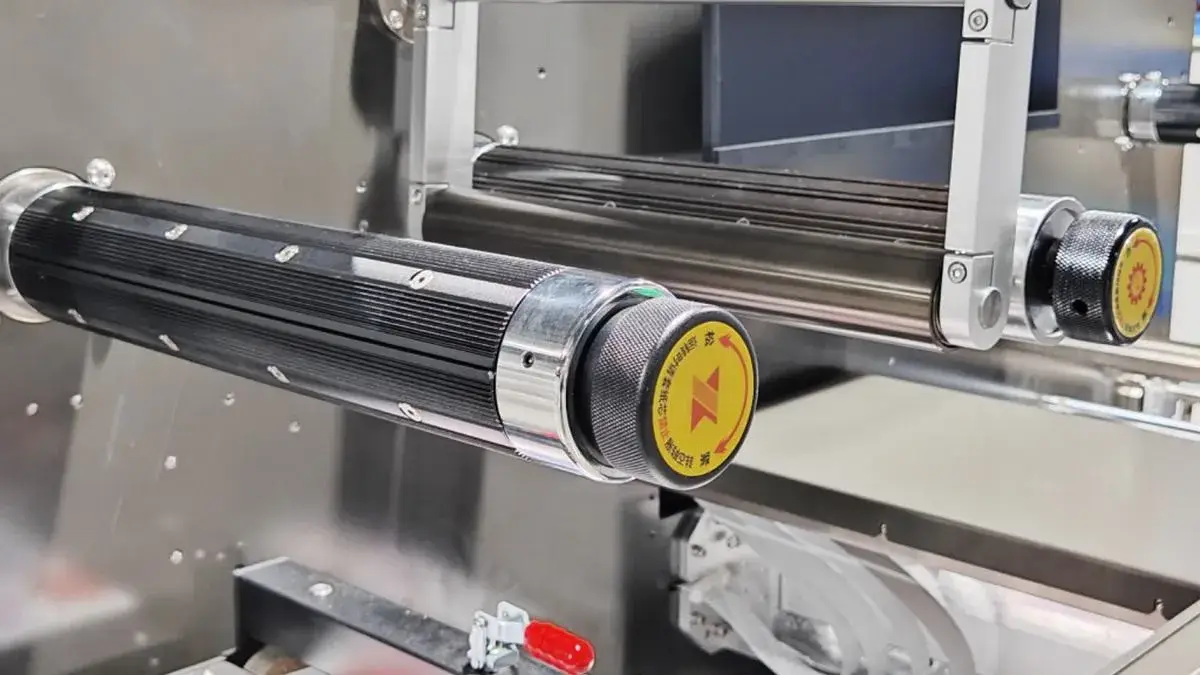

Dual Rewinding SystemSeparate upper and lower rewinding rollers collect multiple label rolls after slitting, making finished output cleaner and easier to handle.
-

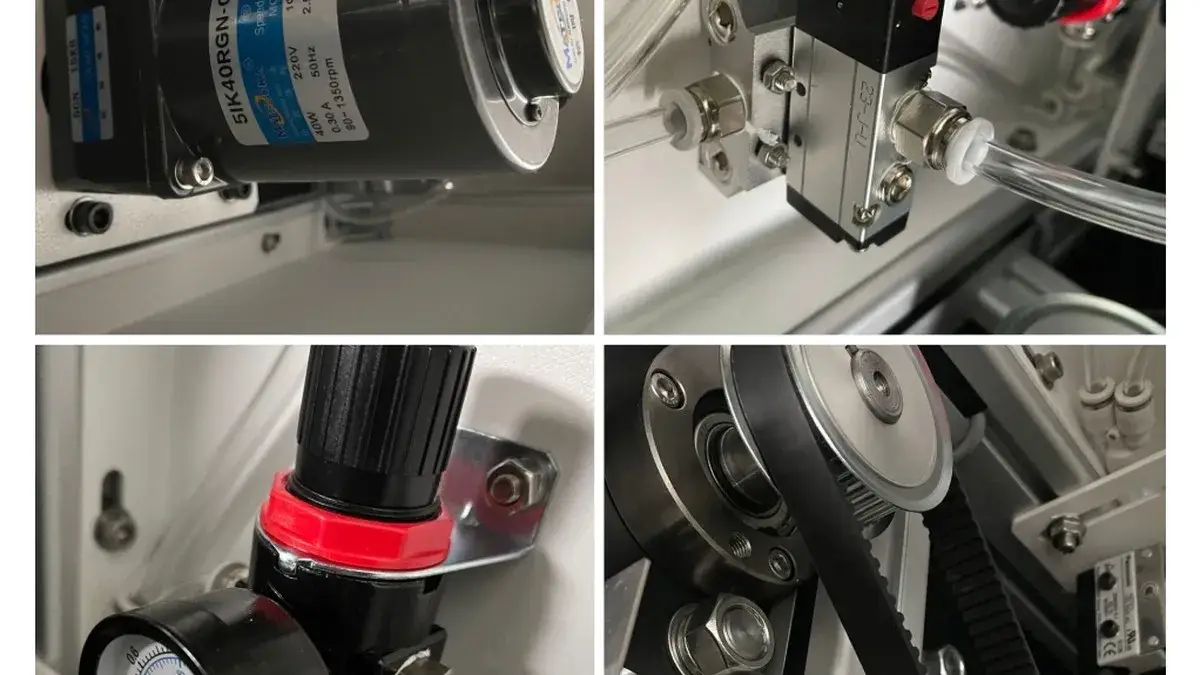

Quality ComponentsSelected high-quality components support stable long-term operation, helping users maintain reliable performance in daily production.
-
Optional Cold Laminating Liner SystemThe optional liner system handles laminating backing paper, making the lamination workflow cleaner and more suitable for higher-end label finishing.
-

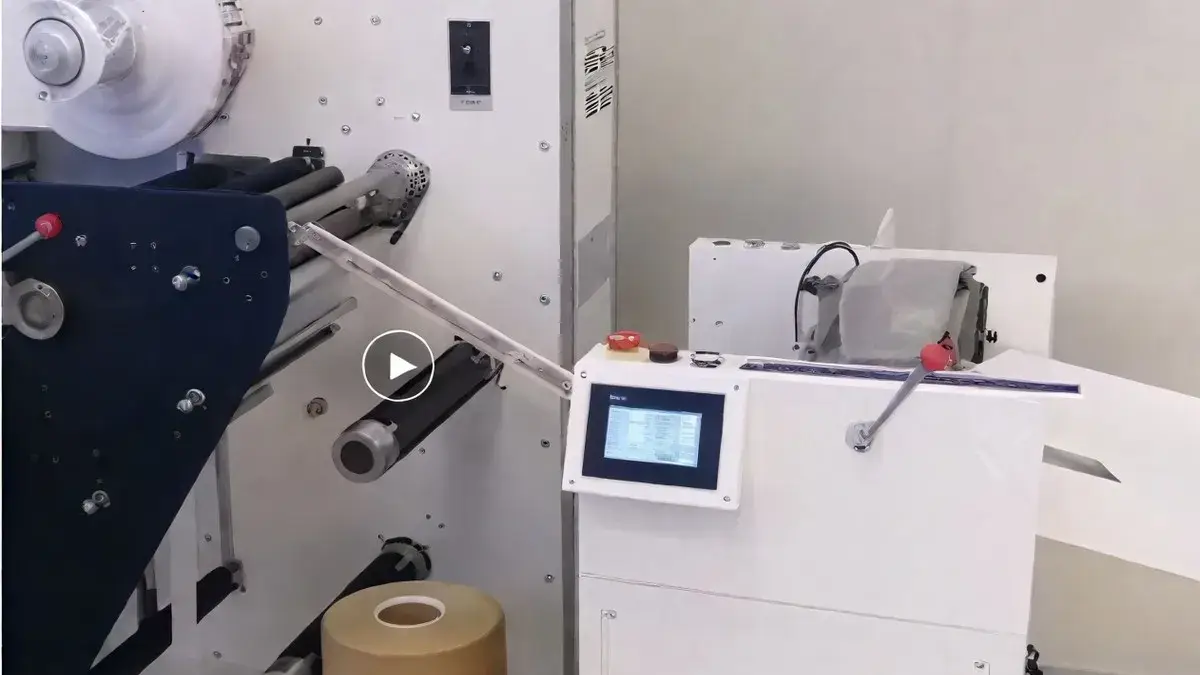

Optional RS350 Roll-to-Sheet CutterThe optional RS350 roll-to-sheet cutter allows users to convert roll media into sheets, adding more production flexibility for different order requirements.
