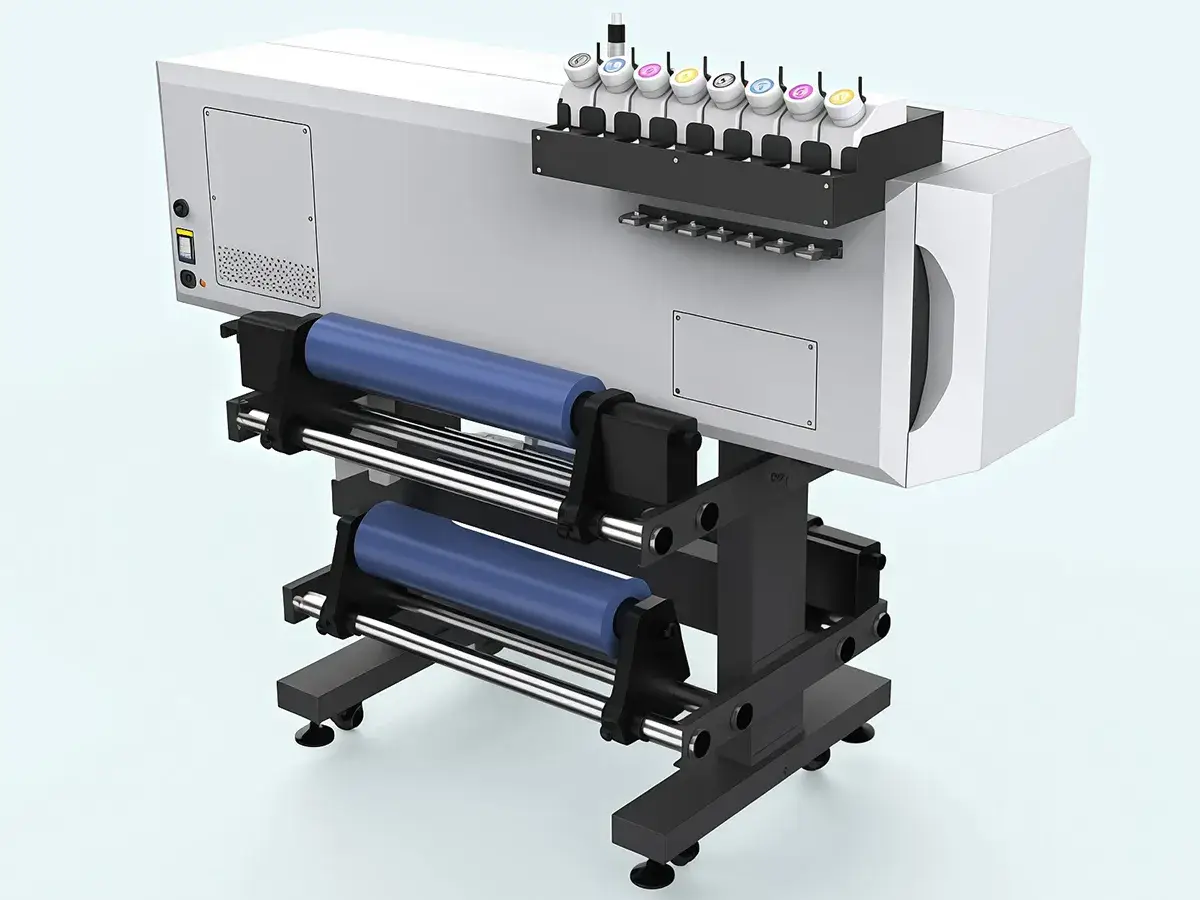

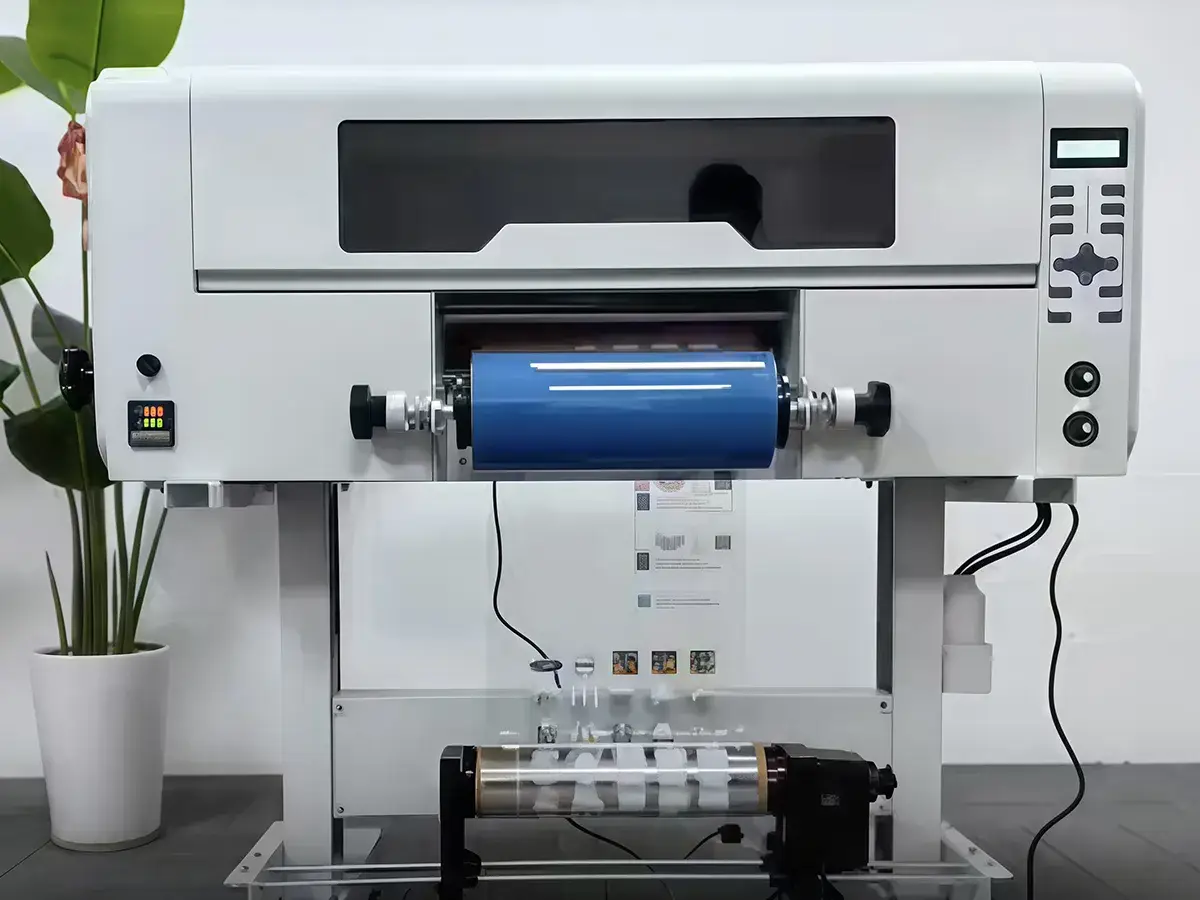

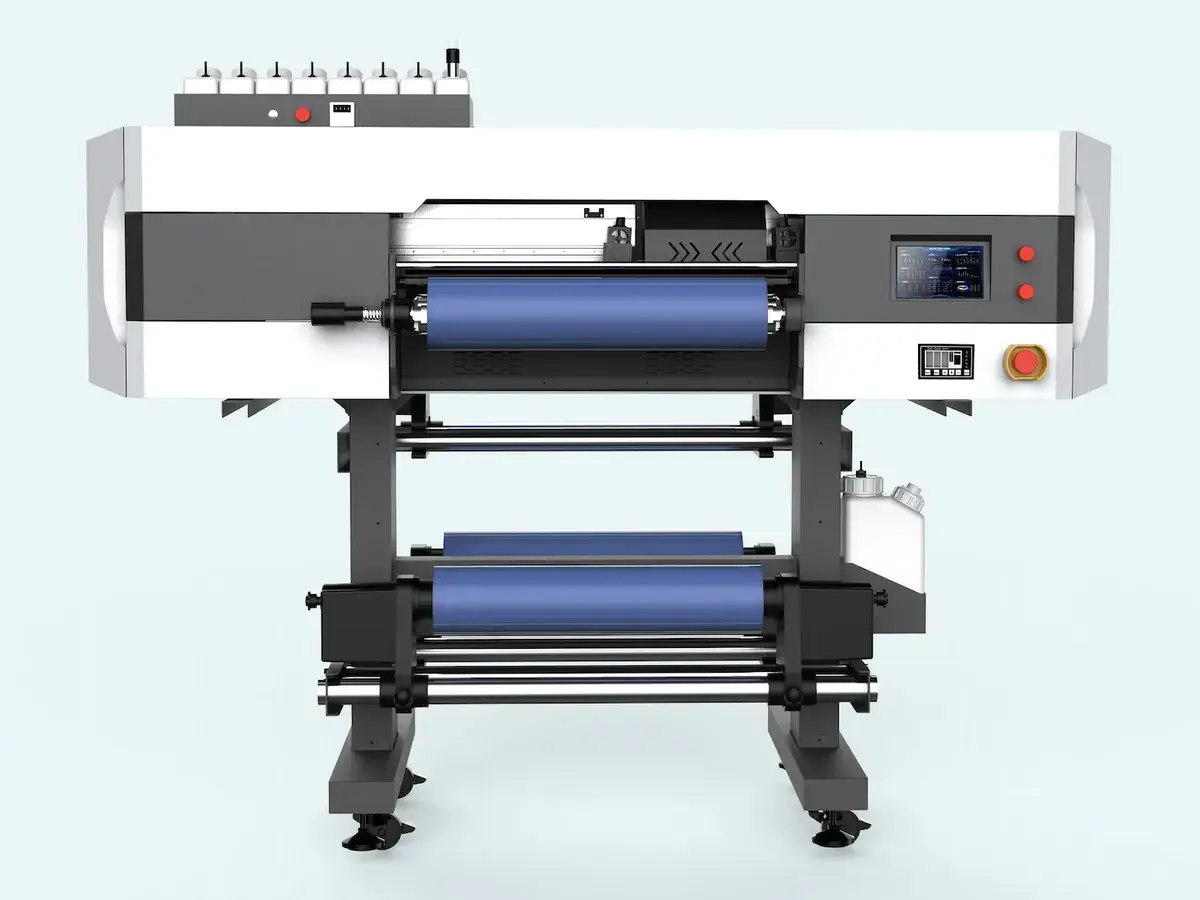

ViPrint U30/U60 UV DTF Printer

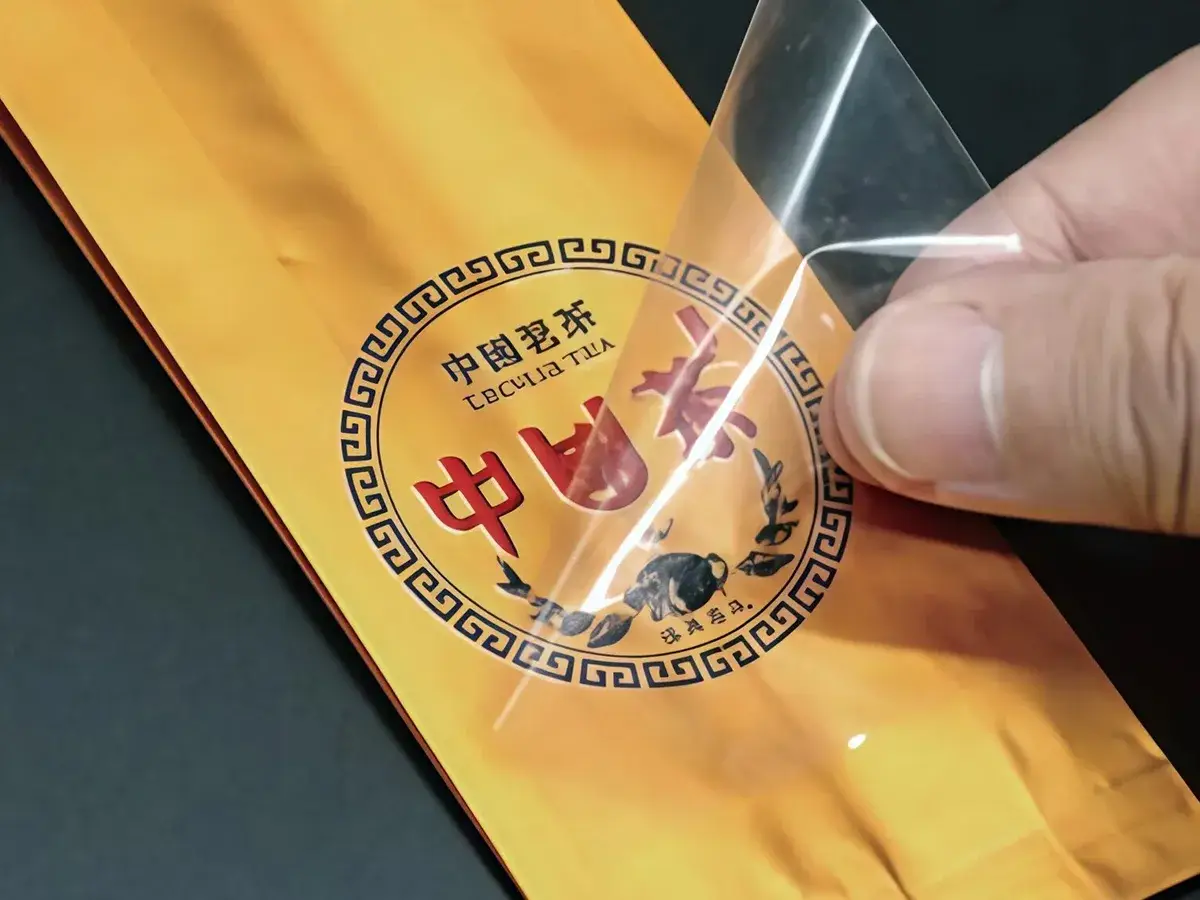

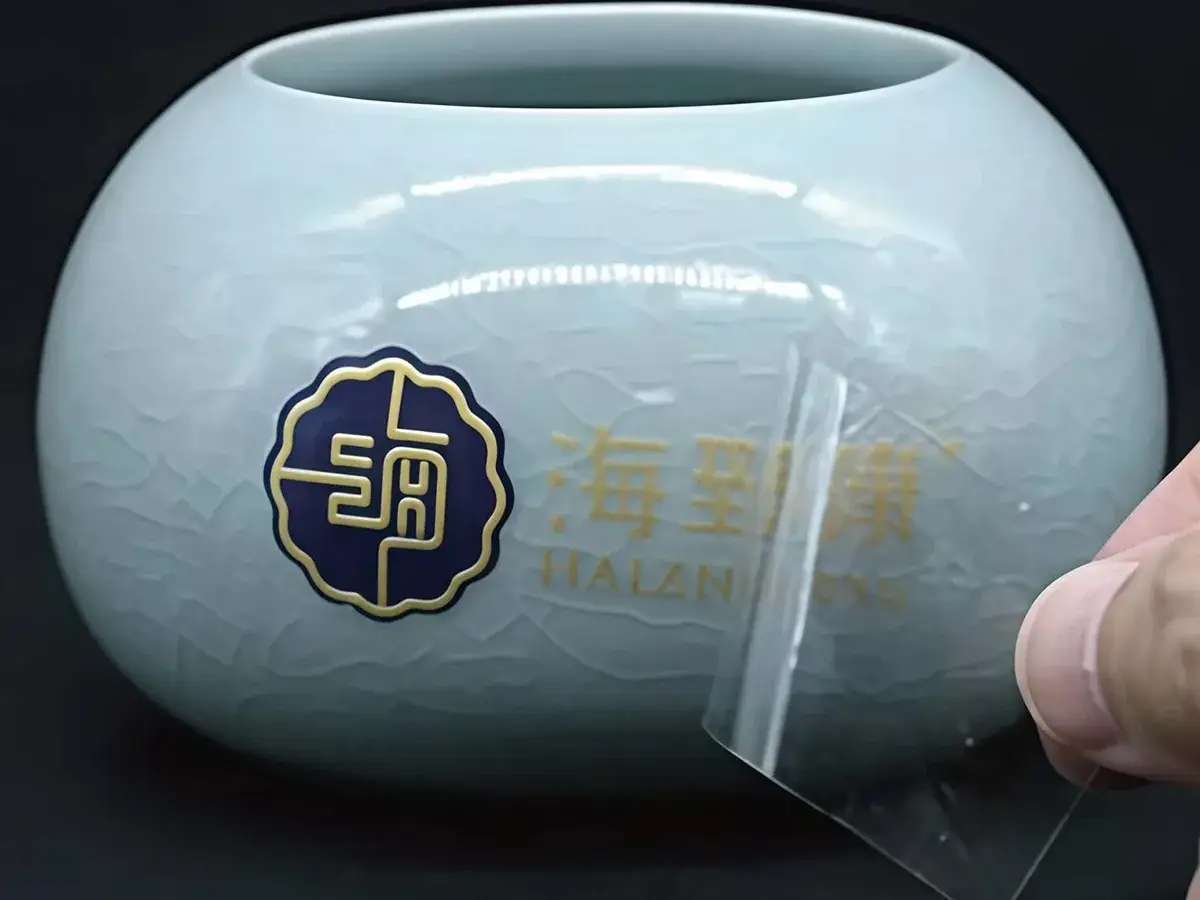

Custom decoration becomes easier when designs can be transferred cleanly onto curved, irregular, or hard-to-print surfaces. The UV DTF printer uses UV-LED digital inkjet technology to print patterns on PET coated adhesive film, creating crystal labels that can be peeled and transferred directly onto finished products.
Compared with regular stickers, UV DTF crystal labels offer a more refined appearance, better water resistance, and stronger scratch resistance. This makes the printer a practical choice for businesses that need attractive logos, decorative graphics, and customized product labels without direct printing on the object surface.
Available in 30 cm and 60 cm printing widths, the UV DTF printer supports continuous roll-to-roll production and is equipped with Epson i3200 U1 grayscale micro piezo printheads. It helps gift suppliers, packaging companies, signage shops, customization studios, and product manufacturers expand decoration options for both small-batch and regular production.

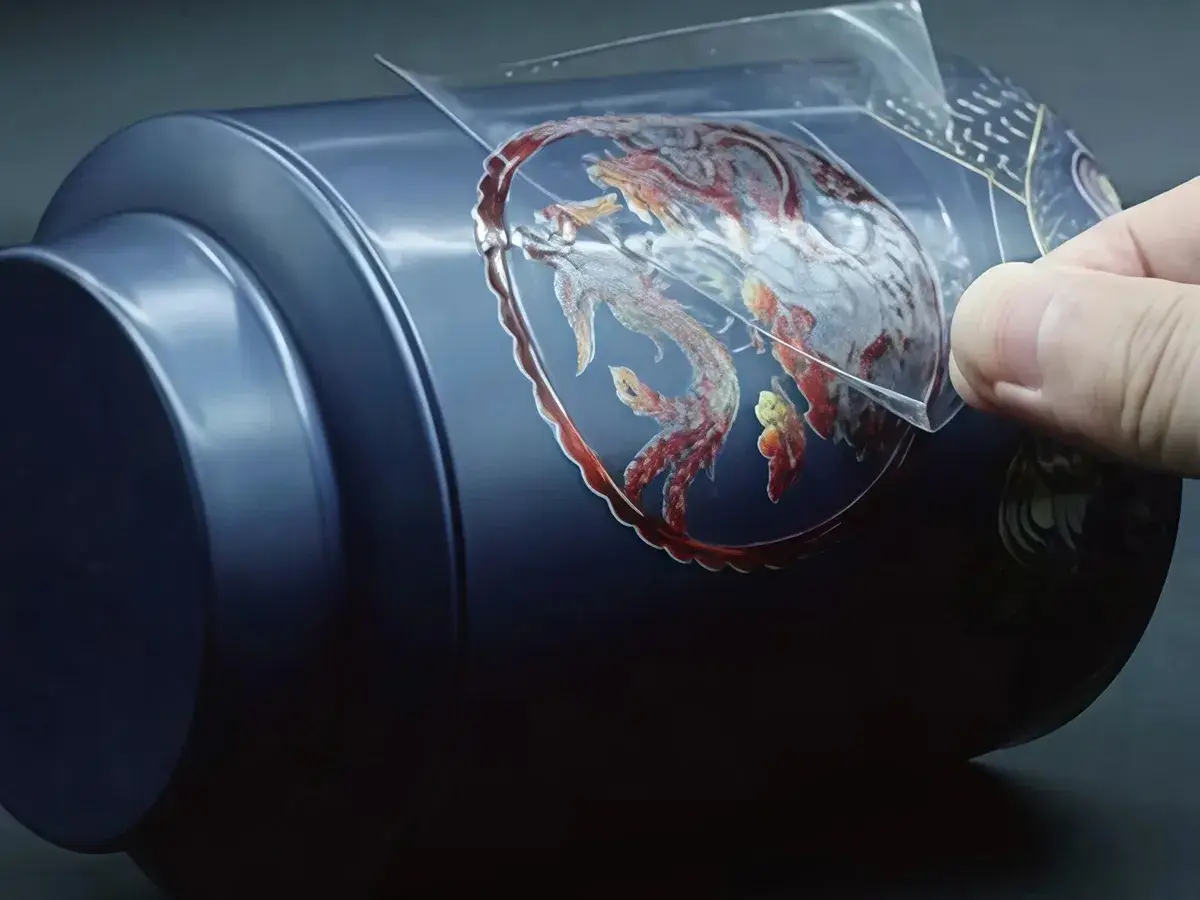

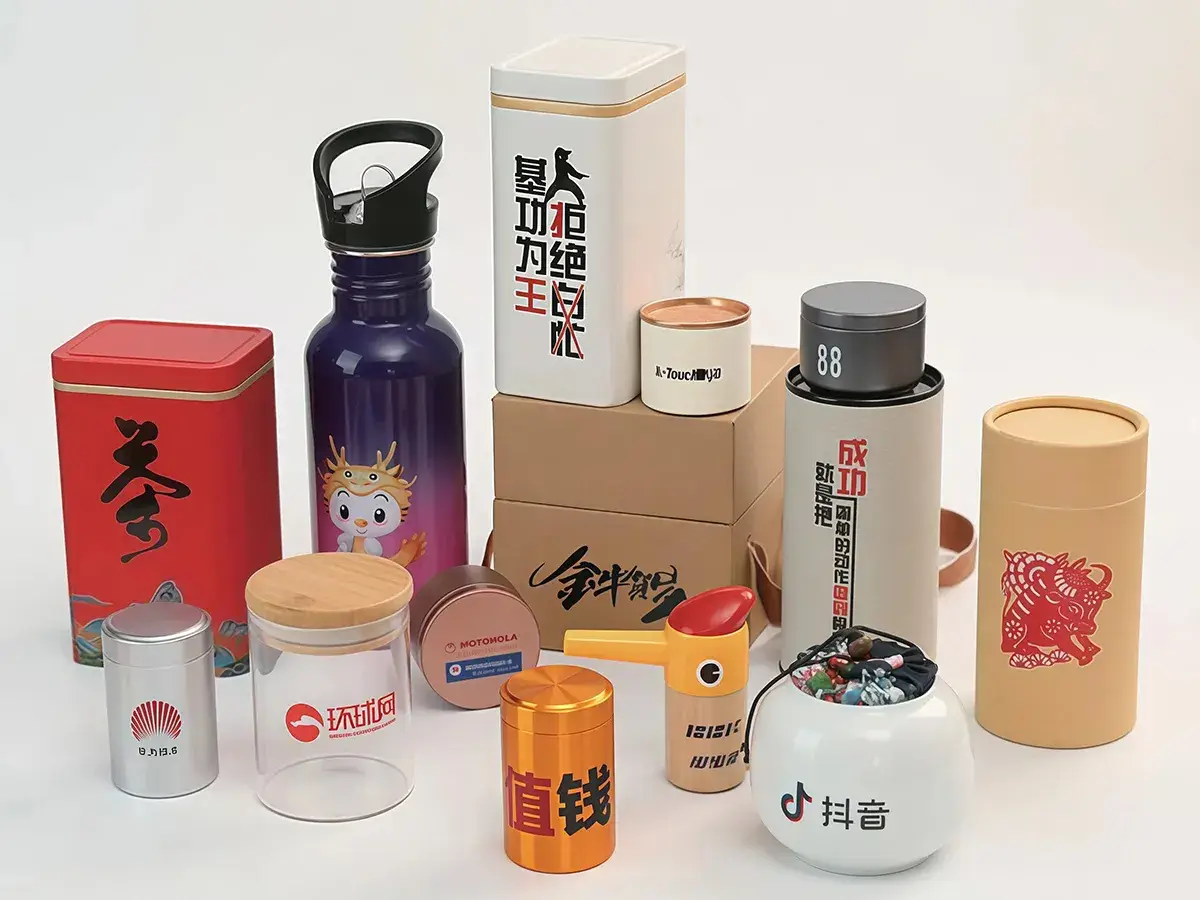

- Crystal Labels and Logos: Suitable for gift boxes, wine packages, tea cans, electronics, and cultural and creative products.
- Apparel and Textile Transfer: Can be used for T-shirts, hoodies, canvas bags, shoes, hats, and other customized textile products.
- Advertising and Signage: Supports vehicle graphics, wall decals, stickers, and light box graphics.
- Crafts and Custom Gifts: Suitable for mugs, phone cases, acrylic products, wood items, metal ornaments, and personalized gifts.
- Industrial and Architectural Decoration: Can be applied to metal sheets, glass, ceramic tiles, furniture, and appliance panels.
- Packaging Printing: Suitable for gift packaging, cartons, paper bags, and customized packaging patterns.
| Model | ||
| Print Head | EPSON i3200 U1 Grayscale Micro Piezo printhead | EPSON i3200 U1 Grayscale Micro Piezo printhead |
| Print Head Quantity | 2 units | 3 units |
| Max. Print Width | 30 cm | 60 cm |
| Print Thickness | 1–3 mm | 1–3 mm |
| Ink Type | Environment-friendly UV curing ink | Environment-friendly UV curing ink |
| Ink Colors | CMYK + Varnish | CMYK + Varnish |
| Control Software | RIIN Print and RIP (Optional: PhotoPrint) | RIIN Print and RIP (Optional: PhotoPrint) |
| Media Type | AB film, self-adhesive label, crystal label, photo paper, etc. | AB film, self-adhesive label, crystal label, photo paper, etc. |
| Media Vacuum System | Automatic control | Automatic control |
| Supported File Formats | TIFF, JPEG, PDF, EPS, PNG, AI, BMP, etc. | TIFF, JPEG, PDF, EPS, PNG, AI, BMP, etc. |
| Power Supply | 220 VAC, 50/60 Hz, 600 W | 220 VAC, 50/60 Hz, 600 W |
| System Requirements | Windows 10 (64-bit); Gigabit Ethernet | Windows 10 (64-bit); Gigabit Ethernet |
| Operating Environment | Temperature: 15 °C to 25 °C | Temperature: 15 °C to 25 °C |
| Weight (G.W. / N.W.) | 140 kg / 105 kg | 205 kg / 165 kg |
| Packing Dimensions (L × W × H) | 1.40 × 0.93 × 0.72 m | 1.70 × 0.95 × 0.80 m |
| Optional Accessories | Media take-up system | Media take-up system |
-

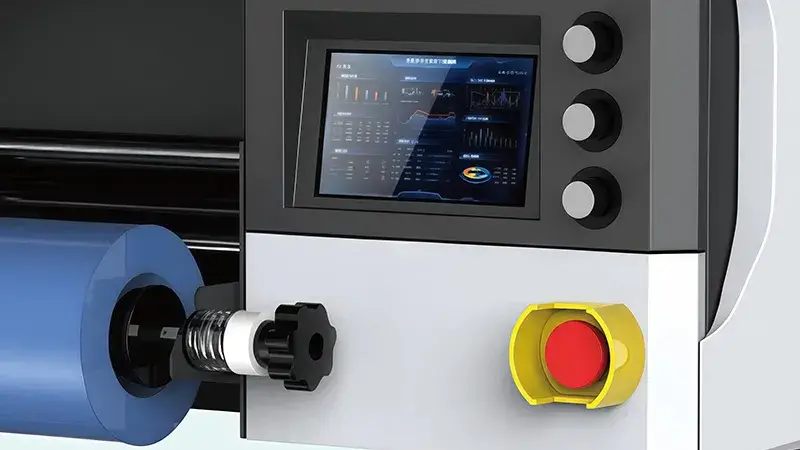

7-Inch Multifunction Touch Screen Control PanelThe 7-inch touch screen provides clear operation control, helping operators manage printing settings, media movement, and daily production more easily.
-
CMYK, White, and Varnish Ink CartridgesThe ink system supports CMYK, white, and varnish printing, allowing users to create vivid colors, opaque white layers, and glossy decorative effects for UV DTF crystal labels.
-

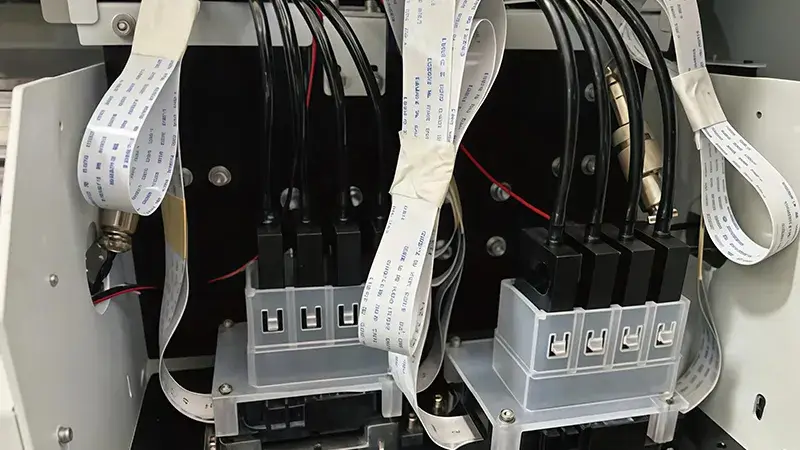

Epson i3200 U1 Grayscale Micro Piezo PrintheadThe Epson i3200 U1 grayscale micro piezo printhead supports stable, high-quality UV printing with fine detail and smooth color output.
-

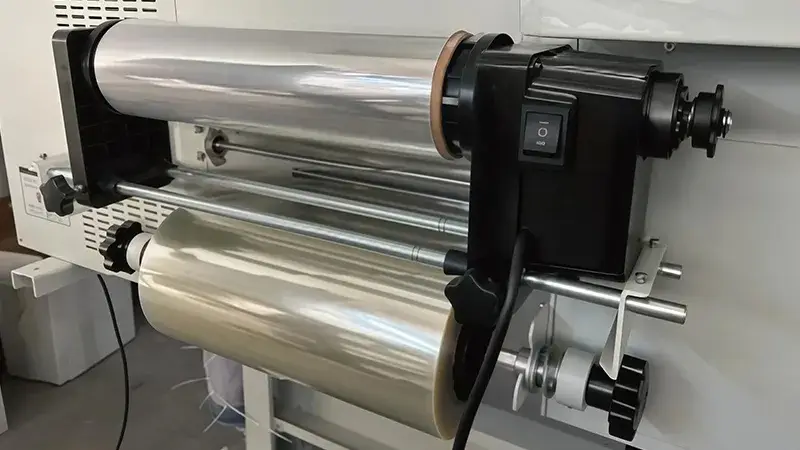

Media Unwinding StructureThe media unwinding structure supports continuous roll-to-roll feeding, helping users keep UV DTF label production smooth and efficient.
