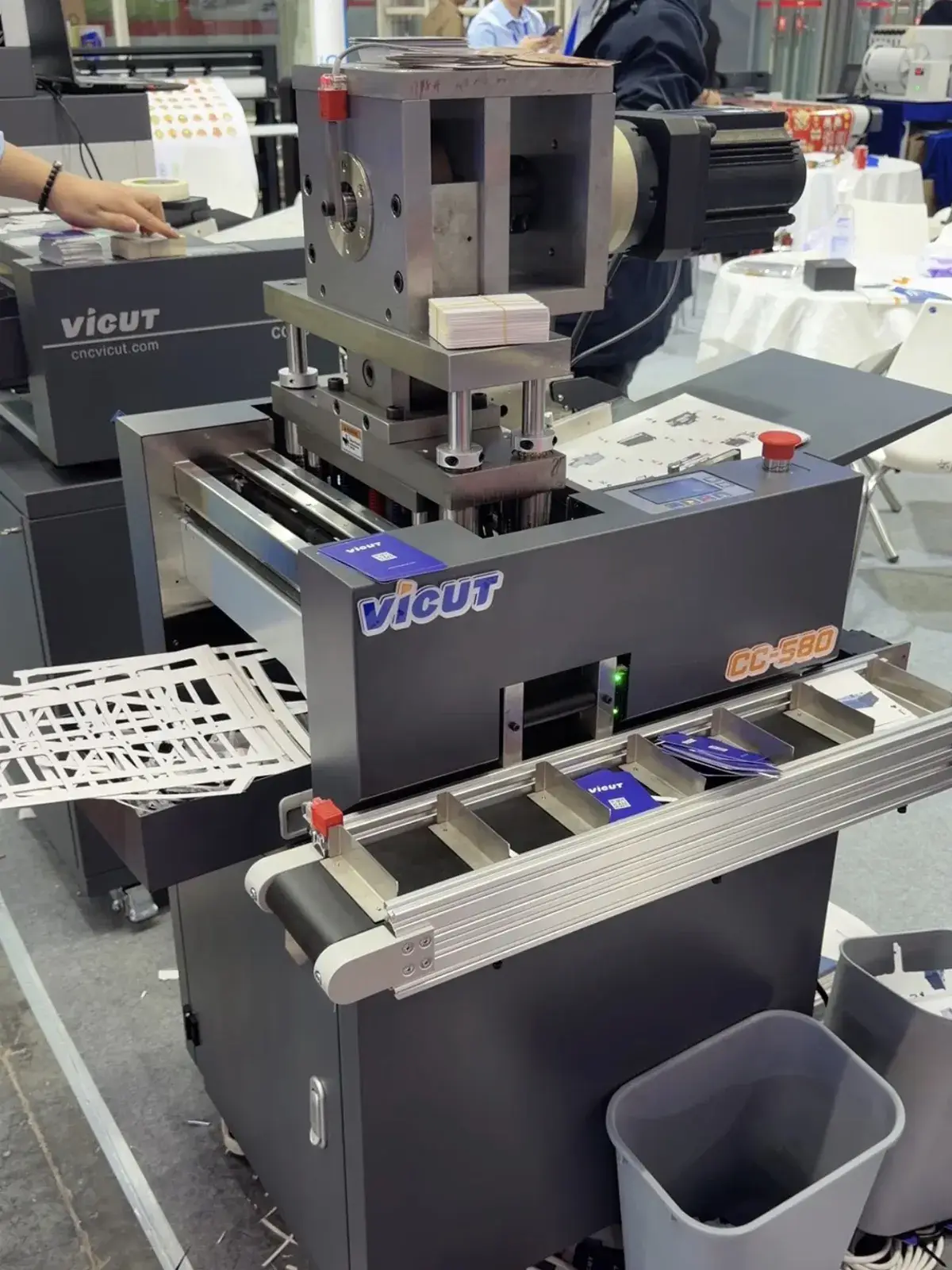

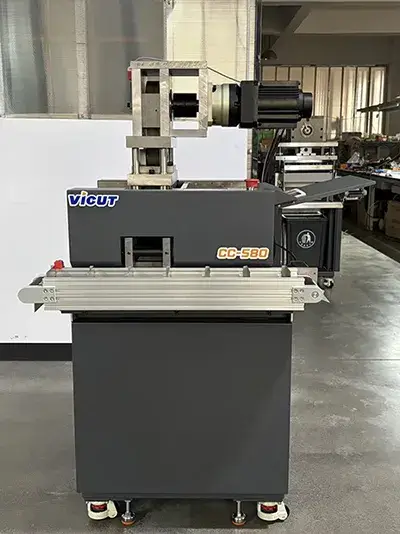

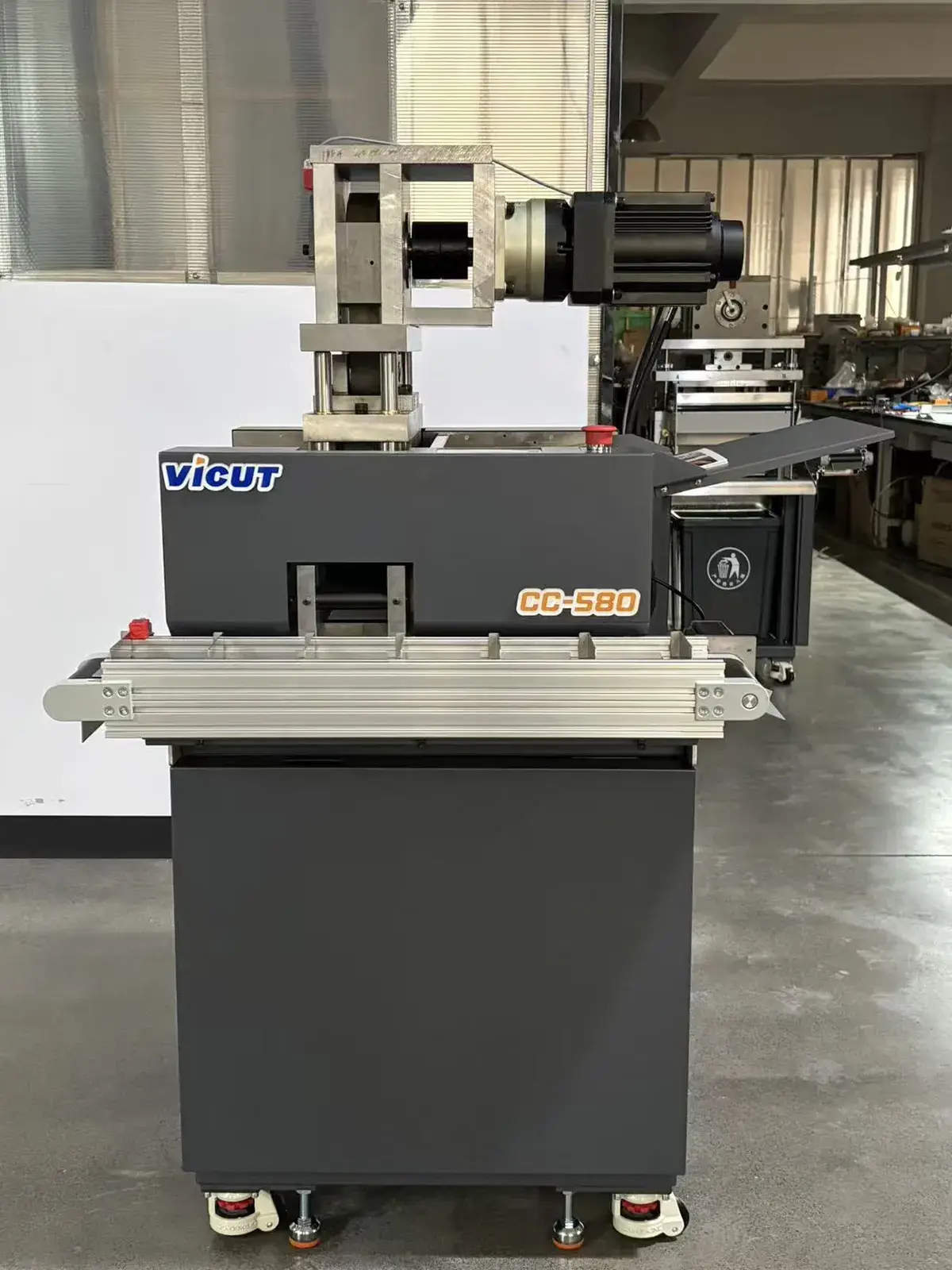

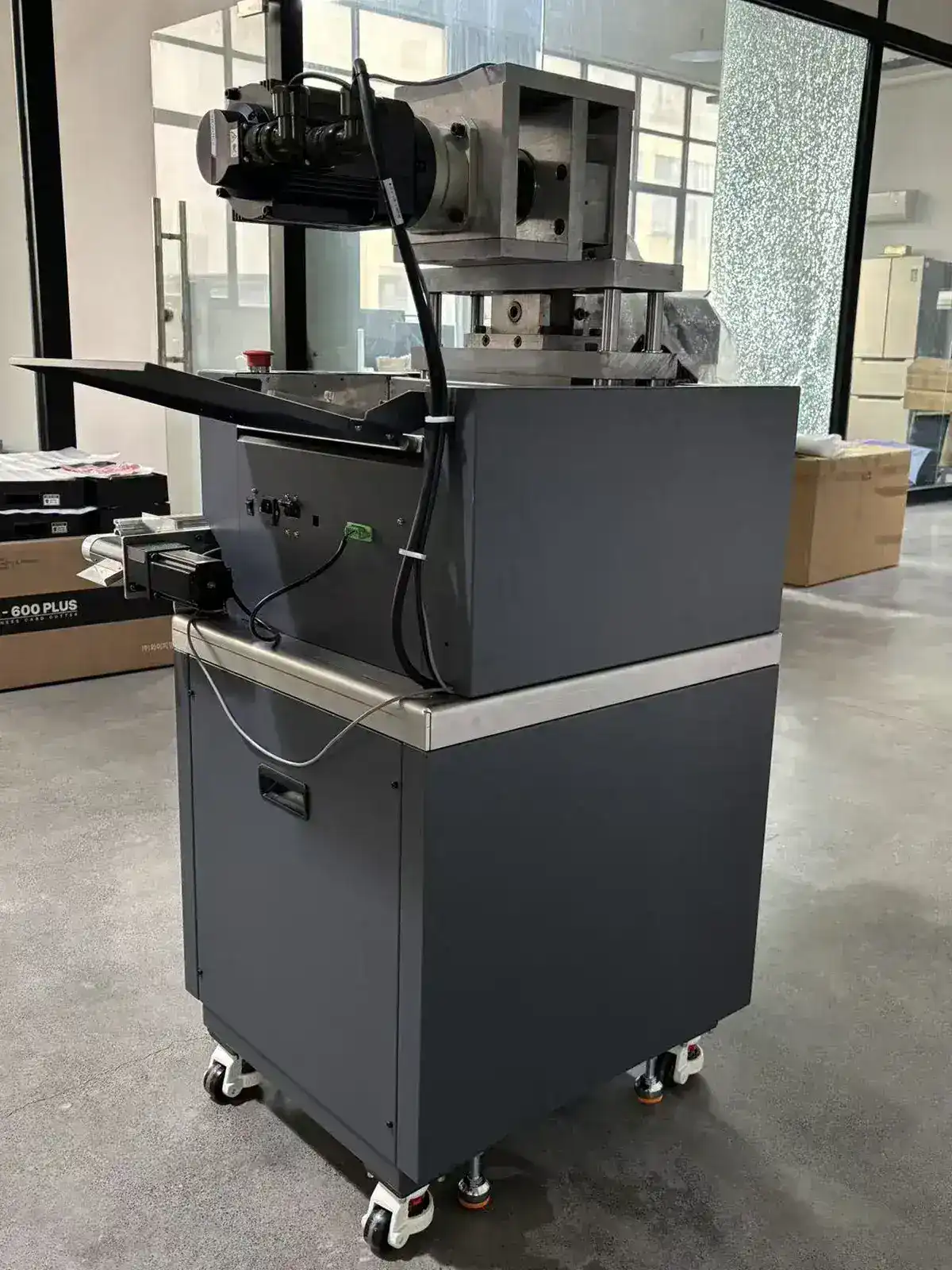

CC-580 Automatic DIY Mold Card Cutting Machine
Custom card production becomes easier when digital control, mold cutting, automatic feeding, and waste separation work together in one system. The automatic DIY mold cards cutting machine is designed for businesses that need flexible card shapes, clean cutting quality, and efficient production for small-to-medium customized orders.

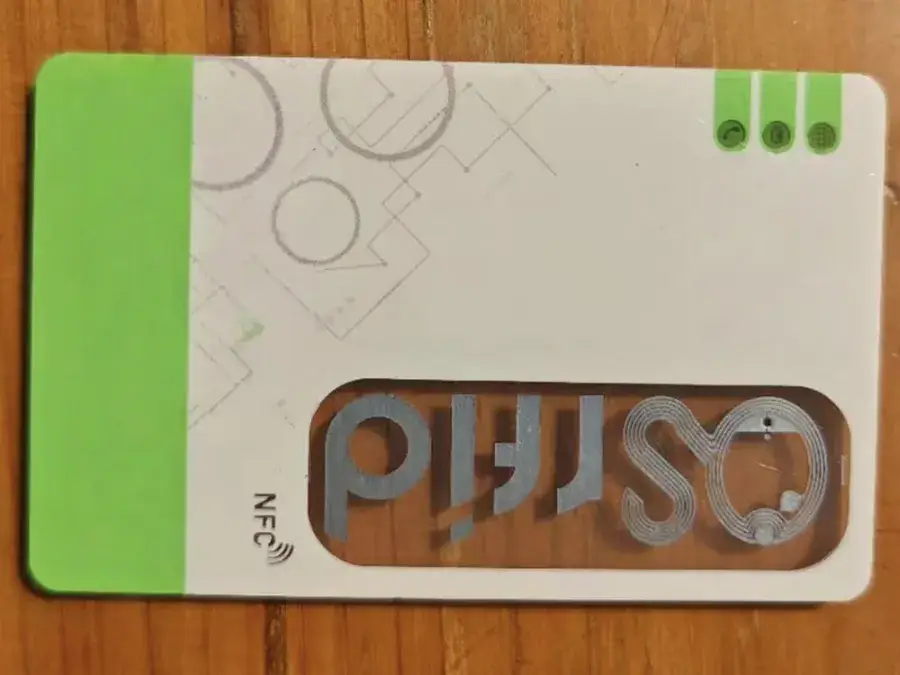

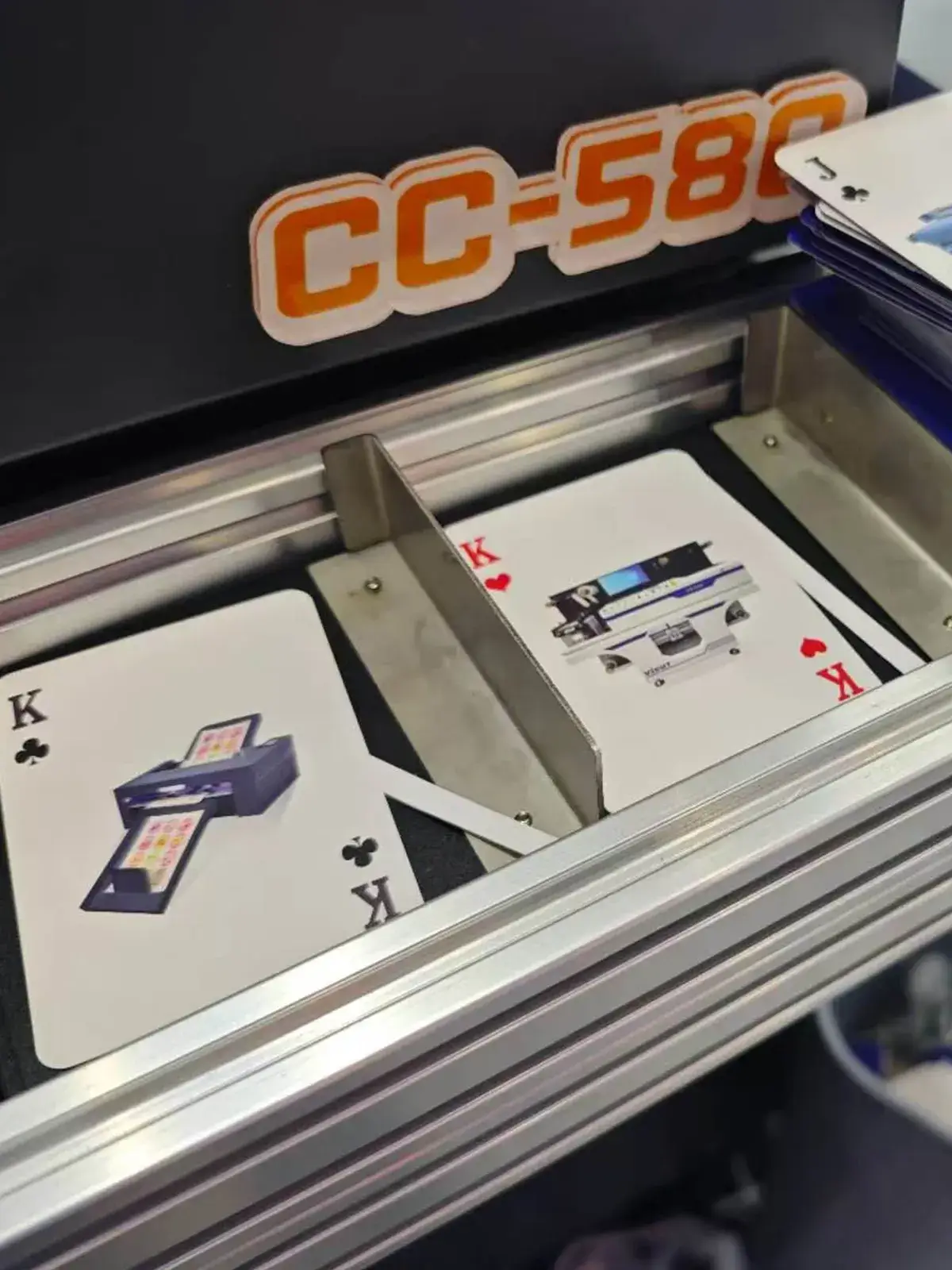

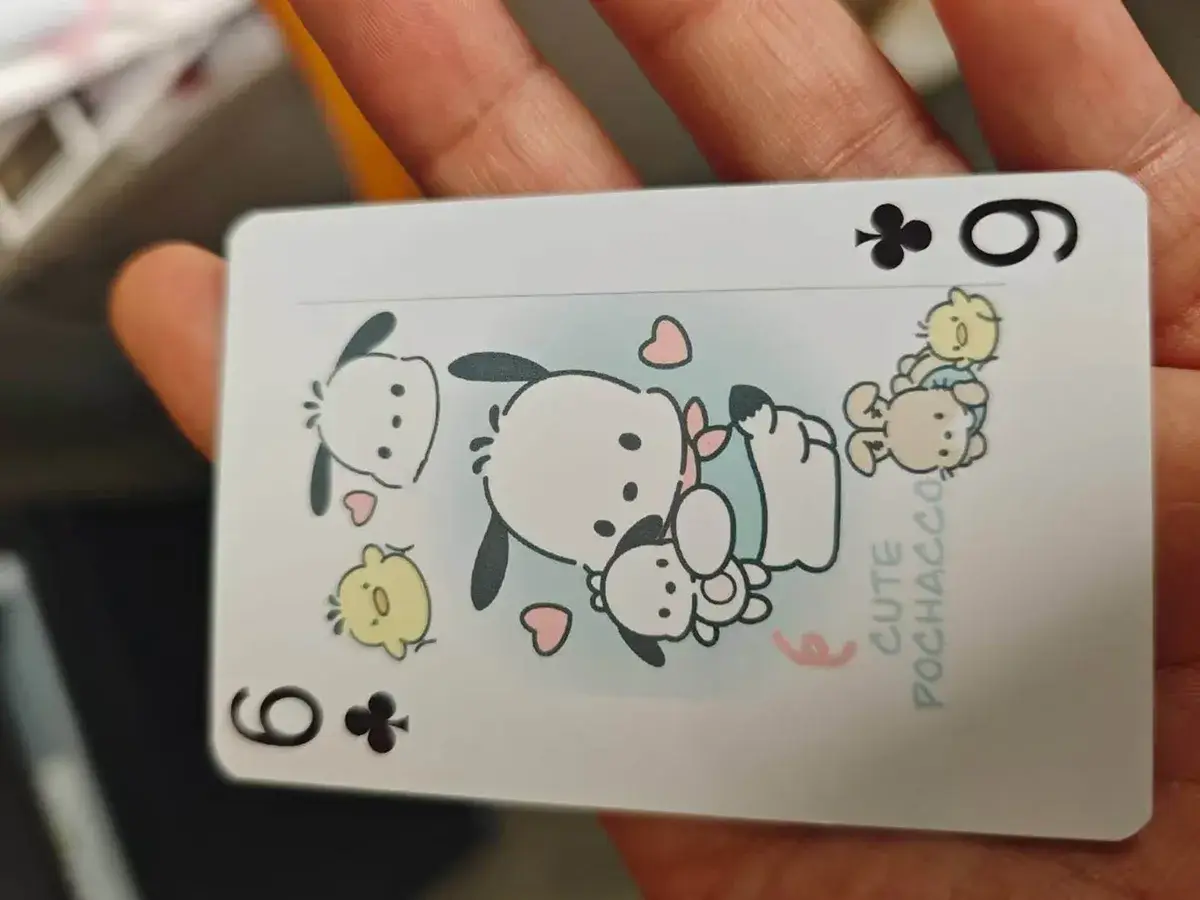

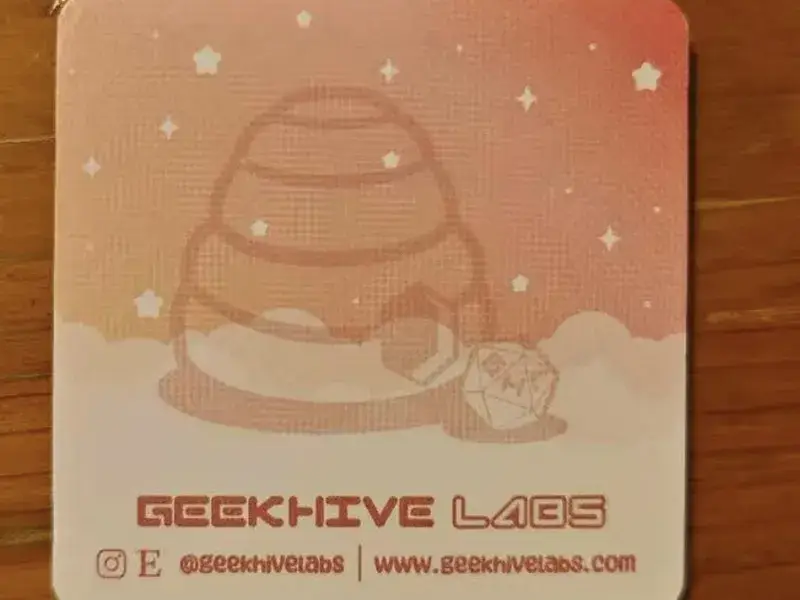

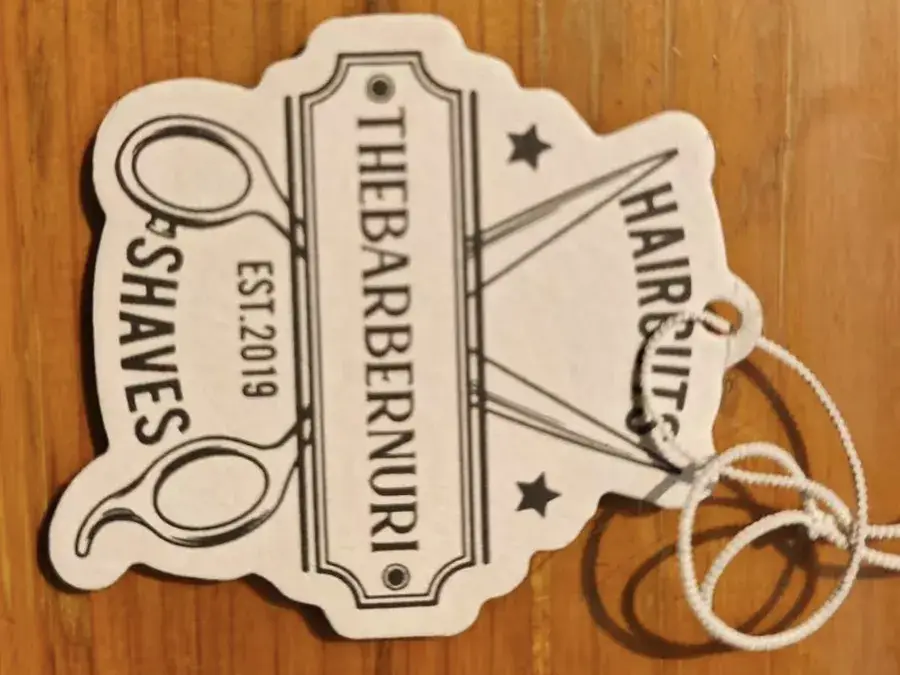

With custom card dies, automatic sheet feeding, and automatic separation of waste and finished products, the card cutting machine helps users produce rounded-corner cards, personalized business cards, tags, PVC cards, and other custom card products more efficiently.
Supporting material thickness up to 1000 gsm, the automatic DIY mold cards cutting machine gives print shops, card producers, and customization businesses more freedom to handle thicker materials and higher-value card applications without relying only on standard cutting formats.
| Supported Media Size | A4, A4+, or 195–216 × 279–297 mm | A3, A3+, SRA3, or 297–320 × 420–480 mm |
| Longitudinal Cutting Size | 89 / 85 / 90 / 95 mm (or customized) | 89 / 85 / 90 / 95 mm (or customized) |
| Horizontal Cutting Size | 45 / 50 / 54 mm, or 3–600 mm (or customized) | 45 / 50 / 54 mm, or 3–600 mm (or customized) |
| Cutting Method | Custom die-cutting mold | Custom die-cutting mold |
| Positioning Control | Front edge detection / Registration mark sensing | Front edge detection / Registration mark sensing |
| Feeding Mechanism | Dual-roller auto-feeding tray | Dual-roller auto-feeding tray |
| Tray Capacity | 30 mm (85 sheets of 350 gsm) | 30 mm (85 sheets of 350 gsm) |
| Media Weight | 180–1000 gsm | 180–1000 gsm |
| Max. Cutting Speed | Up to 180 cards/min | Up to 180 cards/min |
| Presetting Software | Supported | Supported |
| Cutting Mold / Cassette | Replaceable custom mold (2-min changeover) | Replaceable custom mold (2-min changeover) |
| Cabinet Stand | Included | Included |
| Cutting Tolerance | ±0.2 mm | ±0.2 mm |
| Operating Humidity | 35%–70% RH | 35%–70% RH |
| Operating Temperature | -15°C to 40°C | -15°C to 40°C |
| Power Supply | 110–220 VAC, 50/60 Hz, 0.5 A | 110–220 VAC, 50/60 Hz, 0.5 A |
| Gross / Net Weight | 220–260 kg / 180–220 kg | 220–260 kg / 180–220 kg |
| Machine Dimensions (L×W×H) | 70 × 75 × 130 cm | 70 × 75 × 130 cm |
| Package Dimensions (L×W×H) | 64 × 83 × 160 cm | 64 × 83 × 160 cm |
- Fully Automatic Card Cutting Process
The automatic sheet feeding system supports a fully automated card cutting workflow, helping users reduce manual handling and process custom card orders more efficiently.
- Automatic Cutting Count Memory
The control system records and stores cutting counts, making it easier to monitor blade usage and plan maintenance at the right time.
- Fast Cutting Speed
The card cutting machine can cut up to 180 cards per minute, supporting efficient production for small-to-medium custom card orders.
- Cuts Materials up to 1000 gsm
The card cutter can process CCP paper up to 1000 gsm without reducing blade sharpness or cutting speed, making it suitable for thicker and higher-value card products.
- Customized Cutting Size

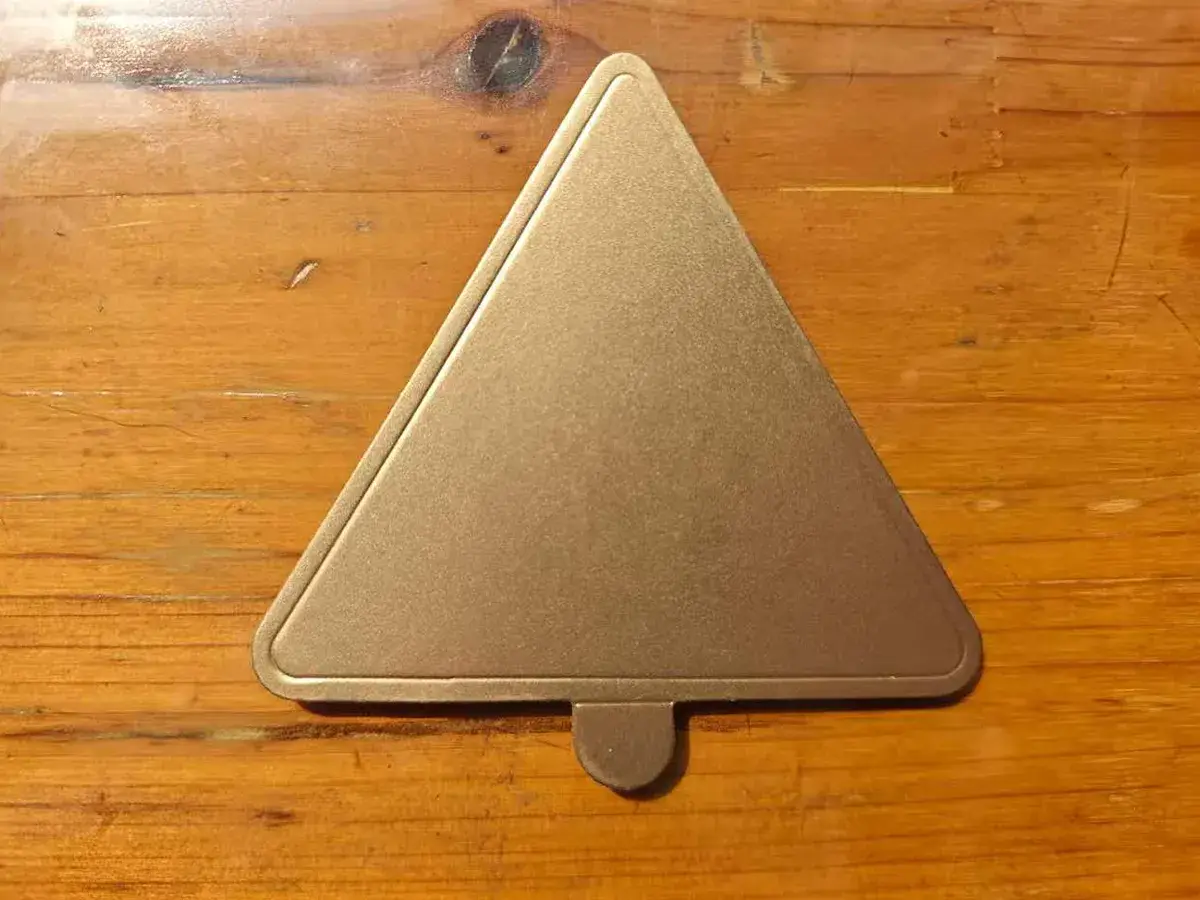

The interchangeable cutting mold allows users to customize card sizes according to different order requirements, expanding production flexibility for personalized cards, tags, and PVC cards.
- Wide Sheet Size Compatibility
The card cutter supports A4, A4+, A3, A3+, SRA3, and sheet sizes from 297–320 mm × 420–480 mm, helping users produce different business card sizes for global market needs.
- Simple and Safe Operation
The built-in cutting mold design reduces safety risks. Once the sheets are ready, operators can start cutting with one click, making the machine easy to use even for beginners.
- Efficient and Stable Cutting System
Self-sharpening cutting blades require no routine maintenance, supporting stable long-term performance during repeated card cutting jobs.
- Image Shift Compensation
Cutting mark registration compensates for offset caused by printing errors or sheet placement deviation, helping maintain accurate cutting results.
